The MT1020 is an affordable handheld dual-channel digital phosphor oscilloscope featuring a versatile two-in-one design with an integrated signal generator. Experience real-time signal analysis with a 500MSPS sampling rate and a broad analogue bandwidth of 180MHz. The device boasts a high-contrast 2.8-inch IPS full-vision LCD screen, enhanced by digital fluorescent technology for a crisp waveform display. The grayscale and colour temperature options provide a visually dynamic experience. Benefit from a rapid waveform refresh rate of up to 50000wfm/s, facilitating the identification of low-probability abnormal signals. The ZOOM time base simplifies the analysis of digital protocol signals, while the vertical sensitivity as low as 5mV ensures accurate measurement of small 5mVPP signals. The oscilloscope’s ultra-high signal-to-noise ratio, sealed shielding, and stable circuit feedback design deliver a clean and clear waveform. Explore advanced features such as adjustable automatic bandwidth limit, adaptive trigger suppression, and digital trigger technology with precise signal capture capabilities. The DDS signal generator offers 14 function signal waveforms, including a customizable chopping waveform. Achieve frequencies up to 20MHz for sine waves and 10MHz for other waveforms. Store up to 500 customized signals with the original chopping output function. Select from three-time base modes—YT, XY, and rolling—and employ manual cursor measurement for precise readings in noisy environments. The data browser allows easy access to saved waveform data and pictures, supporting operations like zooming and moving. Utilize USB data export to connect to a computer for efficient file copying. Enjoy the convenience of 5V 2A fast charging, reaching 80% charge in just one hour. Elevate your signal analysis and measurement capabilities with the MT1020.
Oscilloscopes, Instruments

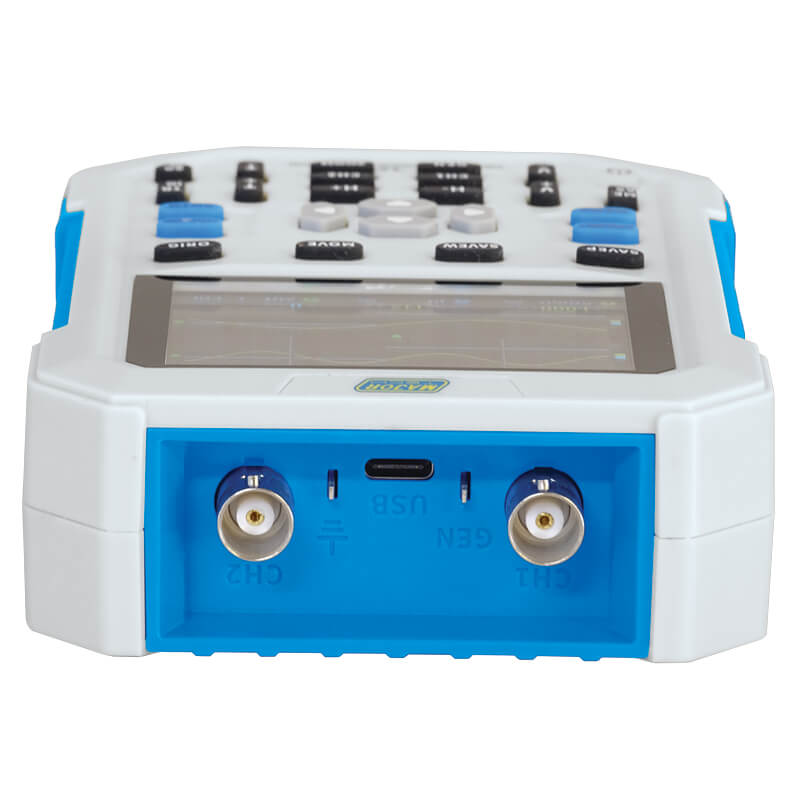

180MHz Dual Channel Oscilloscope
Price:
$695.00 ex. GST
$764.50 inc. GST
- 180MHz Bandwidth with 500MP/s sampling
- 20Mhz hardware bandwidth limit, can filter out noise above 20MHz
- ZOOM time base for easy analysis of digital protocol signals.
- Waveform refresh rate of up to 50000wfm/s
- Three trigger modes: automatic, single, normal
- One-button automatic adjustment, adaptive 25%, 50%, and 75% electric level trigger only take 2 seconds to measure 1VPP/1KHz.
- The original chopping output function can store up to 500 customized signals
- The DDS signal generator has 14 kinds of function signal waveforms
- Save waveforms & screenshots with one key, up to 250 sets of waveform data or 90 pictures
- Built-in 3000mAh large-capacity rechargeable lithium battery, battery life up to 4 hours
Specifications
Function | Range |
Number of Channels | 2 |
Analogue Bargraph | 180MHz |
Sampling Rate | 500MSPS |
Input Coupling | AC/DC |
Rise Time | 2.5 Seconds |
Storage Depth | 120Kpts |
Input Impedance | 1MQ to 18PF |
Vertical Sensitivity | 5mV – 10V (1X) |
Time Base Range | 5nS to 50s |
Trigger Detection | Digital Trigger |
Trigger Mode | Auto / Single / Normal |
Trigger Edge | Rising / Falling |
Measurement Range | 40mV to 80V (1X) |
Scrrenshot Storage | 90 |
Capture Signal | 500 |
Signal Generator | 14 Standard Functioning Signals |
Waveform Storage | 250 Groups |
Parameter Measurement | 12 Kinds |
Cursor Measurement | Frequency/ Period / Amplitude |
Screen Size | 71mm/2.3 Inch |
Screen Resolution | 320 x 240 Pixel |
Display Technology | IPS Full View |
Battery Capacity | 3000mAh (Rechagreable) |
Standby Time | 3.5 Hours on Full Charge |
Dimensions | 135 x 90 x 40mm |
Accessories
- Test Probes
- Charging Cable
- Instruction Manual
