SKU: MT902

VDV Wire Tester


Price:
$135.00 ex. GST
$148.50 inc. GST

  • Analysing of Voice, Data and Video cables
  • Tests shielded twisted pair (STP), unshielded twisted pair (UTP) and coaxial cables.
  • Detects shorts, opens, reversed polarity, crossed and split pairs
  • 5 Data RJ45 Remote Identifiers, 5 Coax F-Connector Remote Identifiers
  • Generates three distinct, selectable digital tone patterns for cable tracing and trouble shooting
  • Flashing Voltage warning alerts user of unidentified hazardous voltage
  • Simple cable identification of patch panel or wall outlet port
  • Low Battery indication and Auto Power Off
  • PASS or FAIL indication of correct or error in wiring
  • Large LCD backlit display

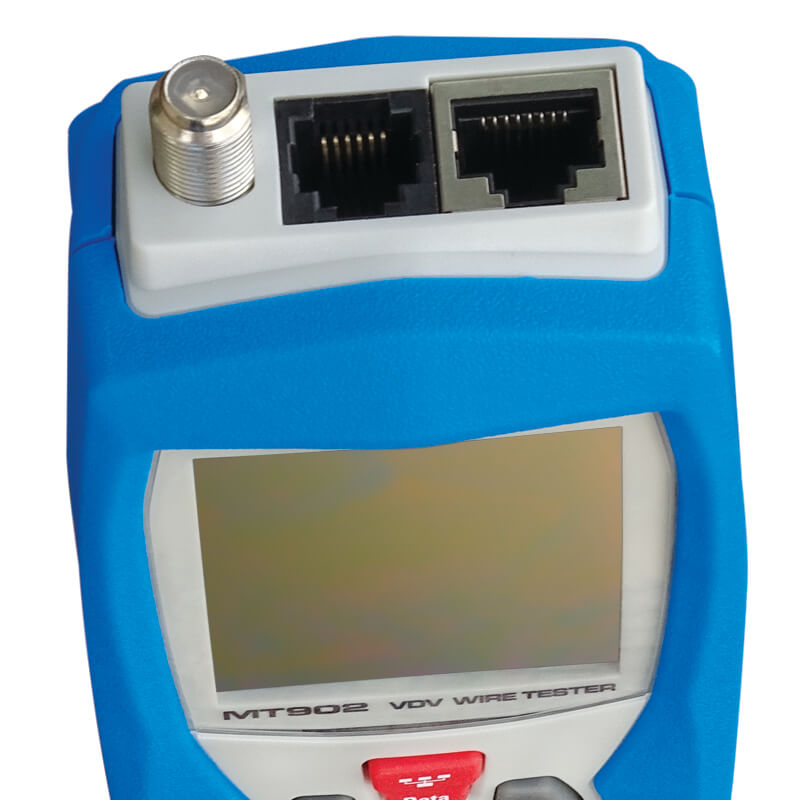

The MT902 is a professional VDV Wire Tester that analyses patch leads on phones, computer networks and coax cables in one easy step. This portable Voice, Data and Video meter is used to verify and troubleshoot RJ11, RJ12, RJ45 and F-connector cable. Indication on the large LCD display will map out and indicate open faults, short faults, split pairs and reverse wiring together with icons of PASS and FAIL status. The MT902 comes standard with 5 RJ45 Data and 5 Coax F-Connector identification remotes that can be used by technicians to permit mapping as well as identify cable runs from patch panels to a wall outlet ports. The built-in tone generator can be used to locate cables in wiring closets and patch panels by using an optional amplifier probe. Housed in a rugged double moulded case will provide years of reliable service.

SKU: MT902 Category:

Specifications

Function Range
Cable Types Shielded or Unshielded Cat7, Cat7A, Cat6, Cat6A, Cat5, CAT5A, Cat4Cat3, coax
Voice Tests RJ-11/12 6-wire cables
Data Tests RJ-45 8-wire cables
RJ-45 Remote 5 Remote mapping locations
Video Tests F-connector coax cables
Tone Use of Tone generator to trace phone lines
Digital Display 2.4-inch TFT colour screen
Maximum Coax Cable Length 305m
Minimum for Split Pair Detection 0.5m
Maximum Coax Cable Resistance 100Ω’s maximum DC
Max Voltage between any Two pins no damage 60V DC or 55V AC
Back Light Yes
Enclosure Moulded casing
Low Battery Indication Yes
Batteries 2 x AA
Weight 230g
Dimensions 152 x 61 x 34mm
Safety Specs EN 61326

Accessories

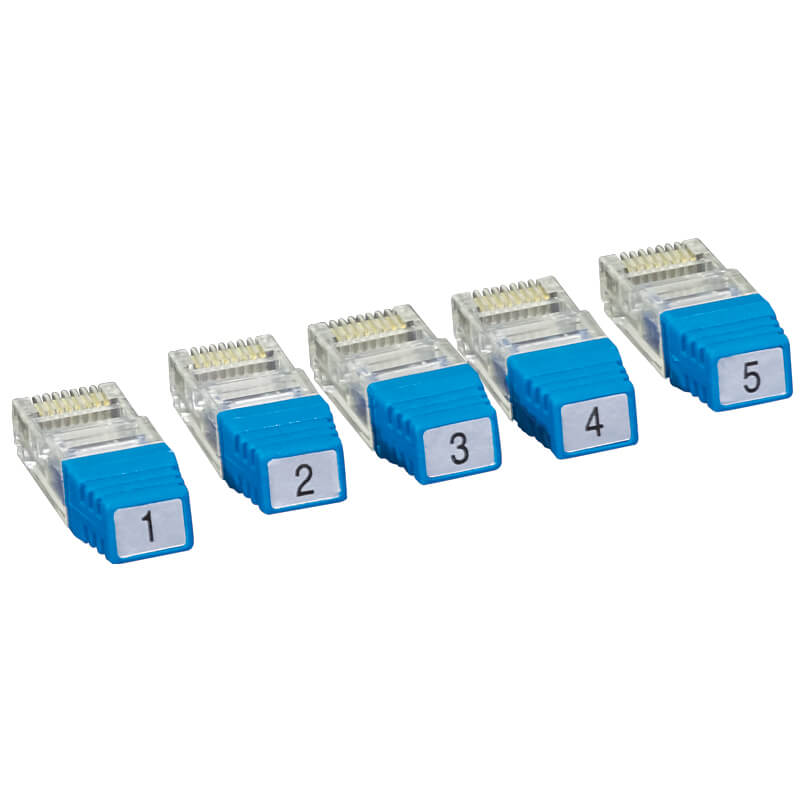

RJ45 Remote ID’s
F-Connector Remote ID’s

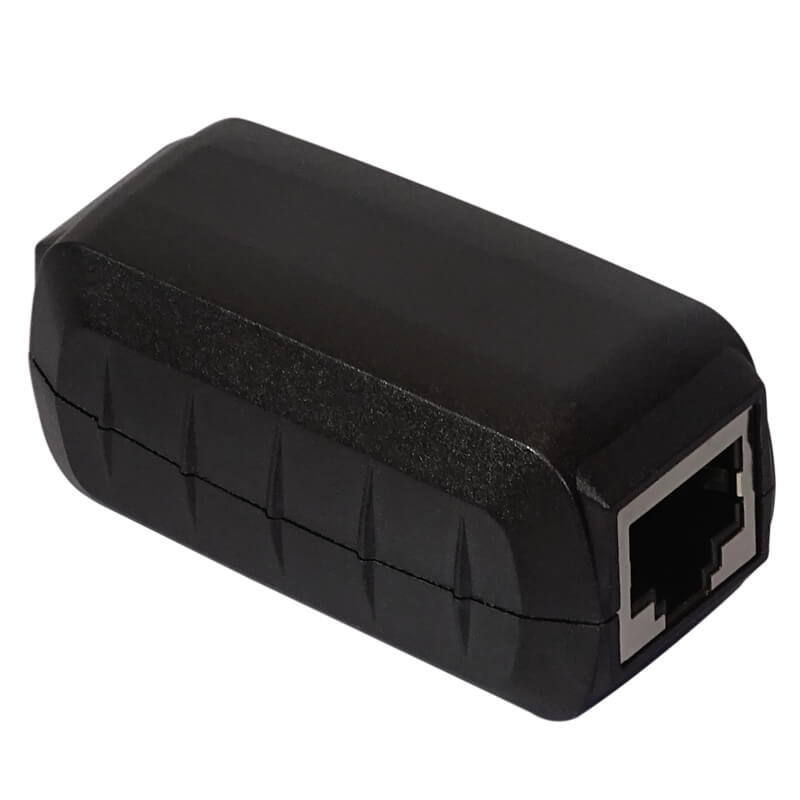

Voice & Data Jack Adaptor

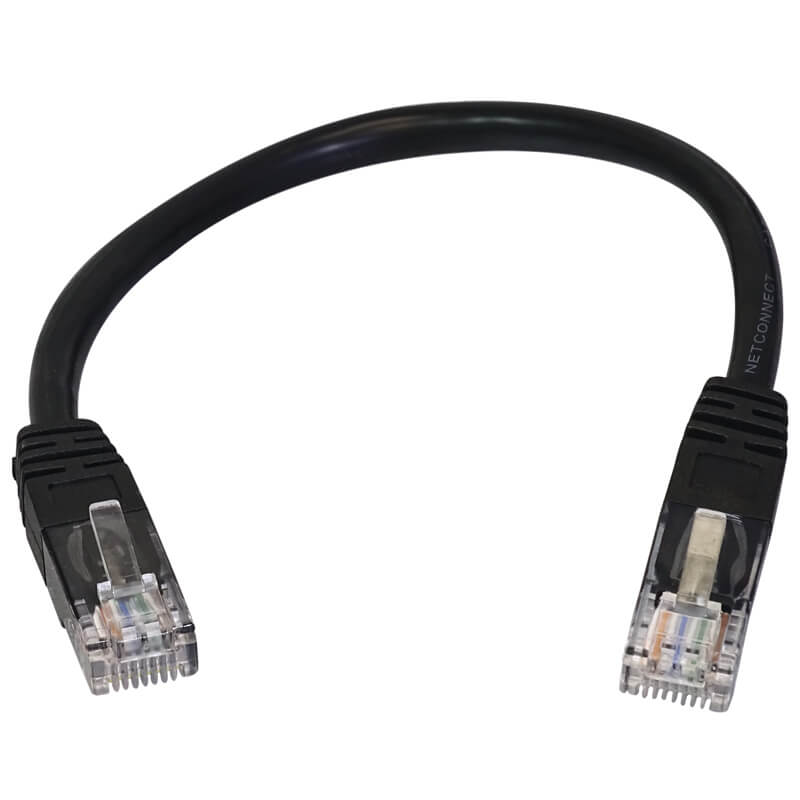

Data Patch Cable

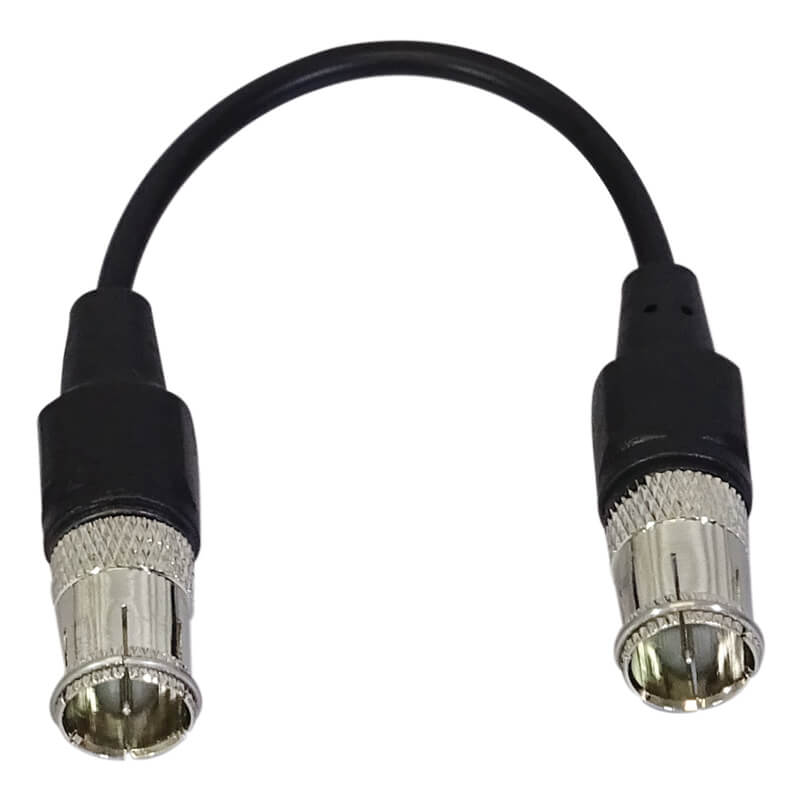

Coax Patch Cable

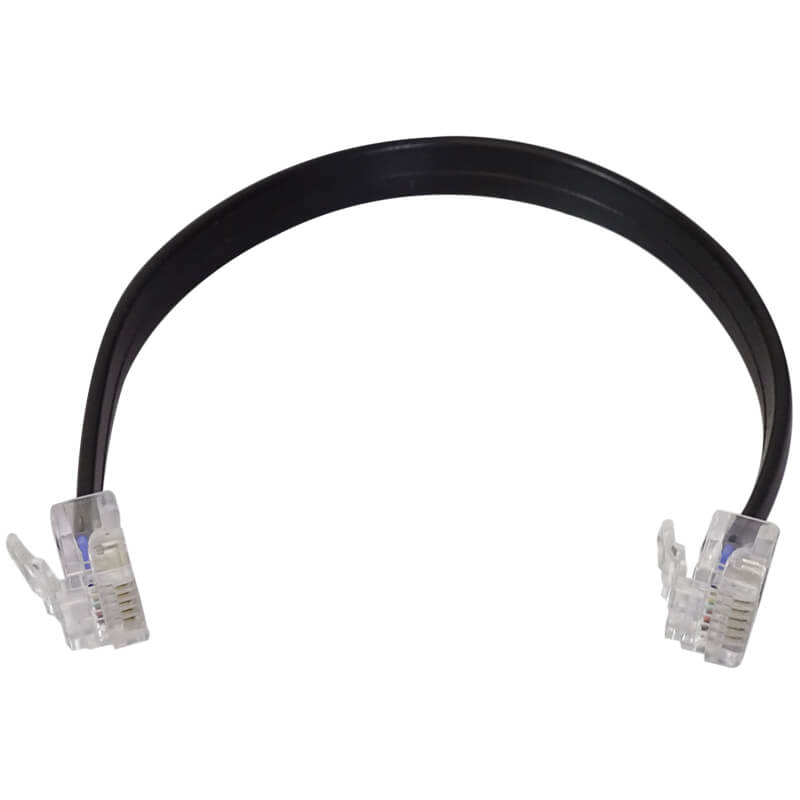

Telephone Patch Cable
2 x AA Batteries
Instruction Manual

Downloads

MT902 Instruction Manual MT902 Technical Datasheet
