SKU: MT403

IP67 1000V NCV Detector

Price:
$43.00 ex. GST
$47.30 inc. GST

  • IEC61010-1 CAT IV 1000V
  • IP67 waterproof and dust proof
  • AC Voltage 1000V
  • Frequency 60Hz
  • Thinner probe tip for working with socket outlets
  • Green LED means Power on, flashing red LED with beeper means Voltage detected
  • Two modes, green indicates high voltage mode, Yellow LED 12V Mode
  • Flash and beep rate increases as the detector gets closer to the voltage.
  • Power On/Off with silent mode
  • 2m drop-proof

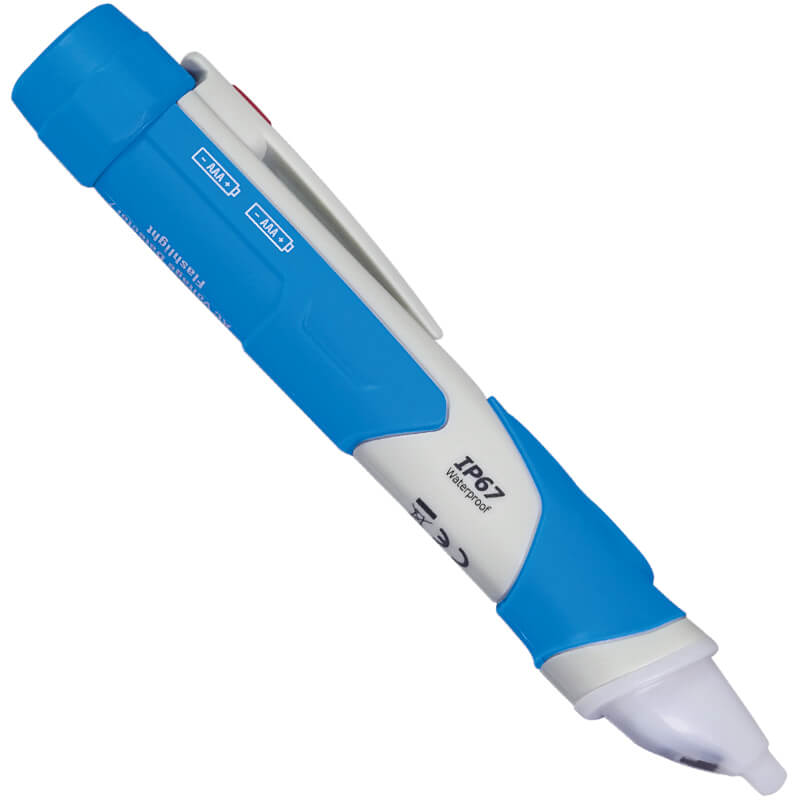

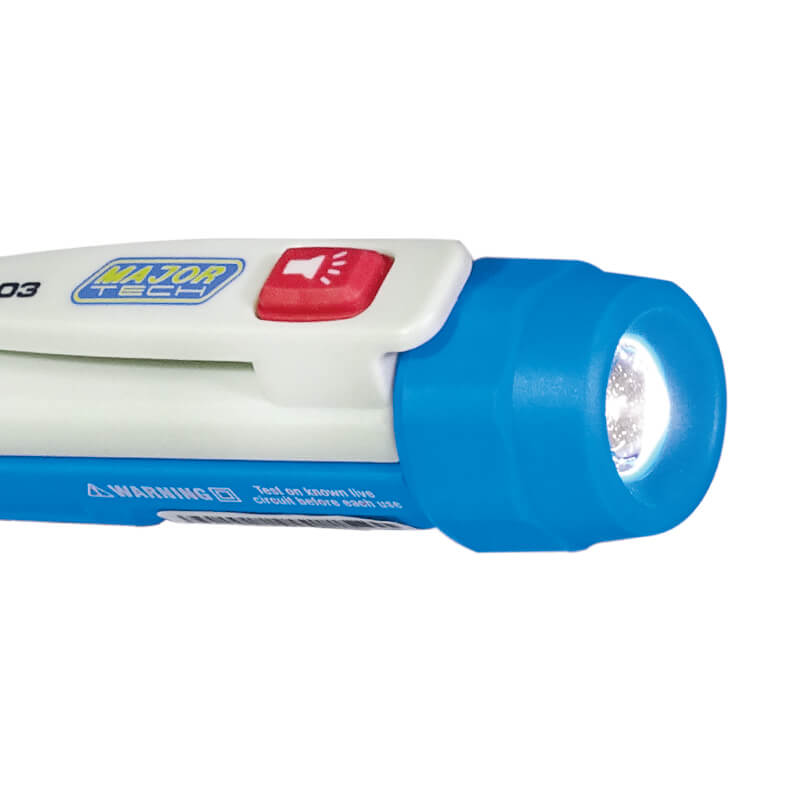

The MT403 is an IP67 1000V NCV Detector with dual ranges, a low measuring range down to 12 volts and a high measuring range from 12V to 1000V. Suitable for outlets or against wire insulation testing, this non-contact AC Voltage Detector has a switch to turn the unit on and a Green LED indicates it is working. There is a Red LED and an audible sound to indicate the presence of voltage. It has a rugged double moulded IP67 waterproof housing that can withstand a 2m drop. There is a bright built-in LED flashlight ideal for use in dimly lit areas.

SKU: MT403 Category:

Specifications

Function Range
Power On Indicator Green LED
Flashlight LED
Non-Contact Voltage (NCV) Yes
AC Voltage 12V – 1000V
Frequency 50/60Hz
Voltage Detector 100V -1000V Red LED auditable beep
Voltage Detector 12V -1000V Yellow then Red LED auditable beep
Voltage Detector Audible Continuous Beep
Enclosure Double moulded IP67 waterproof
Low Battery Indication Beep 3 times, switch off
Batteries 2 x AAA
Weight 55g
Dimensions 160 x 23 x 25mm
Safety Specs IEC61010-1 CAT IV 1000V

Safety Ratings



Accessories

2 x AAA Batteries
Instruction Manual
