SKU: MT782

1500V DC Solar Clamp Meter

$695.00 ex. GST
$764.50 inc. GST

  • 6000 count 2.4” TFT Colour LCD display
  • Ø37mm Cable Clamp size
  • 1000A AC/DC
  • 1500V DC / 1000V AC
  • AC+DC TRMS Voltage 1000V
  • INRUSH Current Measurements
  • Capacitance to 100mF
  • Resistance to 60MΩ
  • Frequency to 10MHz
  • K-type Temperature -40⁰C to 1000⁰C
  • Logging function with Trend Capture
  • NCV – Non-Contact Voltage Detector
  • Built-In Flashlight
  • Continuity buzzer and Diode Test
  • Max, Min and Average with Time Stamp

The MT782 is a 1500V DC Solar Clamp Meter. This clamp meter has a large 6000 count colour TFT LCD display with an analogue bargraph that provides fast sampling times and high accuracy measurements. The Solar Clamp Meter has been designed to measure 1500V DC purposely for the Solar industry, 1000V AC, K-Type temperature, frequency, capacitance, AC+DC Voltage and resistance measurements. The Low Z ACV range has a low pass filter to eliminate errors caused by “Ghost” voltages.

The 100ms Inrush current detects starting up currents of electric motors, input surge current, or switch on surge currents, this is the maximum instantaneous input current drawn by an electrical device when first turned on.

This Solar Clamp Meter has a built-in record and store function and displays trend capture, using the Bluetooth function the meter wirelessly transmits data to the Android or iOS mobile App allowing the user to view, save, organise and share recordings. Added features is Non-Contact voltage detection, Peak Hold, Min/Max and Average, Data hold function and a built-in flashlight for dimly lit areas. The Solar Clamp Meter has double injection moulded housing and is IP65 waterproof. The MT782 auto powers off when the clamp meter is not in use.

Optional MT740 Flexible Coil Clamp for measurement to 3000A AC.

To view the extensive range of Clamp Meters, click here.

Follow us on Facebook and Instagram to keep updated with the latest products and promotions.

SKU: MT782 Categories: ,


Function Range Resolution Accuracy
DC voltage 600.0mV – 1500V 0.1mV ± (0.8% + 8 Digits)
AC voltage 6.000V – 1000V 1mV ± (1.2% + 5 Digits)
AC + DC TRMS voltage 6.000V – 1000V 1mV ± (2.5% + 20 Digits)
DC Current 600.0A – 1000A 0.1A ± (2.5% + 5 Digits)
AC Current 60A – 1000A 0.1A ± (2.5% + 8 Digits)
Flexi Coil AC Current 30.00A – 3000A 0.01A ± (3% + 5 Digits)
Duty Cycle 10.0% – 90.0% 0,1% ± (1.2% + 8 Digits)
Resistance 600.0Ω – 60.00MΩ 0.1Ω ± (1.0% + 10 Digits)
Frequency 60.00Hz – 10.00MHz 0.01Hz ± (2.0% + 5 Digits)
Capacitance 60.00nF – 100.0mF 0.01nF ± (3% + 20 Digits)
Temperature K Type -40 to 1000°C 0.1°C ± (1.5% + 3°C)
Continuity Yes
Diode test Yes
True RMS Measurements ACV, ACA
AC Bandwidth 50Hz to 60Hz
Digital Display 6000 TFT
Bargraph Yes
Bluetooth Yes
Records events and Trends Yes
Non-Contact Voltage (NCV) Yes
Overrange indication Yes
Input impedance >10MΩ DCV & VAC
Min Max Yes
Peak hold Yes
Data Hold Yes
Enclosure Injection moulded case
Low battery indication Yes
Power source 7.4V Rechargeable
Weight 550g
Dimensions 270 x 95 x 42mm
Safety Specs IEC61010-1 CATIV 600V

Safety Rating

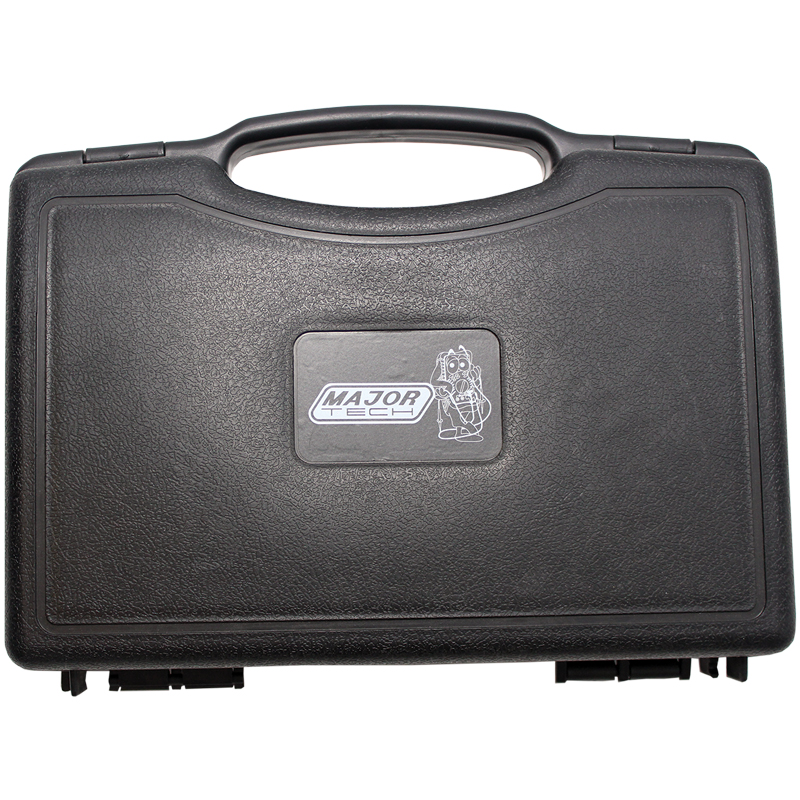

Hard Carrying Case

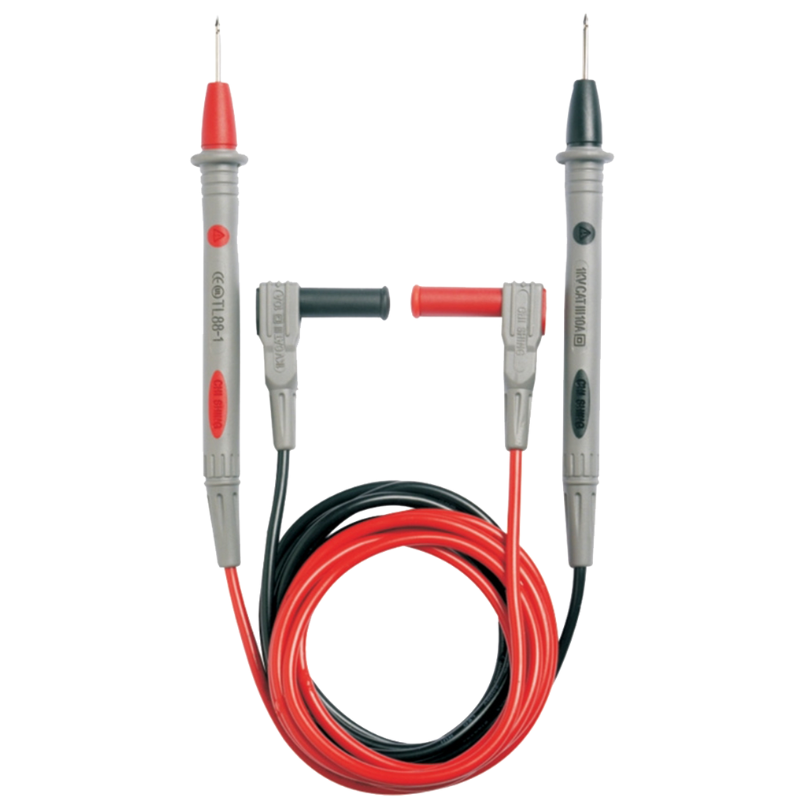

Test Leads

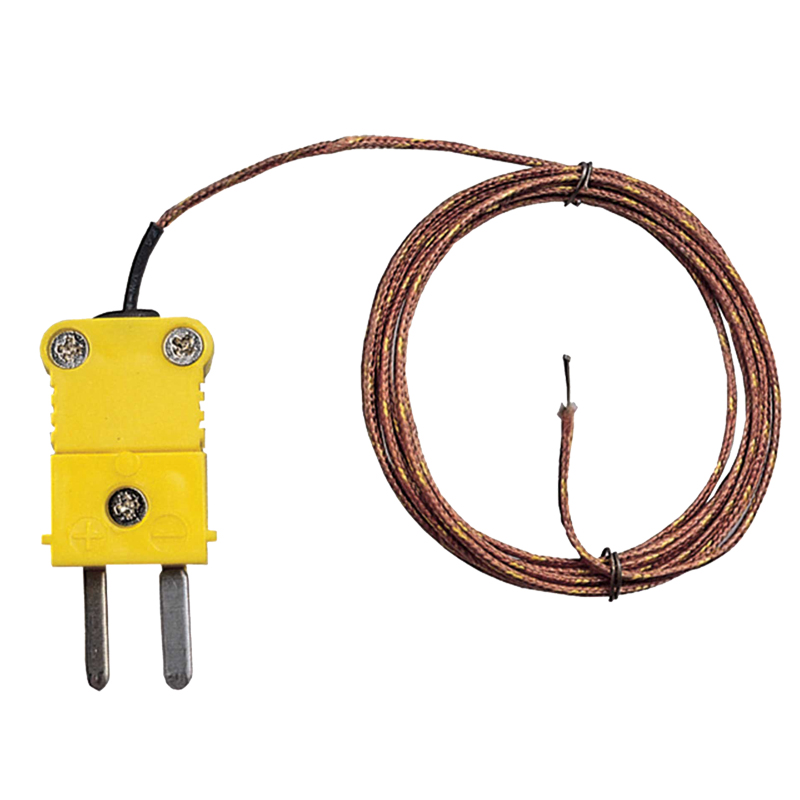

Temperature Probe

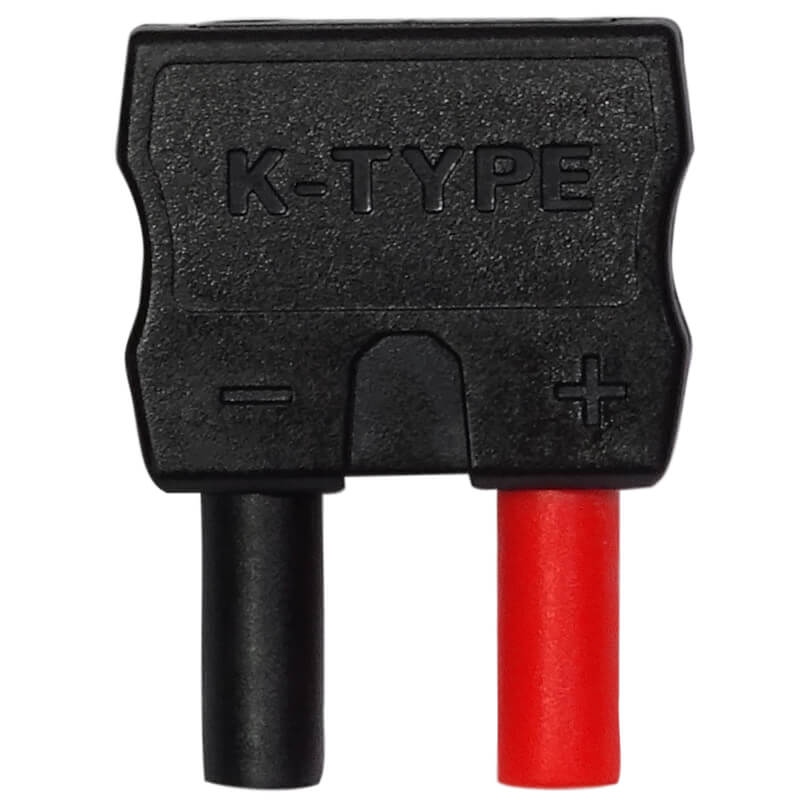

K-Type Adaptor
Instruction Manual
Rechargeable Li-ion Batteries

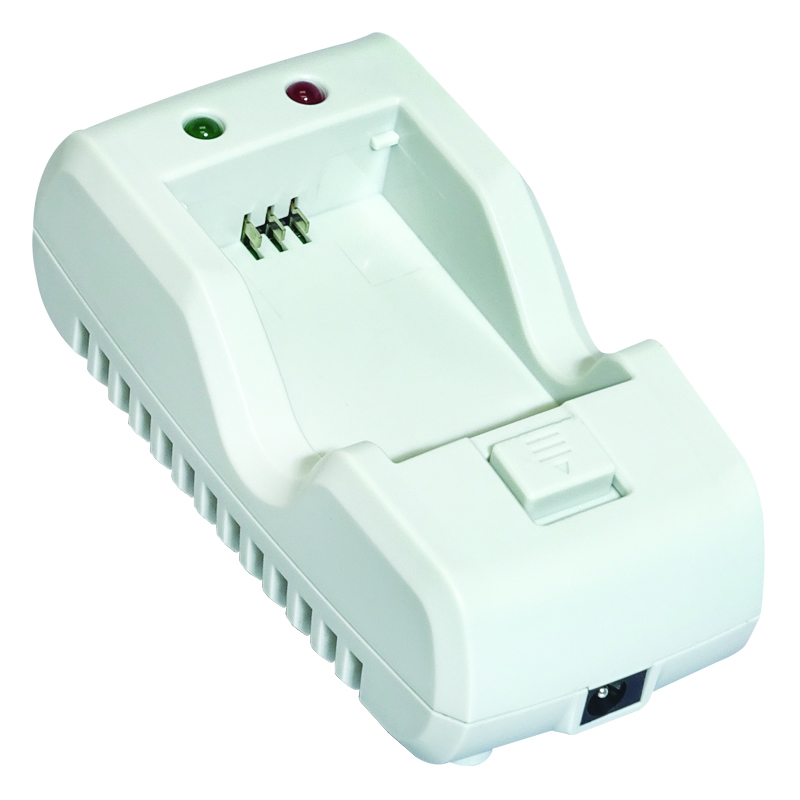

Battery Charger
