SKU: MT1885

1500V DC IP67 True RMS Bluetooth Multimeter


Price: $284.90

  • CAT IV 600V and CAT III 1000V

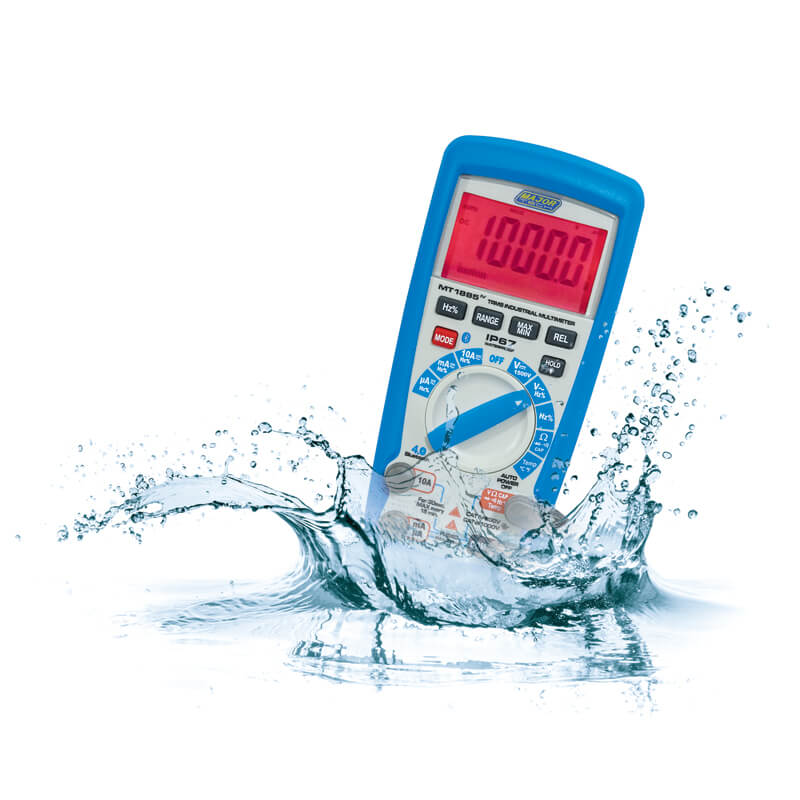

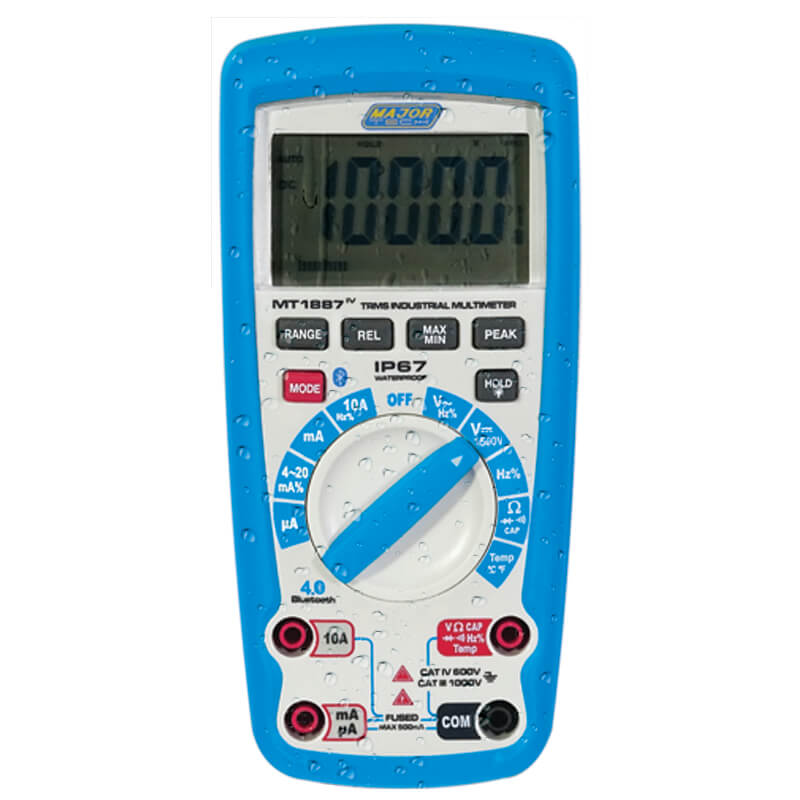

  • IP67 Dust & waterproof with O-ring sealed casing
  • Measures DC voltage up to 1500V
  • Measures AC voltage up to 1000V
  • 6000 Count LCD display with 61 segment analogue bargraph
  • Temperature measurement from -20⁰C to 1000⁰C
  • AC & DC Micro Amps up to 10A
  • Capacitance to 100mF
  • Frequency to 10MHz
  • Duty Cycle
  • Relative mode
  • Automatic Non-contact voltage detector above 110V AC, LCD turns red
  • Min, Max and Data Hold
  • Auto Power Off

The MT1885 is a CAT IV 600V True RMS multimeter specially designed for the Solar industry due to the measurement of up to 1500V DC. The meter has a large 6000 count backlit LCD with the added advantage of a 61 segment analogue bargraph. NCV function, automatic Non-Contact voltage detection, the LCD backlight will be in red when AC voltage above 110V is sensed. Other measuring ranges include ACV to 1000V, Micro Amps and Amps, Frequency, Resistance, Duty Cycle, capacitance and temperature measurements. The Bluetooth function allows the user to transmit data to the Android or iOS mobile App for viewing, organising and sharing recordings. The meter has a double moulded rubber case with IP67 waterproof and dustproof rating, rugged design for heavy duty use.

SKU: MT1885 Categories: ,

Specifications

Function Range Resolution Accuracy
DC Voltage 600mV – 1500V 1V ±(0.5% + 5 Digits)
AC Voltage 6V – 1000V 1V ±(0.8% + 4 Digits)
DC Current 600uA – 10A 10mA ±(1.0% + 3 Digits)
AC Current 600uA – 10A 10mA ±(1.5% + 3 Digits)
Resistance 600Ω – 60MΩ 10kΩ ±(1.5% + 2 Digits)
Capacitance 99.9nF – 99.99mF 0.01mF ±(4.0% + 5 Digits)
Temperature -20°C – 1000°C 1°C ±(3.0% + 5°C Digits)
Frequency (Electronic) 9.999Hz – 9.999MHz 1kHz ±(1.2% + 4 Digits)
Frequency (Electrical) 10 ~ 1KHz 0.01Hz ±(1.5% reading)
Duty Cycle 0.1% – 99.9% 0.1% ±(1.2% + 2 Digits)
AC Response True RMS
Digital Display 6000 Count
Bargraph 61 Segmented
Continuity Test Audible signal if the resistance is approx. 50Ω or less
Diode Test Test current 0.9mA typical, open circuit voltage 3.2V DC typical
Non-Contact Voltage Detection above 110V AC, LCD display turns red
Bluetooth Bluetooth 4.0 Technology
Data Hold Yes
Back Light Yes
Enclosure IP67 Dust & Waterproof Double Moulded
Battery 9V
Dimensions 187 x 81 x 50mm
Weight 342g

Safety Ratings



Accessories

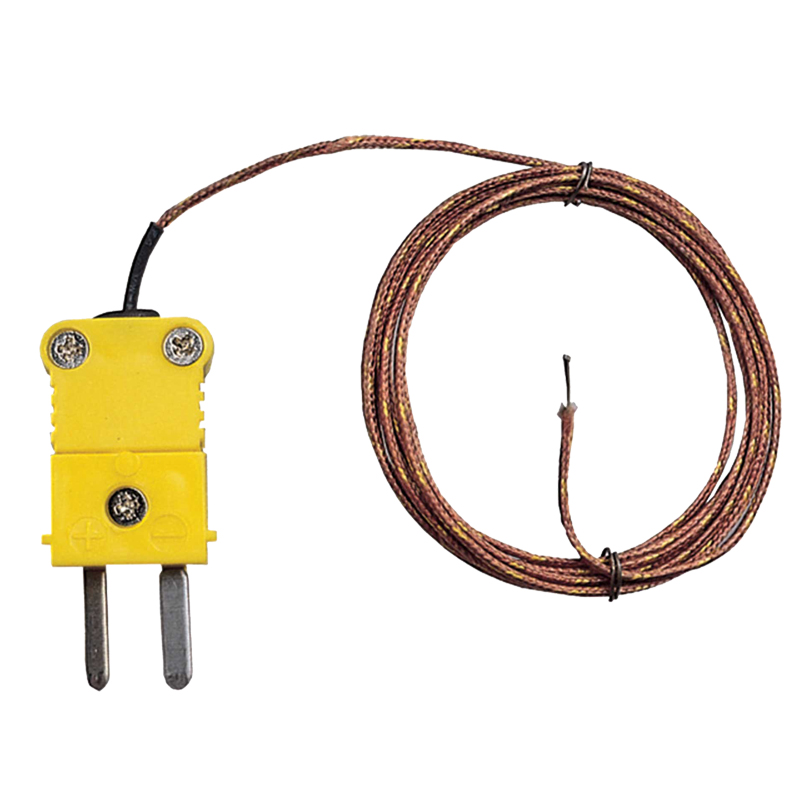

Type-K Temperature Probe

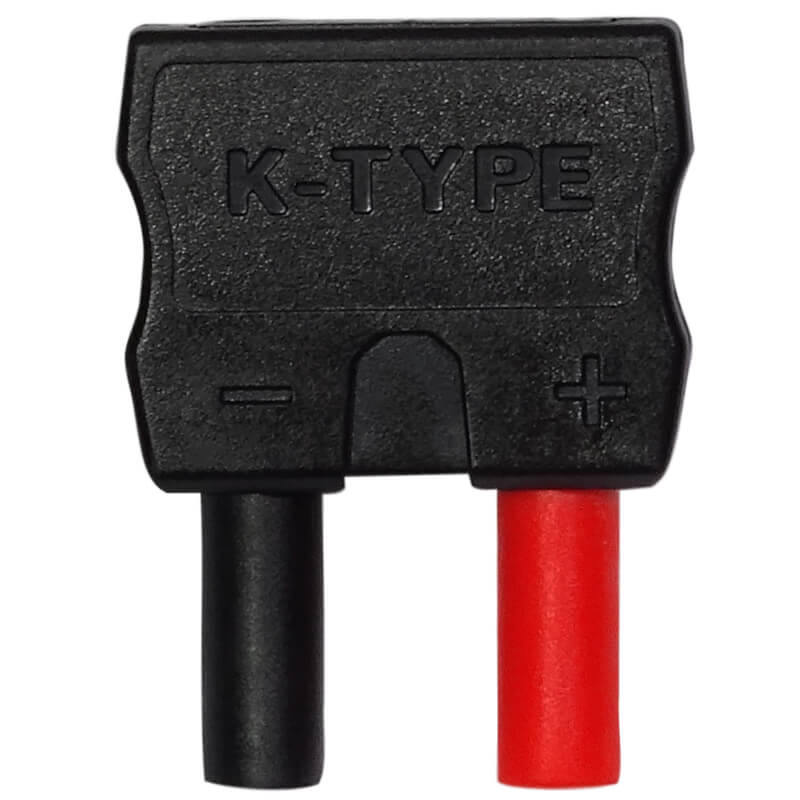

Type-K Adaptor

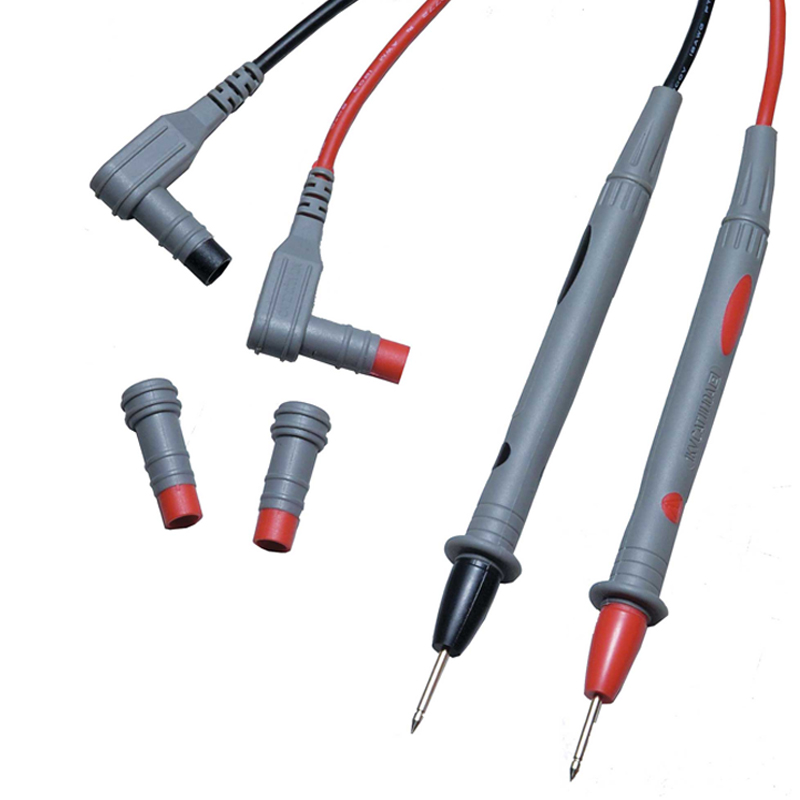

Test Leads

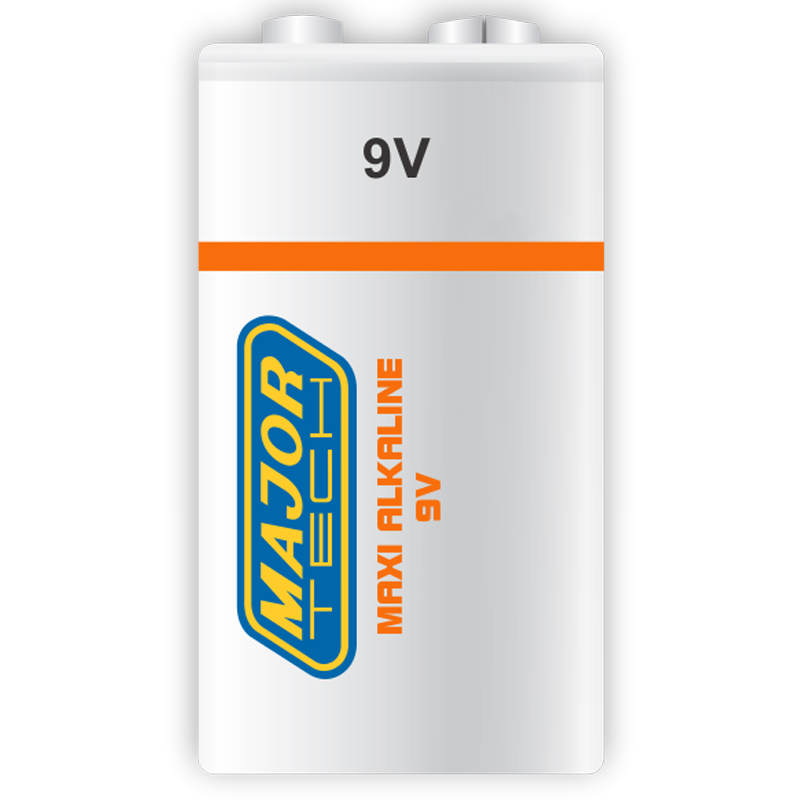

9V Battery
Instruction Manual
