SKU: MT1003

1000V AC/DC True RMS Multimeter


Price: $522.50

  • CAT IV 600V and CAT III 1000V
  • Large 6000 count 320 x 240 TFT color LCD display
  • Logging function with Trend Capture for easy review of logged data
  • Graph 100 Data review
  • 10kHz bandwidth (voltage/current)
  • AC True-RMS measurements
  • Setup function & Saves measurements
  • A/D convert fast sampling time
  • Peak capture (records transients as fast as 500µs)
  • Min/Max/Average with Time stamp (records signal fluctuations)
  • 4-20mA process loop measurements with % reading

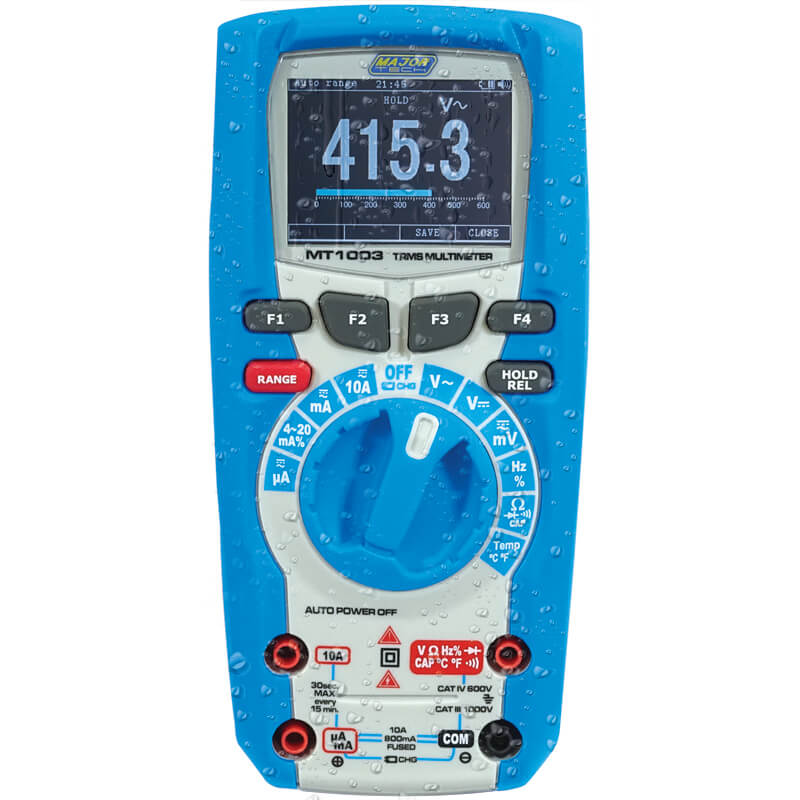

The MT1003 Heavy duty True RMS Industrial Digital Multimeter with TFT color LCD display, provides fast A/D converting sampling time, high accuracy, built-in datalogging and Trend Capture features. It can trace any interruptions of the equipment and record events automatically unattended. It is easy to find and solve the problems and memorise the datasheets whilst providing safer measurements with the double moulded plastic housing design.



SKU: MT1003 Categories: ,

Specifications

Function Range Resolution Accuracy
DC Voltage 600mV – 1000V 0.1mV ±(0.1% + 5d)
AC Voltage 600mV – 1000V 0.1mV ±(0.9% + 5d)
AC + DC TRMS Voltage 6V – 1000V 0.1mV ±(3.0% + 20d)
DC Current 600μA – 10A 0.1μA ±(0.9% + 5d)
AC Current 600μA – 10A 0.1μA ±(1.2% + 5d)
Duty Cycle 0.1 to 99.90% 0.0001 ±(1.2% + 2d)
Resistance 600Ω – 60MΩ 0.1Ω ±(0.8% + 5d)
Frequency 60Hz – 1MHz 0.01Hz ±(0.09% + 5d)
Capacitance 60nF  – 6000µF 0.01nF ±(1.5% + 8d)
Temperature -40 to 1350°C 0.1°C ±(1.2% + 3d)
True Rms Measurements AC
Ac Bandwidth 50Hz to 1000Hz
Digital Display 6000 TFT
Bargraph Yes
Records Events and Trends Yes
Data Logging Yes
Continuity Yes
Diode Test Yes
Overrange Indication Yes
Input Impedance >10MΩ VDC & >9MΩ VAC
Min Max Yes
Peak Hold 1ms
Enclosure Double moulded
Low Battery Indication Yes
Power Source 7.4V rechargeable
Dimensions 170 x 79 x 50mm
Safety Specs IEC61010-1 CAT IV 600V

Safety Ratings



Accessories

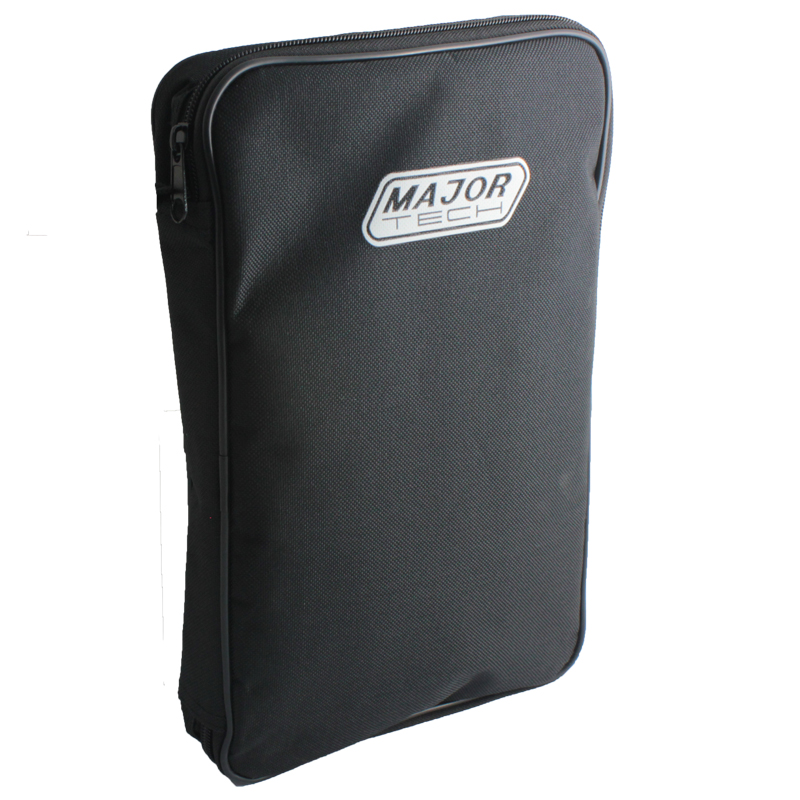

Soft Carrying Case

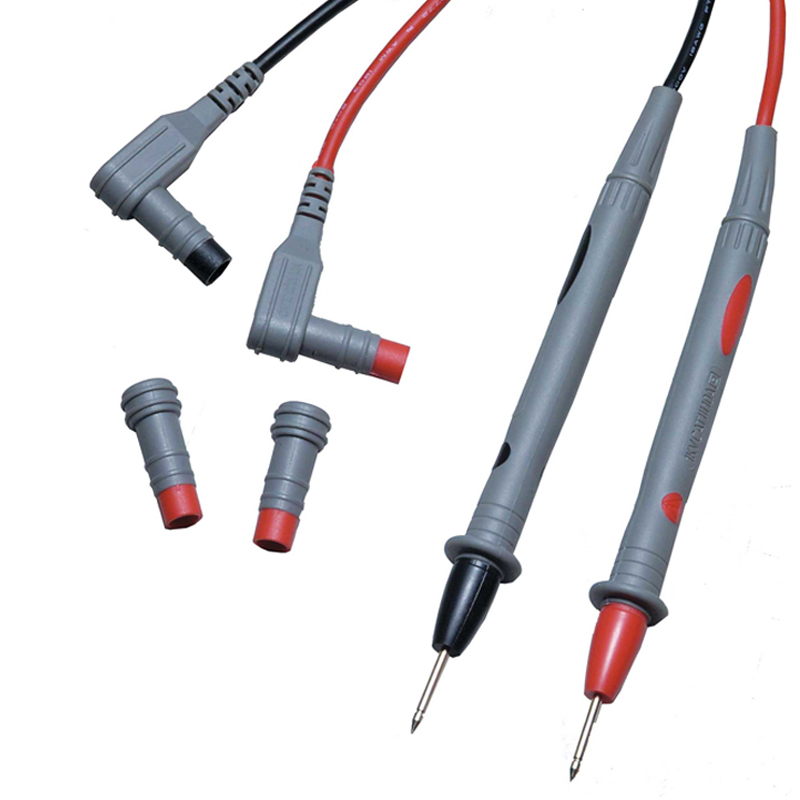

Test Leads

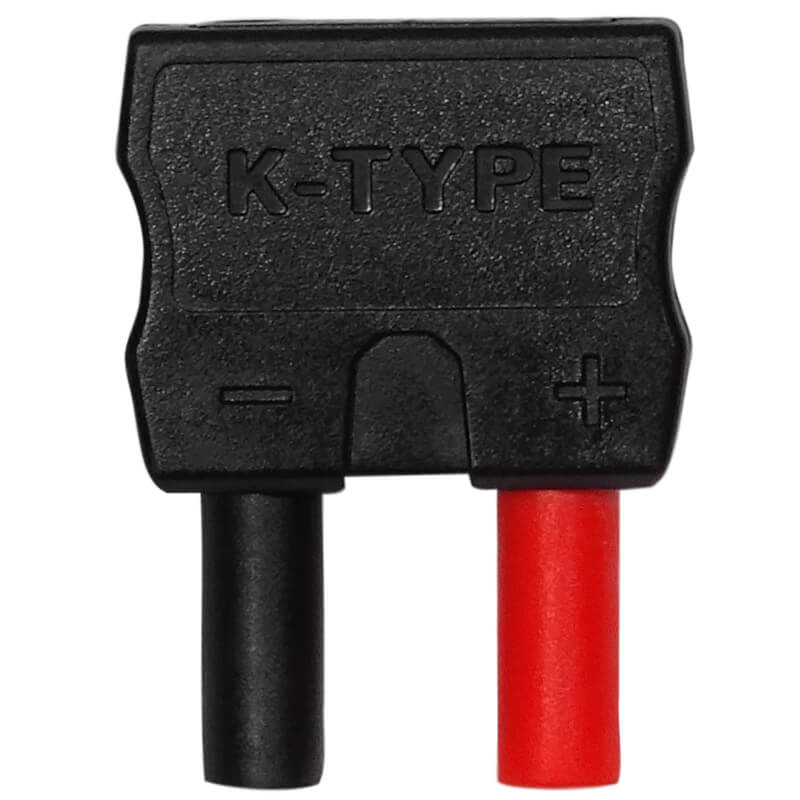

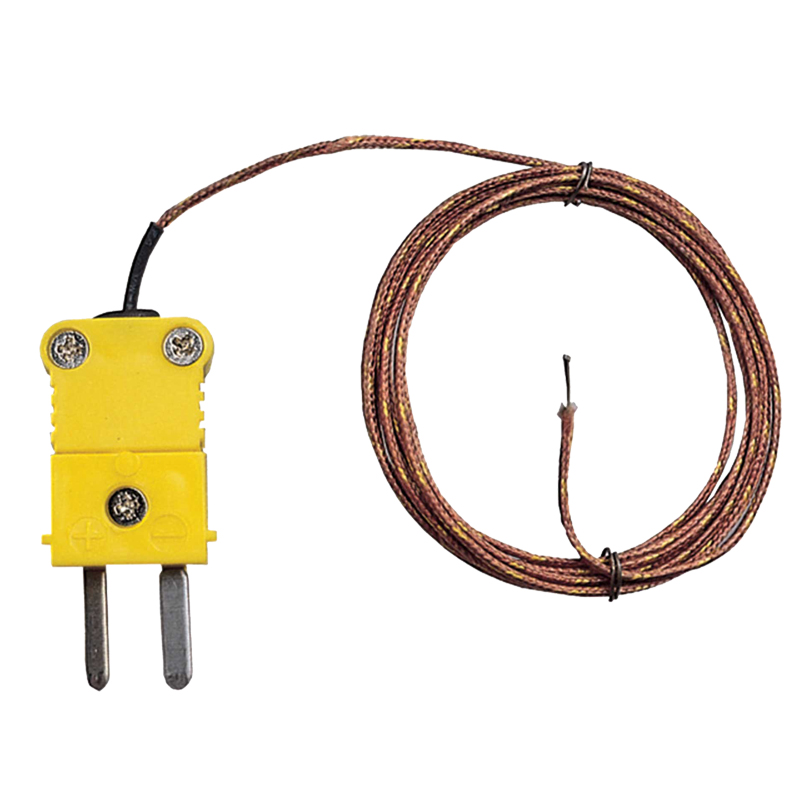

Temperature Probe
Instruction Manual

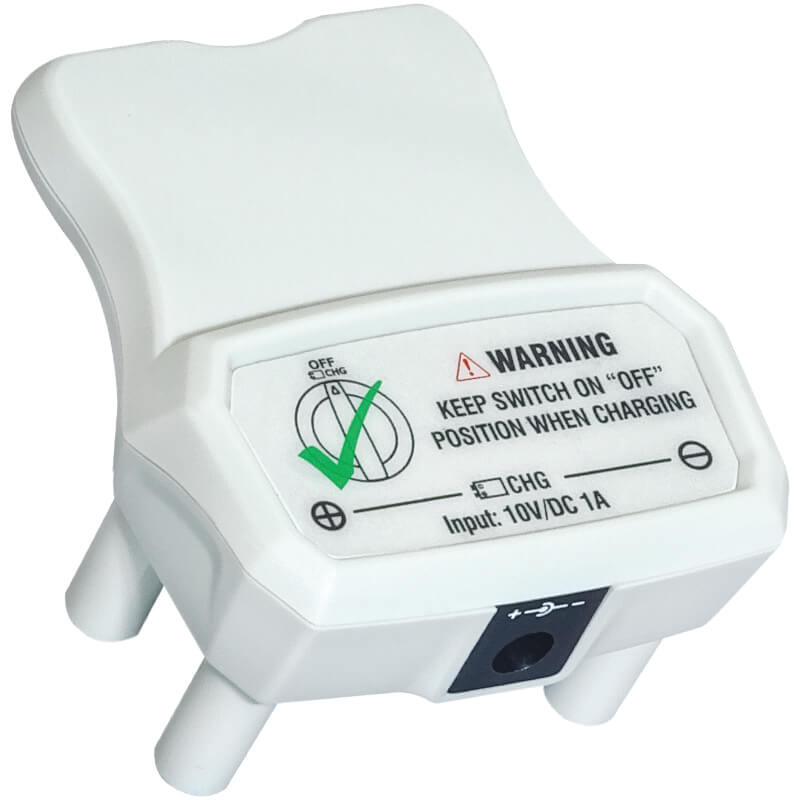

Rechargeable Li-ion Batteries
