SKU: MT24

1000V AC/DC Compact Multimeter

Price:
$129.00 ex. GST
$141.90 inc. GST

  • Measures AC and DC Voltage to 1000V
  • MIN/MAX Recordings
  • Auto Range with Manual Override
  • Frequency measurement to 10MHz
  • Capacitance to 4000μF
  • Temperature from -20°C to 760°C
  • Data Hold
  • Duty Cycle
  • 6000 Count LCD with bargraph
  • Auto Power Off
  • Overmould rubber housing

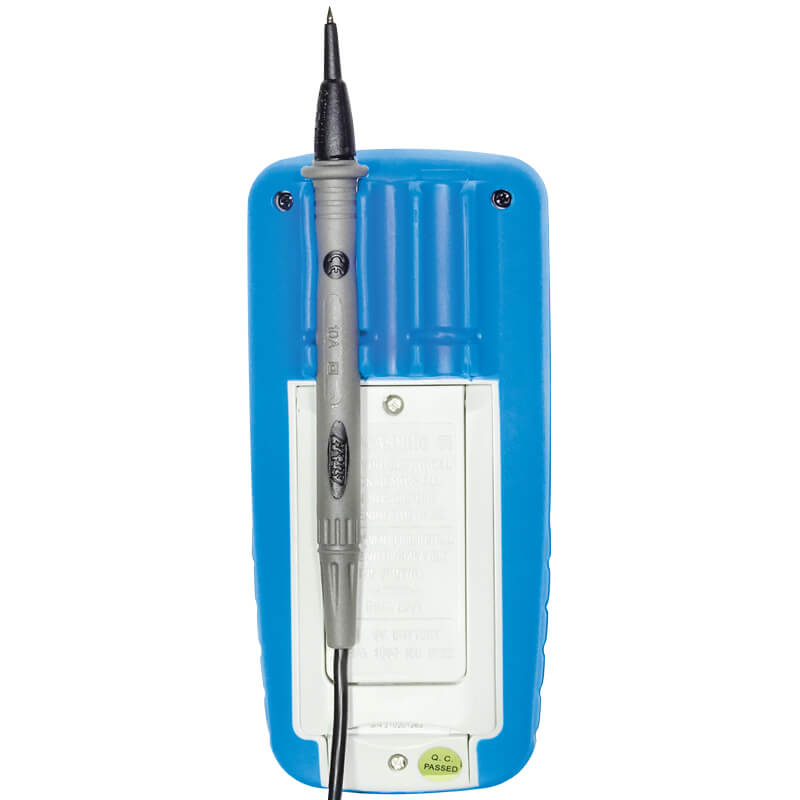

  • Integrated Test Lead Holder
  • Backlight for dimly lit areas
  • Temperature measurement

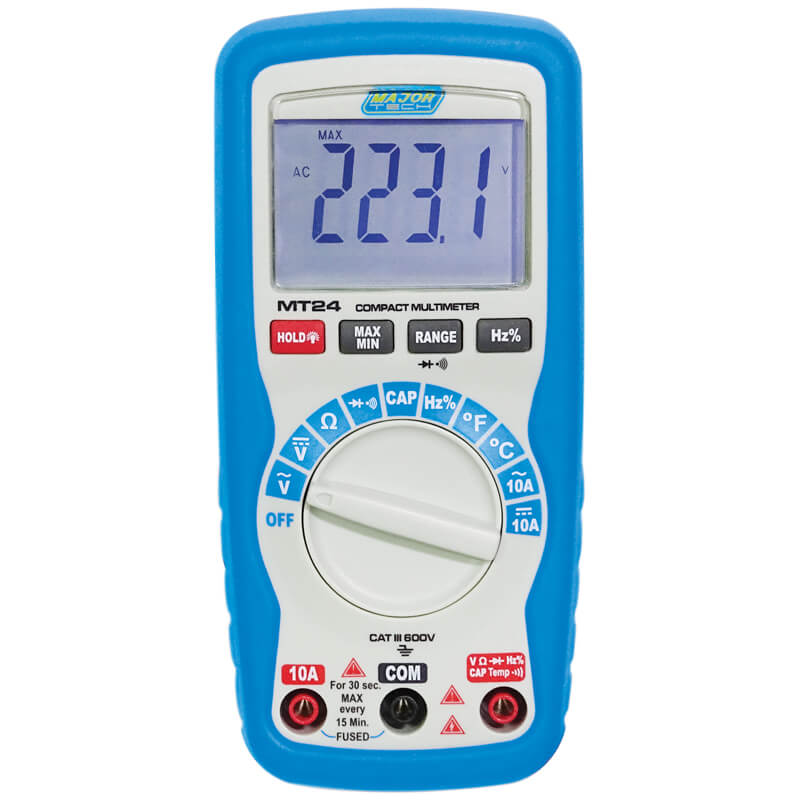

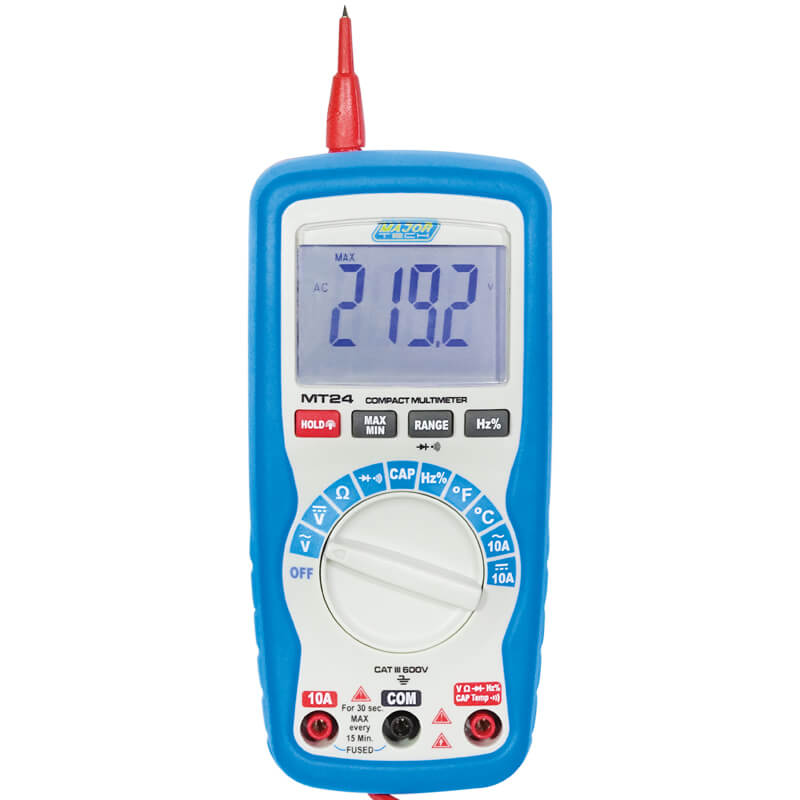

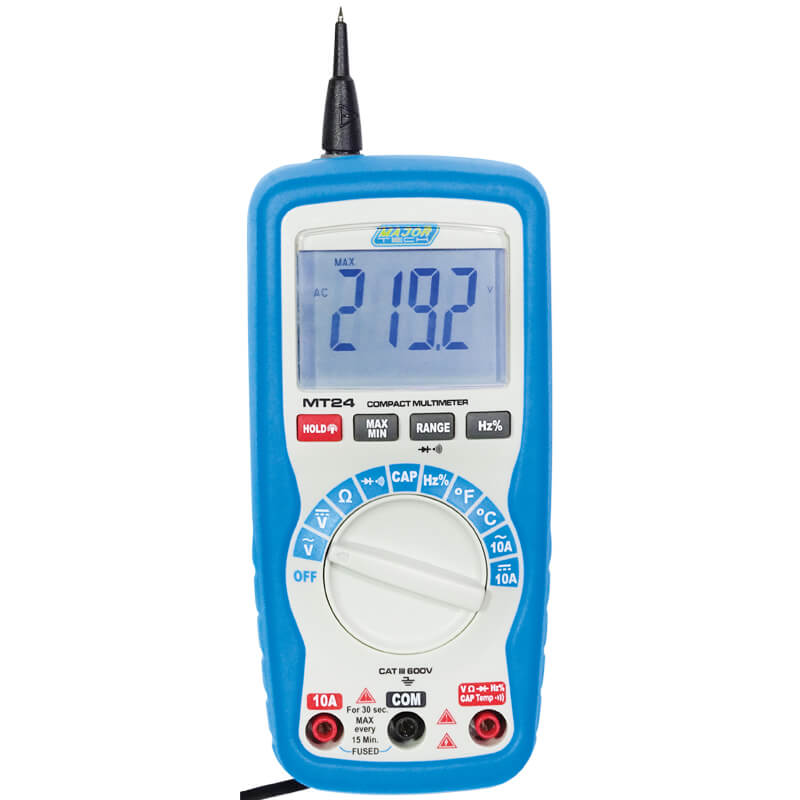

The MT24 is a compact meter with double moulded rubber housing and meets the International Standard IEC-61010-1 CAT lll 600V. The large LCD display screen has a white backlight for use in arduous areas. This meter is a very economical tester ideally suited for everyday use by electricians, electronic technicians as well as the air conditioning industry. The MT24 is an autoranging multimeter with the option of manual override, and has a 6000 count LCD display with a 61 segment analogue bargraph. This meter offers features of MIN/MAX recordings, Data Hold, Frequency measurement with Duty Cycle, Capacitance measurement of up to 4000μF and resistance of 60MΩ. It has the added function of temperature measurement in either 0C or 0F, with a range from -200C up to 7600C. An adaptor is supplied which converts the 4mm input to accept K-Type thermocouples.

SKU: MT24 Category:

Specifications

Function Range Resolution Accuracy
DC Voltage 0.1mV – 1000V 0.1mV ±(0.5% + 2 Digits)
AC Voltage 1mV – 1000V 0.1mV ±(1.2% + 3 Digits)
DC Current 1mA – 10A 1mA ±(2.5% + 5 Digits)
AC Current 1mA – 10A 1mA ±(3.0% + 5 Digits)
Duty Cycle 0.1 to 99.90% 0.001 ±(1.2% + 2 Digits)
Resistance 0.1Ω – 60MΩ 0.1Ω ±(1.0% + 2 Digits
Frequency 0.001Hz – 10MHz 0.001Hz ±(1.2% + 3 Digits)
Capacitance 10pF – 4000μF 10pF ±(3.0% + 5 Digits)
Temperature -20°C to 760°C 1°C ±(3.0% + 5°C)
AC Bandwidth 50Hz to 60Hz
Digital Display 6000
Continuity Yes
Diode Test Yes
Overrange Indication Yes
Input Impedance 7.8MΩ VDC & 7.8MΩ VAC
Min Max Yes
Data Hold Yes
Enclosure Double moulded
Low Battery Indication Yes
Battery 9V
Weight 255g
Dimensions 150 x 70 x 48mm
Safety Specs IEC61010-1 CAT III 600V

Safety Ratings



Accessories

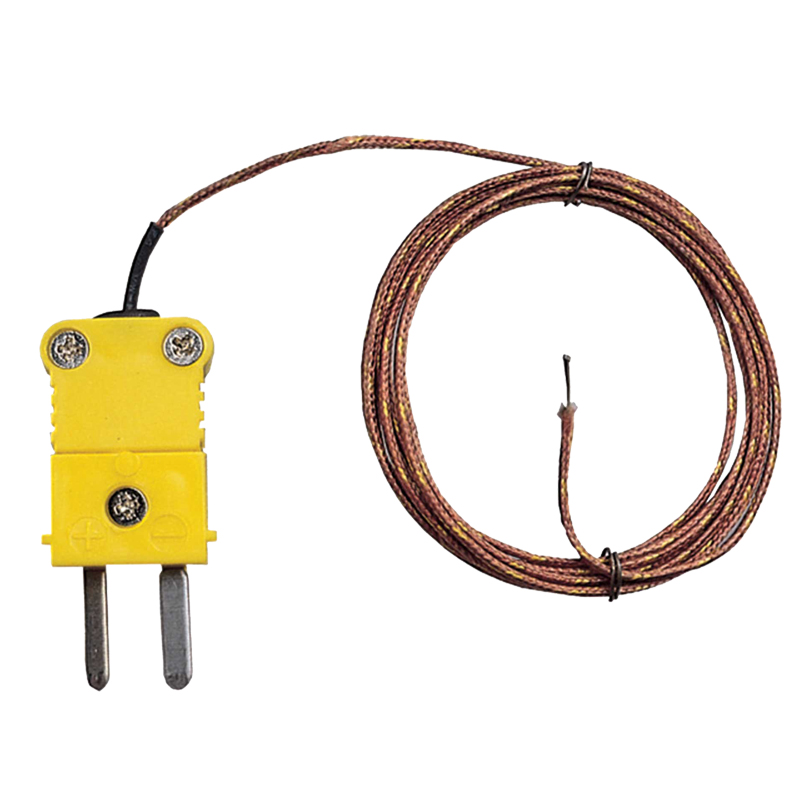

Type-K Temperature Probe

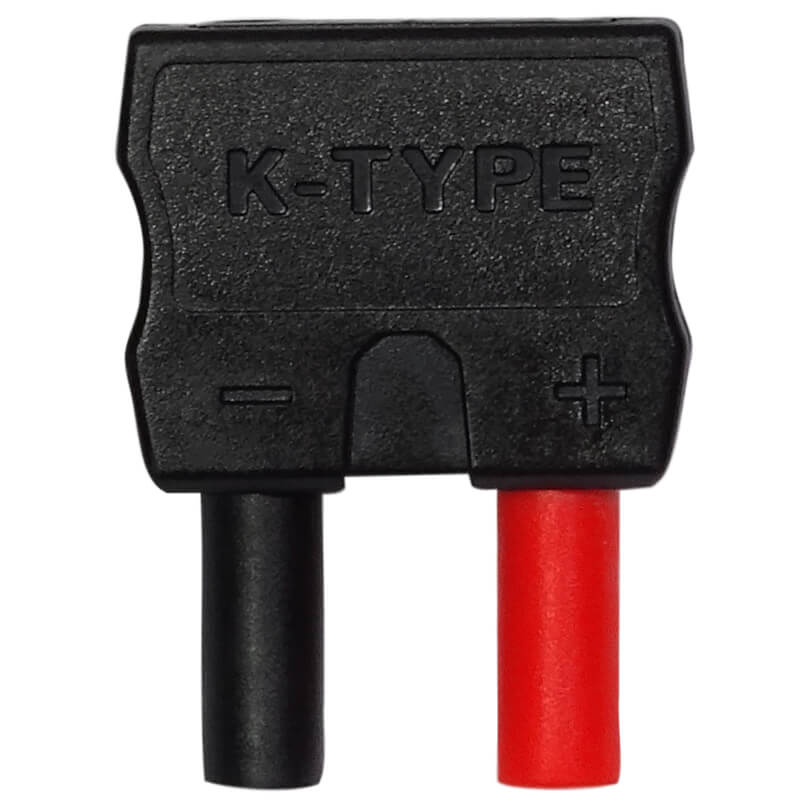

Type-K Adaptor
9V Battery
Instruction Manual
