SKU: MTD84

Compact True RMS Auto Ranging Multimeter


Price:
$72.00 ex. GST
$79.20 inc. GST

  • CAT III 600V and CAT II 1000V

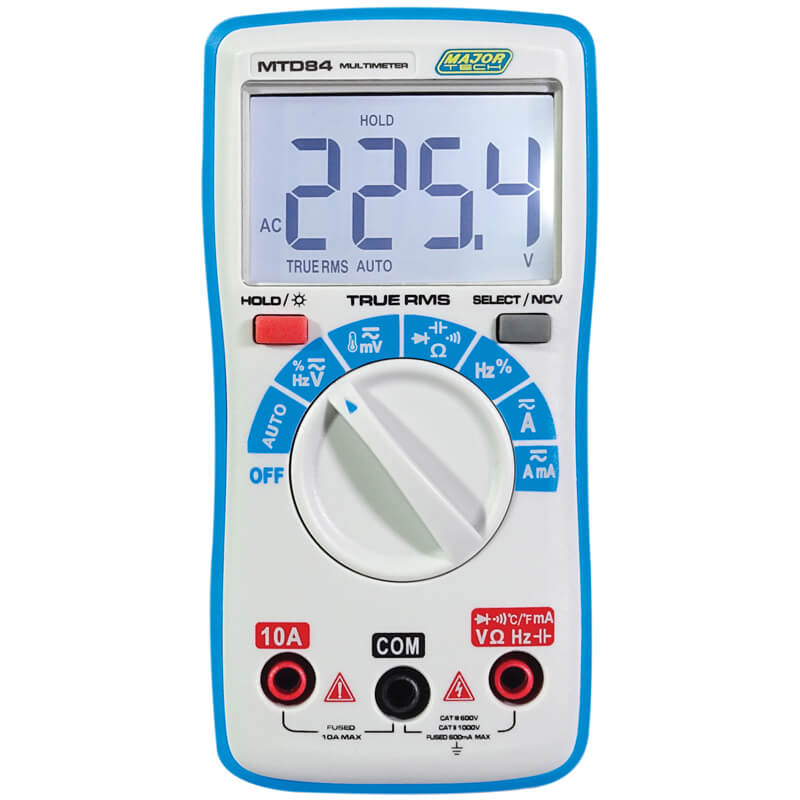

  • 6000 count with backlit LCD display
  • Smart Mode automatically identifies DCV, ACV, Resistance and continuity
  • DC Voltage 1000V
  • AC Voltage 750V
  • AC and DC Current 10A
  • Duty Cycle 99%
  • Resistance 60Mꭥ
  • Temperature -20- 1000°C
  • Frequency 10MHz
  • Capacitance 9.999mF
  • REL mode and Data Hold
  • Auto Power Off
  • NCV – Non-Contact Voltage Detector
  • Tilt stand

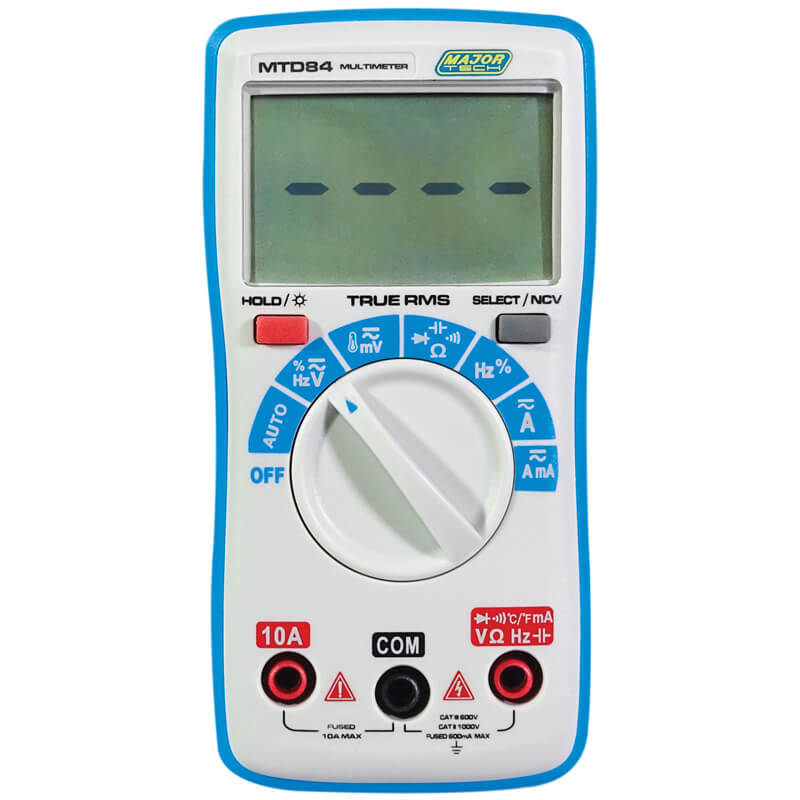

The MTD84 is a compact True RMS auto ranging multimeter with a 6000 count LCD backlit display. The Smart mode, “AUTO”, is a function that automatically identifies DC voltage, AC voltage, Resistance and continuity and automatically displays the measurements. There is a built-in Non-Contact voltage detector, by pressing the NCV button continuously the LCD displays “EF” and will display “—-” when voltage is detected and the buzzer sounds. This meter meets the International Standard IEC 61010-1 CAT III 600V, and is ideally suited for everyday use by electricians, electronic technicians, students and DIY users.

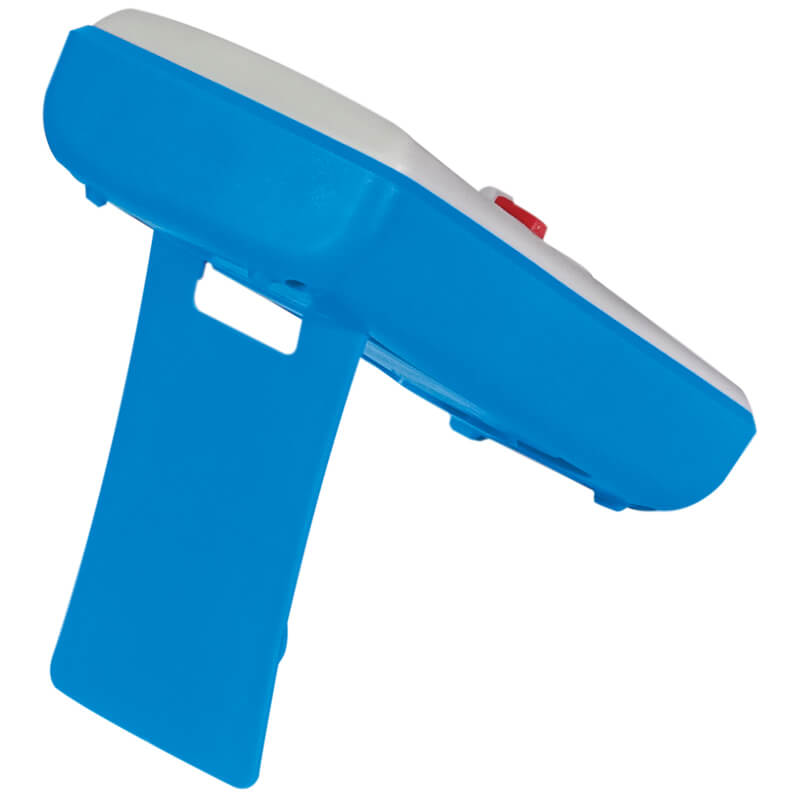

This Auto Ranging Multimeter has a built-in tilt stand for hands free convenience as well as low battery indication and auto power off.

SKU: MTD84 Category:

Specifications

Function Range Resolution Accuracy
DC Voltage 60.00mV – 1000V 0.01mV ± (0.5% + 3 Digits)
AC Voltage 60.00mV – 750V 0.01mV ± (1.0% + 3 Digits)
DC Current 60.00mA-10.00A 0.001A ± (1.2% + 3 Digits)
AC Current 60.00mA-10.00A 0.0001A ± (1.5% + 3 Digits)
Duty Cycle 1% – 99% 0.1% ± (0.1% + 2 Digits)
Resistance 600.0Ω – 60.00MΩ 0.001Mꭥ ± (0.5% + 3 Digits)
Frequency 99.99Hz – 10MHz 0.01Hz ± (0.1% + 2 Digits)
Capacitance 9.999nF-9.999mF 0.001nF ± (2.0% + 5 Digits)
Temperature -20 – 1000°C 1° C ± (2.5% + 5 Digits)
True RMS Measurements Yes
Continuity Yes
Built-in buzzer Yes
Diode test Yes
AC Bandwidth 50Hz to 400Hz
Digital Display LCD 6000 count
Overrange indication Yes
Data Hold Yes
Back Light Yes
Back Light Yes
Enclosure ABS/PVC
Power source 2 x 1.5V AAA battery
Weight 138g (incl battery)
Dimensions 130 x 65 x 32mm
Safety Specs CatIII 600V

Safety Ratings



Accessories

Test Leads
Type-K Temperature Probe
Carrying Case
2 x AAA Batteries
Instruction Manual
