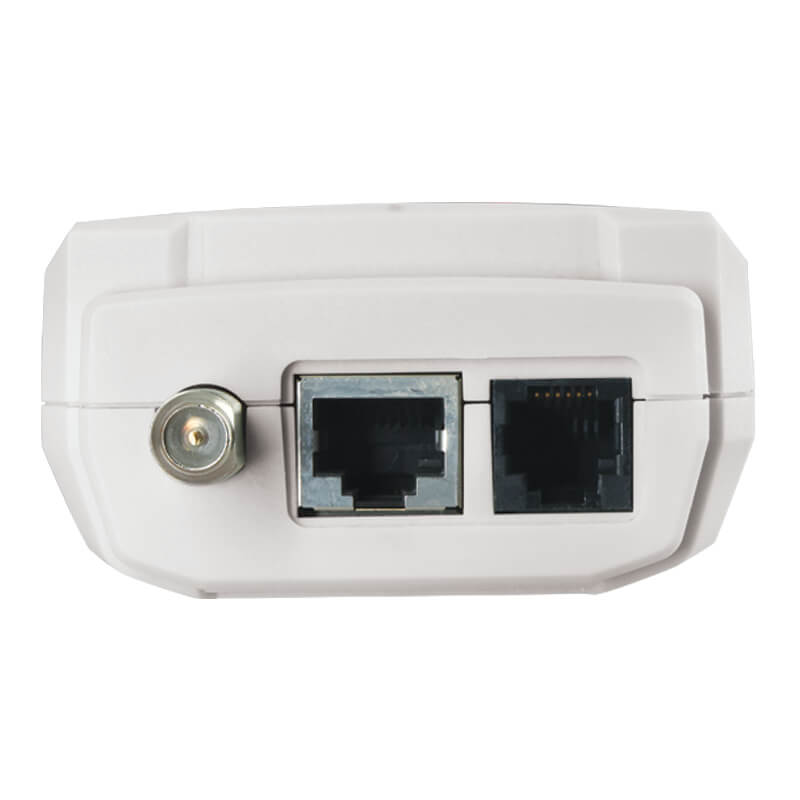

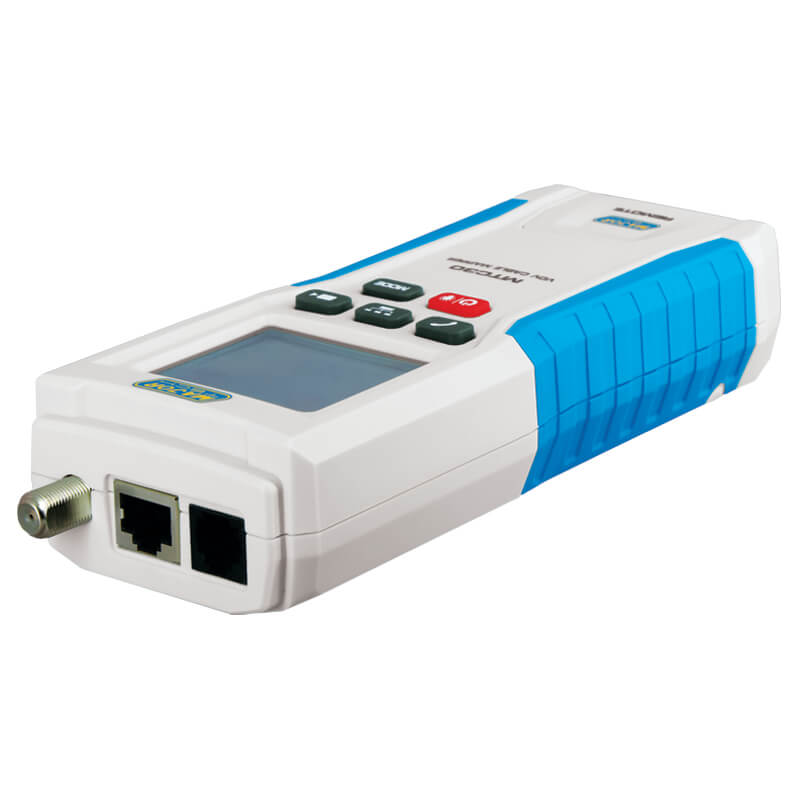

The MTC30 is a Voice (RJ11/RJ12), Data (RJ45) and Video (Coax F-Connector) Cable Mapper and LAN tester that analysers wiring on phone, computer network and coax cables in one easy step. The large backlit LCD display maps out the connections and describes wiring faults. The built-in tone generator which used in conjunction with the optional MTC40 tone probe and the included Video and Data remote identifiers can be used to quickly locate cables in wiring closets and patch panels.
Instruments, Cable & Circuit Testers
Voice Data Video Cable Mapper
Price:
$155.00 ex. GST
$170.50 inc. GST
- Multi-functionality for phone, network, and coax cables.
- Remote identification capability for data and coax cables.
- Built-in tone generator for cable tracing.
- Comprehensive cable testing including wire mapping and fault diagnosis.
- Connection mapping using backlit LCD display for visual representation of cable connections.
- Identifies split pairs, opens, shorts, miswired connections, reversed pairs, and live data cables.
- Trace and locate cables using 3 distinct tones (Lo/Hi1/Hi2).
- Identifies proper and improper wiring (Pass/Fail).

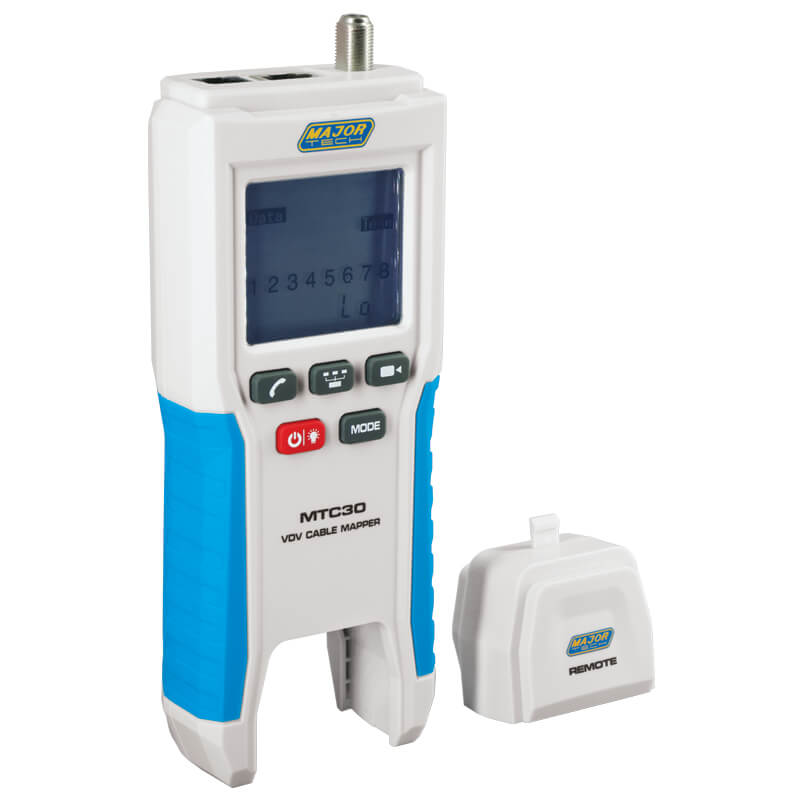

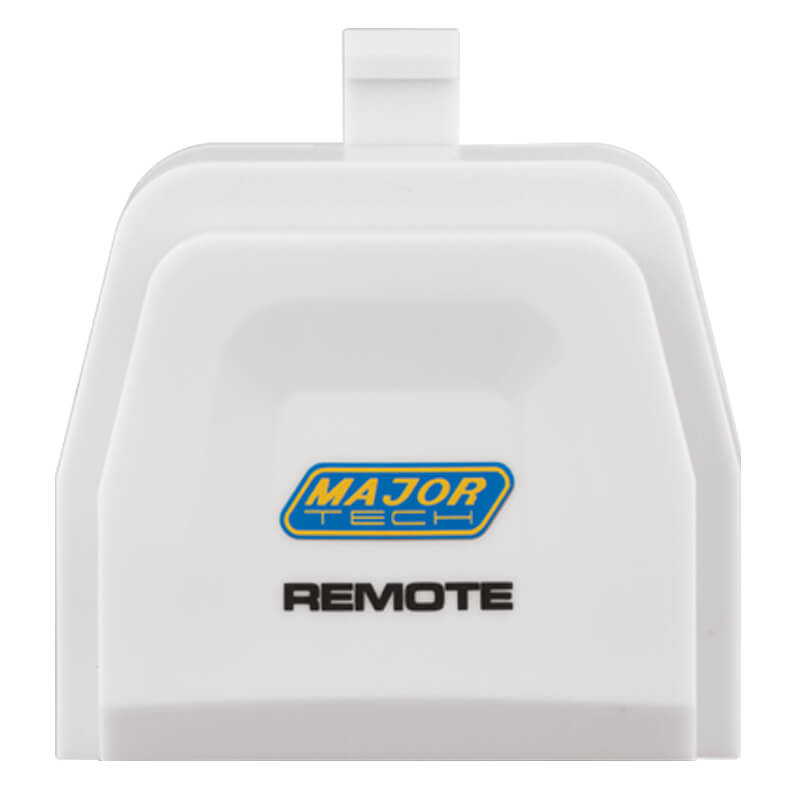

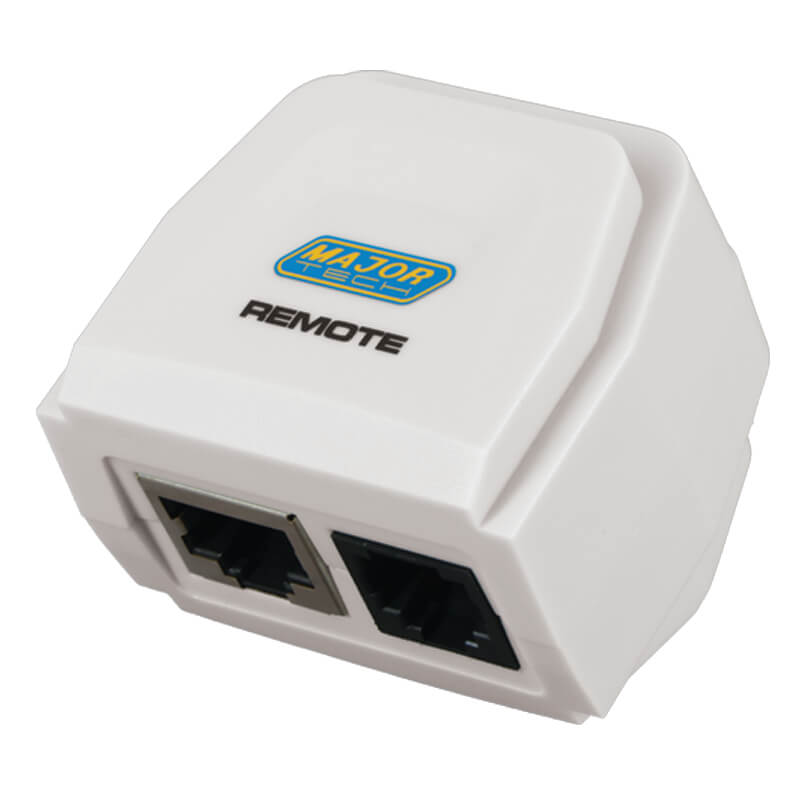

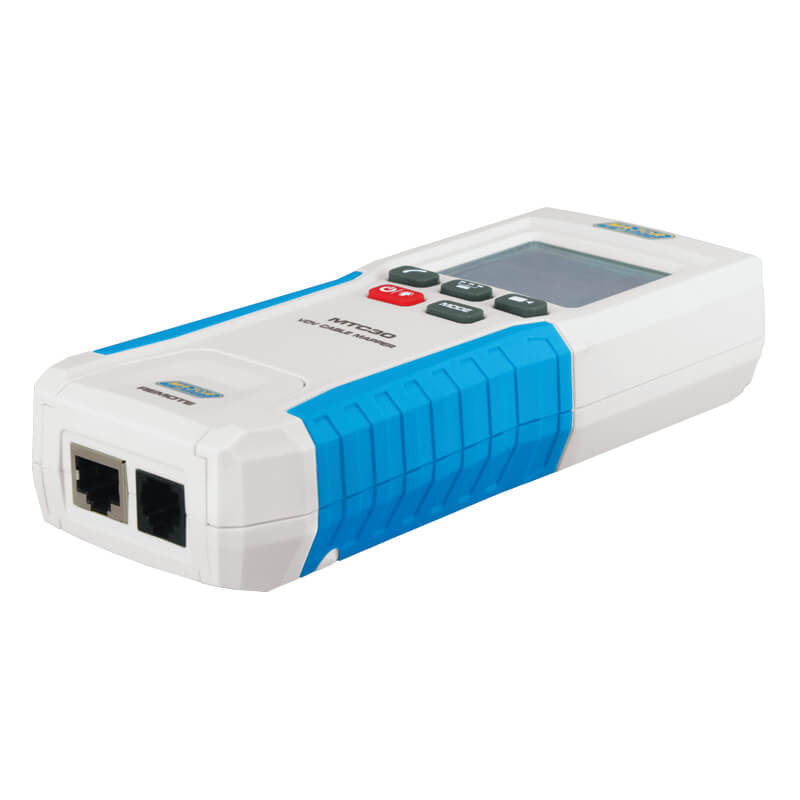

- Detachable Remote Terminator facilitates testing over longer distances.
- Tests various shielded and unshielded cables.
- Tests cables up to 305 meters (1000 feet) with a maximum cable resistance of 100Ω.

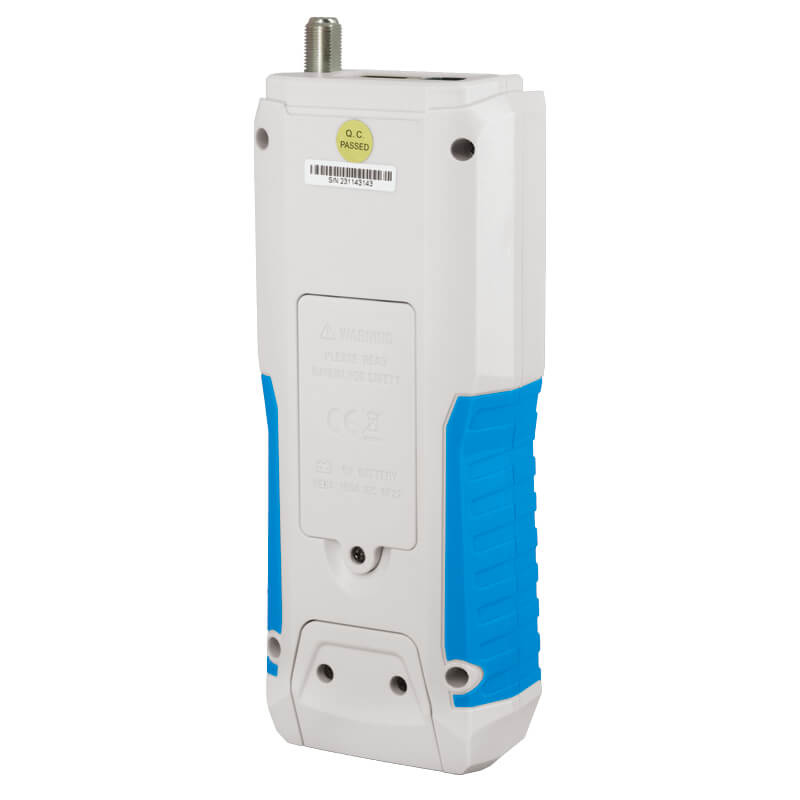

- Low Battery indication when battery replacement is necessary to maintain accuracy.
- Battery powered portable design for ease of use in various environments.
- Optional Accessory : MTC40 tone and probe tester
Specifications
| Functions | Range |
| Cable Type | Shielded or unshielded: Cat 7, Cat 7a, Cat 6a, Cat 6, Cat 5e, Cat 5, Cat 3, Coax |
| Maximum Cable Length | 305m |
| Minimum Cable Length
for Split Pairs |
0.5m |
| Maximum Cable Resistance | 100 ohms maximum DC |
| Maximum Voltage between
any Two Pins without Damage |
60V DC or 55V AC |
| Maximum Coax Cable Resistance | 100 ohms maximum DC |
| Dimensions | 181 x 70 x 38mm |
| Weight | 386g |
Accessories
- RJ45 Remote ID’s
- F-Connector Remote ID’s
- Telephone Patch Cable
- Coax Patch Cable
- Data Patch Cable
- 1 x 9V Battery
- Instruction Manual
