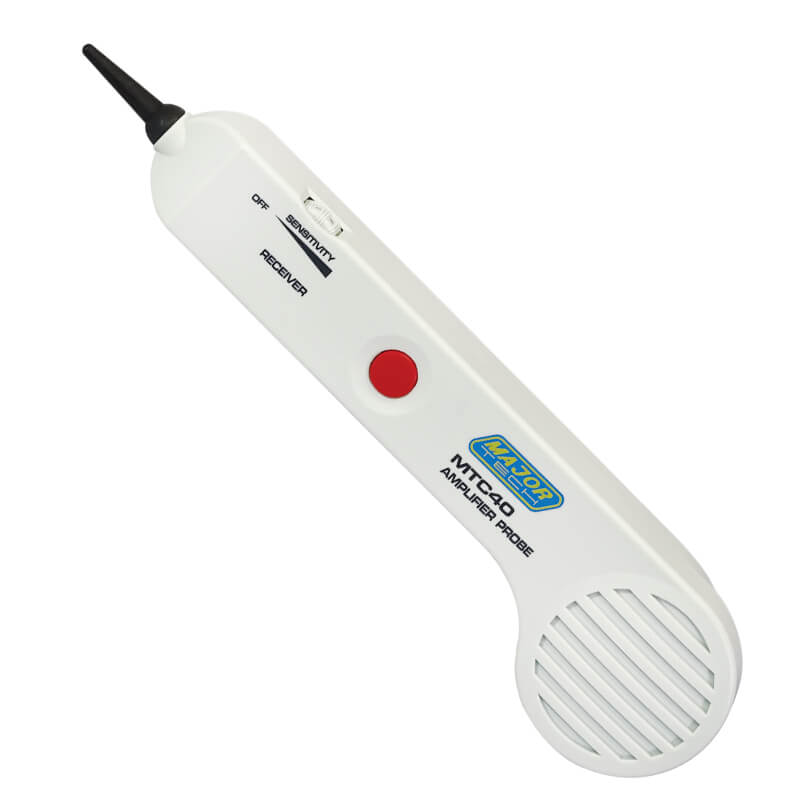

The MTC40 Tone and Probe generator traces cables using a tone generator connected on one side and at the other end the probe. This tests even when cables are in a bundle. It is easily used to verify cable continuity, pair condition, line polarity and voltage in networking cabling systems for CAT5, coax and modular telephone lines.
Cable & Circuit Testers
Tone and Probe Generator
Price:
$127.00 ex. GST
$139.70 inc. GST
- RJ11 modular connectors
- Tracing Telephone, Cable and Wire
- Tone and Probe Tester Cable and Wire, RJ11
- Built-in speaker on probe with sensitivity control
- Traces & identifies wires / cables in a bundle or group
- Insulated inductive probe tip prevents shorting conductors
- Tests include wire trace / continuity test clear / busy / ringing line test and tip/ring identification
Specifications
| Function | Range |
| Tone & Probe Tester | Cable & Wire, RJ11 |
| Tracing | Telephone, cable and wire |
| Continuity | Yes |
| Enclosure | Moulded casing |
| Batteries | 2 x 9V |
| Weight | 270g |
| Dimensions | 231 x 56 x 27mm Probe |
Accessories

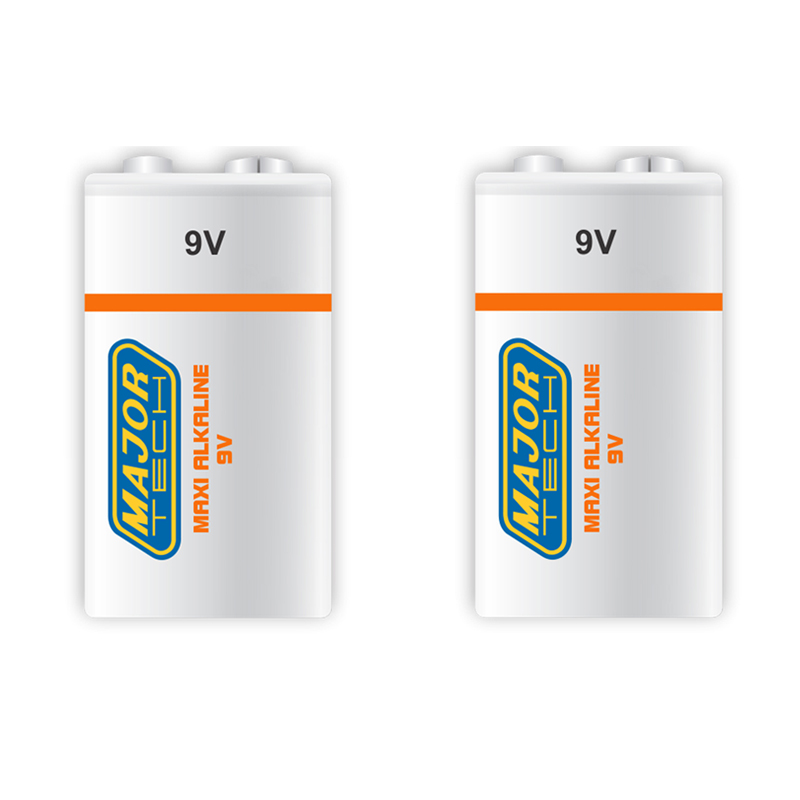

2x 9V Batteries
Instruction Manual
