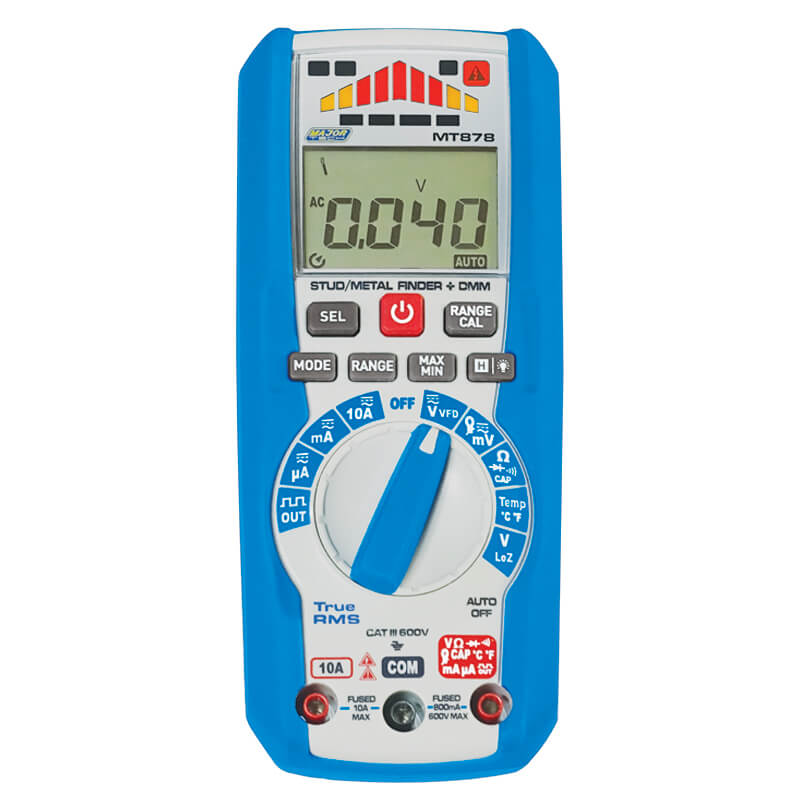

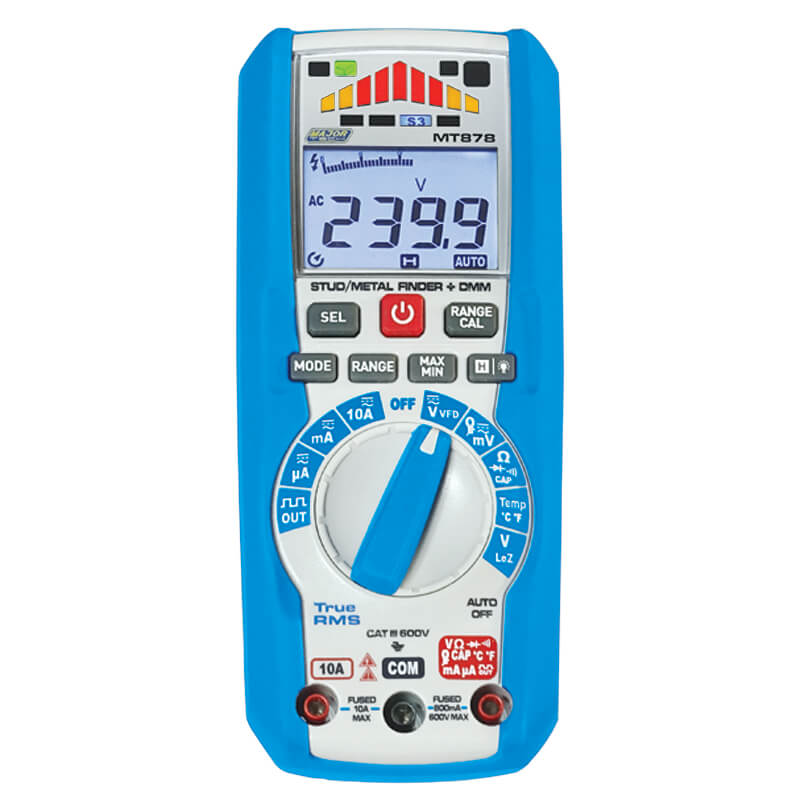

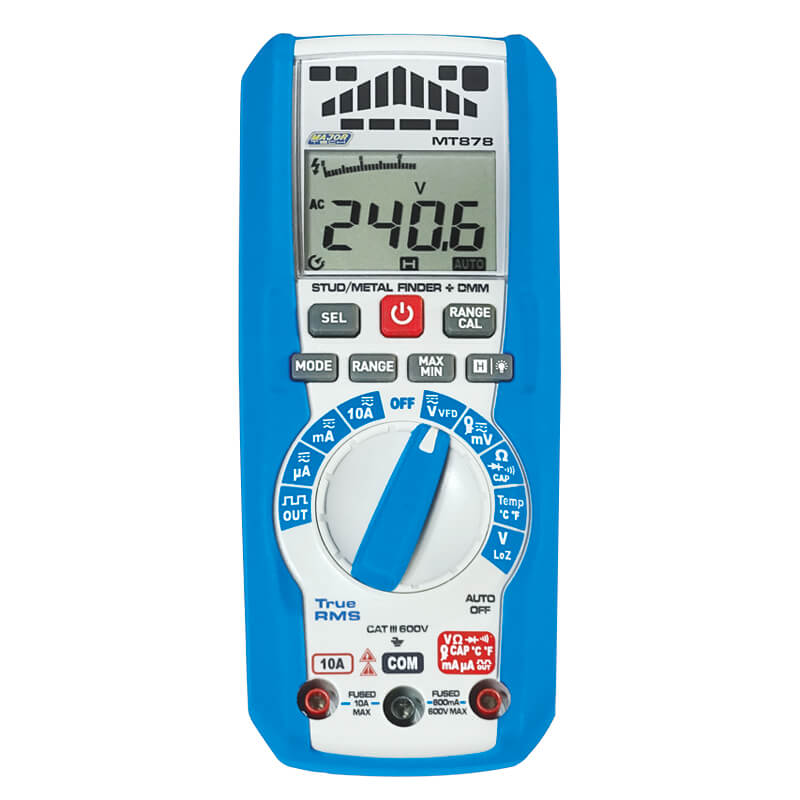

The MT878 is an auto ranging multimeter integrated with a Stud and Metal detector as well a NCV detector, being a useful tool for professionals across diverse industries. Quickly locates studs behind walls, pinpoint metal objects buried in surfaces, and safely detect AC wires with confidence. The DMM function makes it easy to measure AC Volts, DC Volts, AC and DC Current, Resistance, Temperature, Capacitance, Continuity and Diode Test. In addition a LoZ setting eliminates errors caused by “ghost” voltages. The meter also has a clamp adaptor range which allows the optional MT783 to extend current reading up to 400A AC and DC.
Instruments, Multimeters
Stud/Metal Finder with Multimeter
Price:
$249.00 ex. GST
$273.90 inc. GST
- Stud Scanning Range from 0-38mm² through drywall
- Metal Scanning Range from 0-76mm²
- Live Unshielded AC Wire Scanning Range from 0-50mm²
- Measures TRMS ACV and DCV up to 600V
- Measures TRMS ACA and DCA up to 10A
- Measures Reistance, Capacitance, Frequency, Duty Cycle and Temperature
- LoZ AC/DC Voltage Setting used to check for “ghost” voltages caused by capactive coupling
- Square Wave output for clean frequency output, control and digital logic testing
- Current Clamp Measurement extends current measurement when using the optional MT783 400A AC/DC Clamp Adaptor
Specifications
| Function | Range | Resolution | Accuracy |
| DC Voltage | 40.00mV – 600V | 0.01mV | ±(0.5% +8) |
| AC Voltage | 40.00mV – 600V | 0.01mV | ±(1.2% +3) |
| DC Current | 400.0µA – 10A | 0.1µA | ±(2.0% +3) |
| AC Current | 400.0µA – 10A | 0.1µA | ±(2.5% +3) |
| Current Clamp | 40.00A – 400A | 0.01A | ±(2.8% +10) |
| Resistance | 400.0Ω – 40MΩ | 0.1Ω | ±(2.5% +8) |
| Frequency | 9.999Hz – 9.999MHz | 0.001kHz | ±(1.2% +5) |
| Capacitance | 99.99nF – 10mF | 0.01nF | ±(3.5% +5) |
| Temperature | 18⁰C – 1000⁰C | 1°C | ±(1.5% +5⁰C) |
| Square Wave Output | 50Hz – 10kHz | ±(1.2% +5) | |
| Stud Scanning Range | 0-38mm | ||
| Metal Scanning Ferromagnetic | 0-76mm | ||
| Metal Scanning Non-Ferromagnetic | 0-38mm | ||
| Live Unshielded AC Wire Scanning | 0-50mm | ||
| Duty Cycle | 0.5% to 99.9% | 0.1% | ±(1.2% +5) |
| Size | 165 x 70 x 45mm | ||
| Weight | 326g | ||
Accessories
- Type-K Probe & Adaptor
- Test Leads
- Carrying Case
- 9V Battery
- Instruction Manual
