SKU: MT950

Non-Contact Tachometer


Price:
$154.00 ex. GST
$169.40 inc. GST

  • Fast and accurate non-contact RPM and surface speed measurements of rotating objects.
  • Two test modes: rotate speed mode (unit: RPM) & count mode (unit: Rev)
  • Detection distance 50 – 500mm
  • 5 Digit backlit LCD Display
  • Auto Range
  • Data Hold
  • 40 Measurement Data Records
  • Memory recall: Min / Max / Last Stored Value
  • Built-in laser spot

The MT950 provides fast and accurate non-contact revolutionary measurements for rotating objects. Using reflective tape on an object to be measured, simply point the laser at the object, the tachometer RPM will then measure up to a maximum of 100,000 revolutions with an accuracy of ±0.05% and a fast sampling time of 0.5 seconds. The MT950 has a built-in memory that recalls the Min/Max and last value stored. The meter can also be used as a Total TOT counter where the meter can be set up to count passing objects. The MT950 is lightweight and easy to operate.

SKU: MT950 Category:

Specifications

Function Range Resolution Accuracy
Non-Contact Test Range 2 to 99 999RPM 0.1RPM ± (0.05% + 1 Digit)
Count Range 1 – 99 999 REV
Sampling Time 0.5s (over 120RPM)
Detection Distance 50mm – 500mm
Time Base Quartz crystal
Digital Display 5 Digit LCD
Overrange Indication Yes
Min Max Yes
Data Hold Yes
Back Light Yes
Enclosure Over mould
Low Battery Indication Yes
Batteries 9V
Weight 151g
Dimensions 160 x 58 x 39mm

Accessories

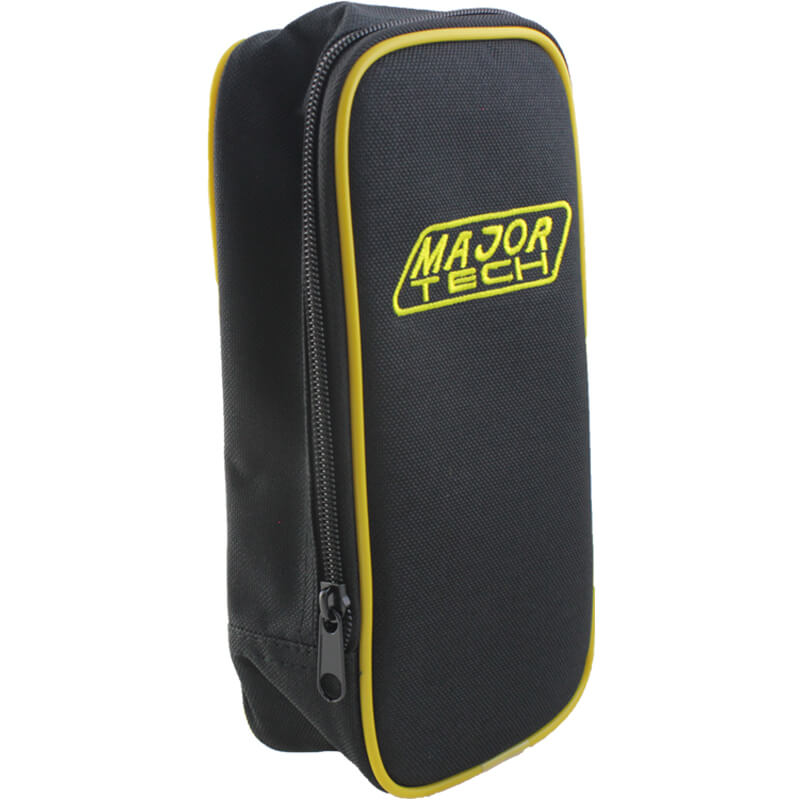

Carrying Case
3x MT905 – Reflective Tape

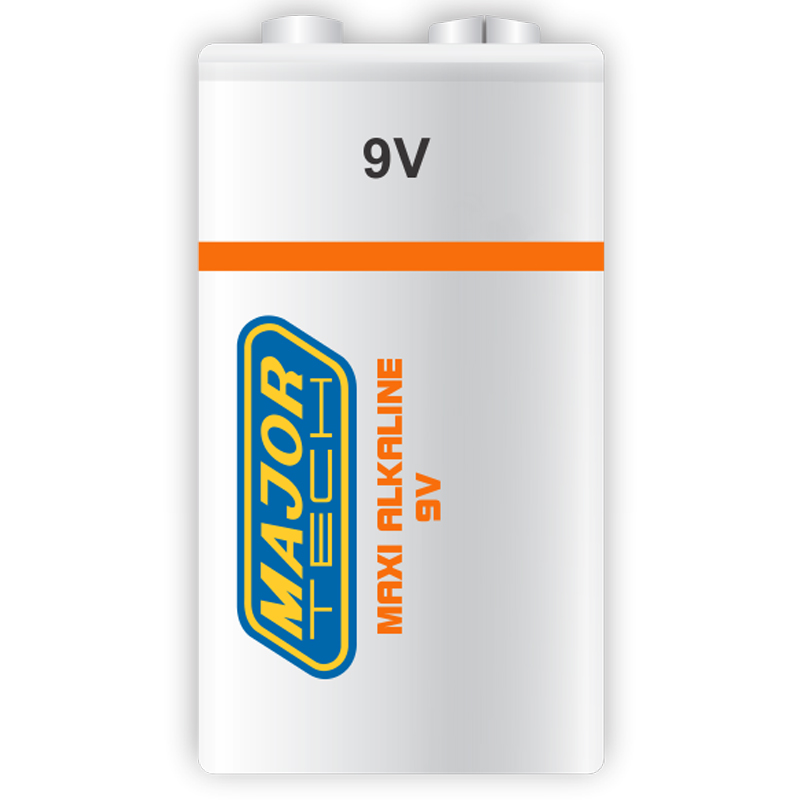

9V Battery
Instruction Manual

Downloads
