SKU: MT945

Hot Wire Thermo Anemometer

Price:
$525.00 ex. GST
$577.50 inc. GST

  • Thermal anemometer, for low air velocity measurement
  • Combination of hot wire and standard thermistor deliver rapid, precise measurements
  • Slim probe ideal for grillers and diffusers
  • Air Velocity m/s 0.1 – 25 m/s
  • Air Velocity km/h 0.3 – 90 km/h
  • Air Velocity ft/min 20- 4925 ft/min
  • Air Velocity mph 0.2 – 55.8 mph
  • Air Velocity Knots 0.2 – 48.5 knot
  • Air Temperature 0°C to 50°C
  • Max / Min
  • Recall / Data Hold
  • Thermistor sensor for temperature measurement – fast response
  • Displays air velocity and temperature simultaneously
  • Air flow measure in mph, ft/min, MPH, km/h, m/s or knots
  • Microprocessor circuit for maximum accuracy
  • Large LCD with back light
  • Provides fast and accurate readings

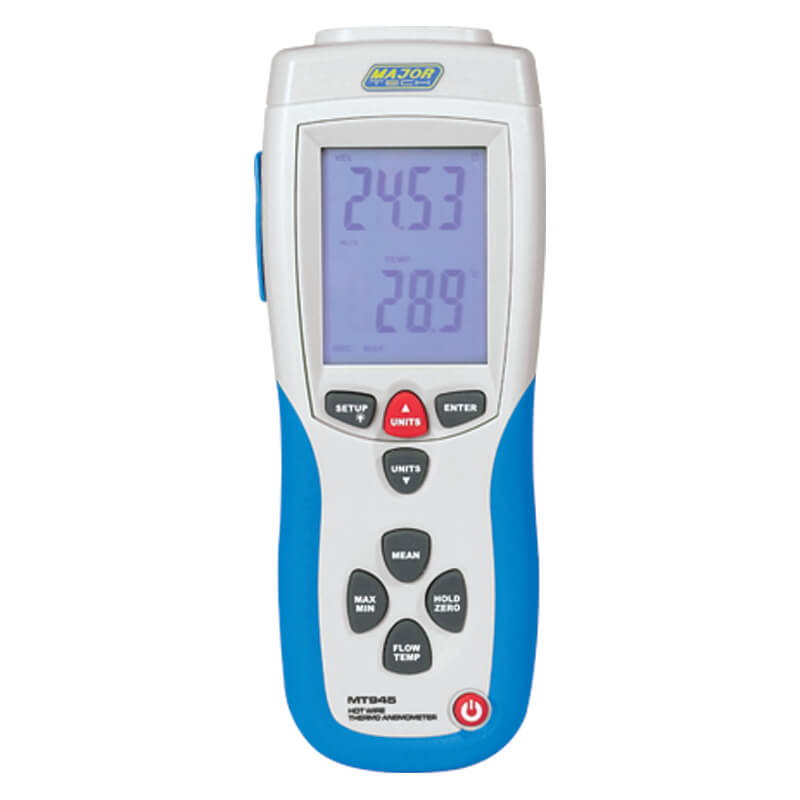

The MT945 Hot Wire Thermo Anemometer is a microprocessor-based device designed to simultaneously measure low air velocity and air temperature. It utilizes a combination of a hot wire and a standard thermistor to provide quick and accurate measurements. The slim telescopic anemometer probe is well-suited for use in ducts and ventilation systems. Monitoring air velocity and temperature readings together has never been more convenient, thanks to the large backlit LCD display. Additionally, the MT945 can record maximum and minimum readings, allowing you to recall and hold data. Uploading and storing the measured values into your computer is effortlessly accomplished through the built-in USB interface.

SKU: MT945 Categories: ,

Specifications

Function Range Resolution Accuracy
Air Velocity m/s 0.1 – 25.0 m/s 0.01m/s ±(5%+1) or ±(1%+1) full scale
Air Velocity km/h 0.3 – 90.0 km/h 0.1km/h ±(5%+1) or ±(1%+1) full scale
Air Velocity ft/min 20 – 4925 ft/min 1ft/min ±(5%+1) or ±(1%+1) full scale
Air Velocity mph 0.2 – 55.8 mph 0.1mph ±(5%+1) or ±(1%+1) full scale
Air Velocity knots 0.2 – 48.5 knots 0.1 knots ±(5%+1) or ±(1%+1) full scale
Air Temperature 0 – 50°C 0.1°C ±(1.0°C)
Display Dual Function 4-digit LCD
Min Max Ave Yes
Overrange Indication Yes
Data Hold Yes
Back Light Yes
Enclosure Over moulded casing
Low Battery Indication Yes
Battery 9V
Weight 280g
Dimensions 210 x 75 x 50mm

Accessories

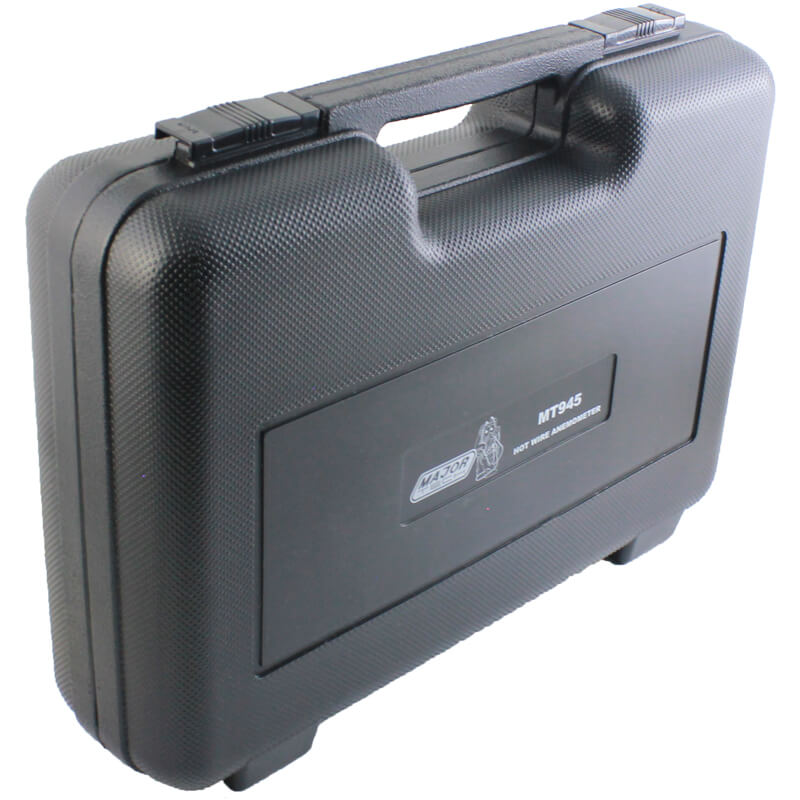

Carrying Case
9V Battery
Instruction Manual

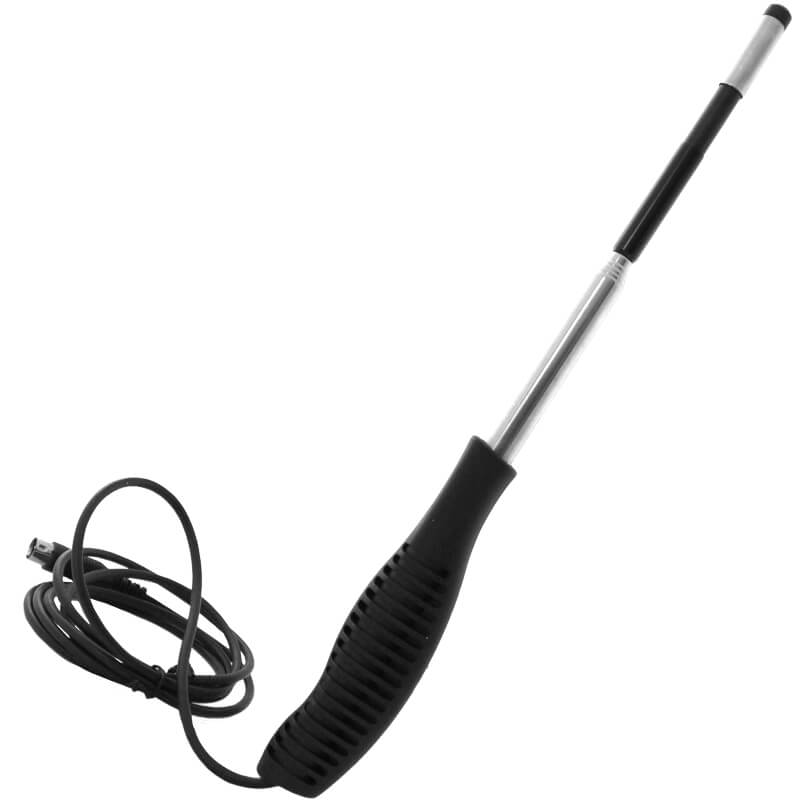

Anemo Probe

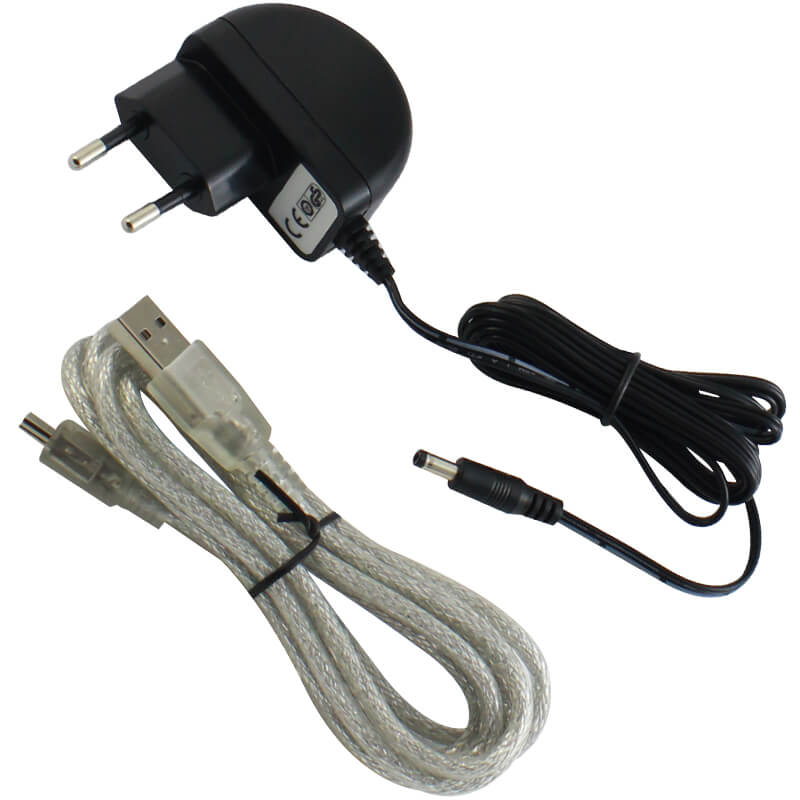

Power Adaptor
