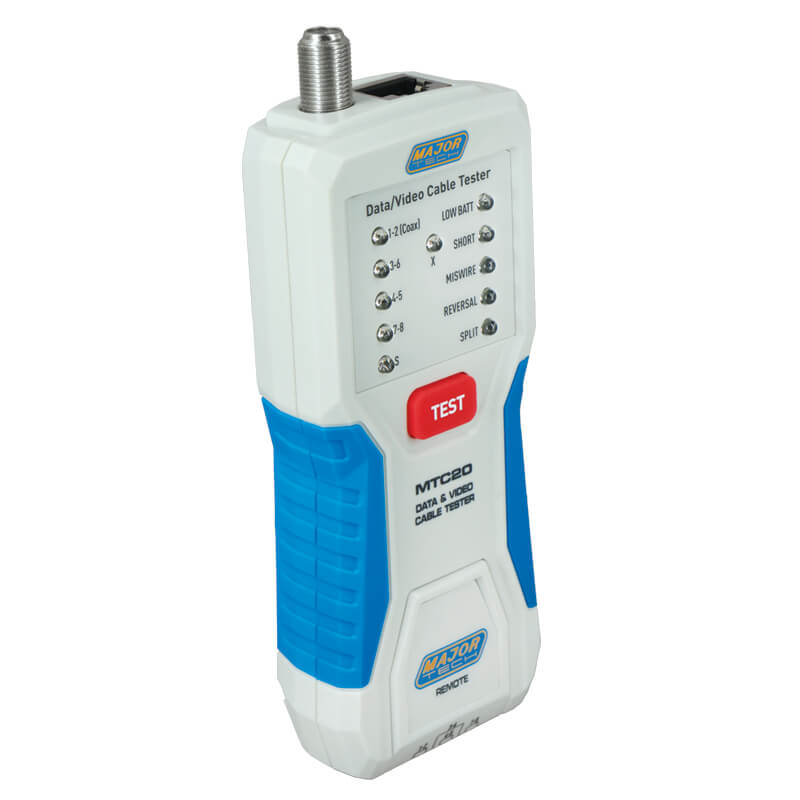

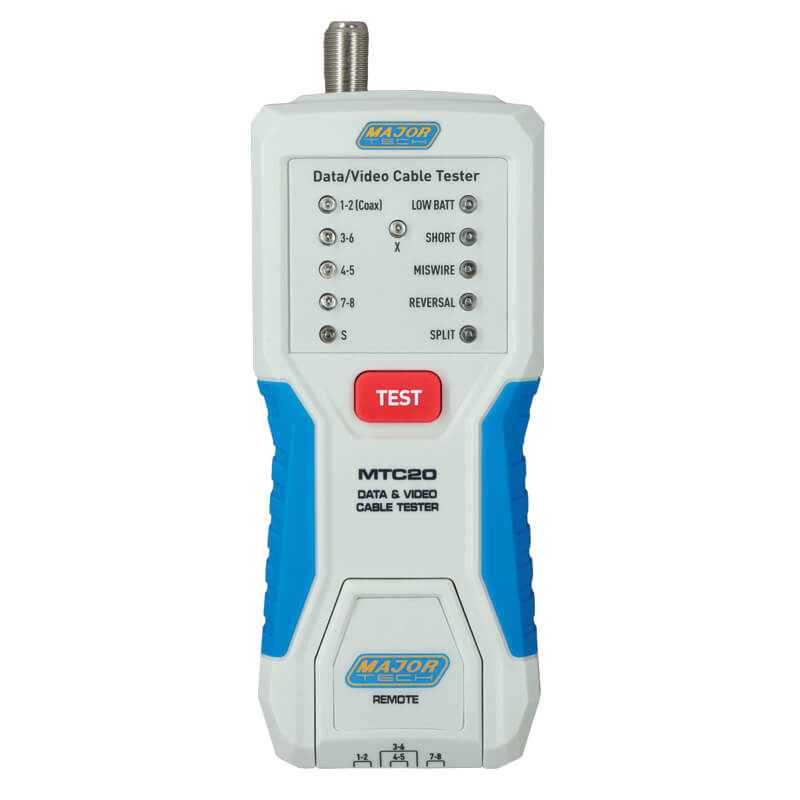

The MTC20 Data/Video Cable Tester is your ultimate solution for ensuring flawless data and video connections. Designed to quickly verify and locate
wiring faults on RJ45 terminated network cables and coaxial cables terminated with F connectors, this versatile tester is an essential tool for IT
professionals, network technicians, and audio/video installers. The MTC20 features comprehensive debugging capabilities and a detachable remote
terminator, allowing you to identify split pairs, opens, shorts, miswired connections, and reversed pairs with ease. With intuitive LED indicators and a
robust design, this tester ensures years of dependable service. Whether you’re setting up a new network, troubleshooting existing connections, or
verifying installations, the MTC20 is your go-to tool for reliable, accurate, and efficient cable testing.
Instruments, Cable & Circuit Testers
Data Video Cable Tester
Price:
$75.00 ex. GST
$82.50 inc. GST
- LED indicators provide clear, immediate feedback on cable status.
- Identifies split pairs, opens, shorts, miswired connections, and reversed pairs.

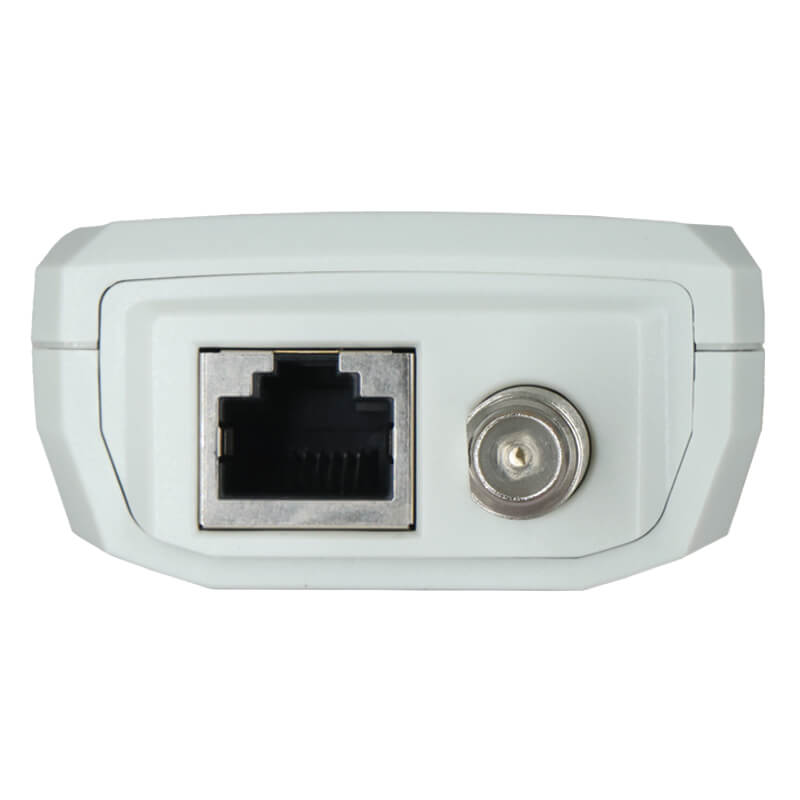

- Suitable for RJ45 terminated network cables and coax cables with F connectors.

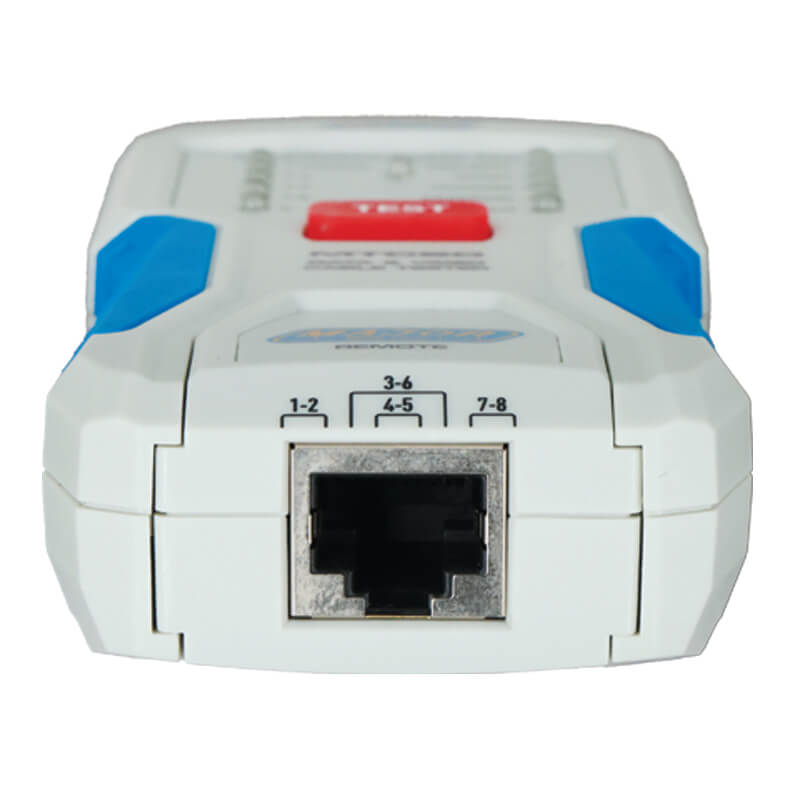

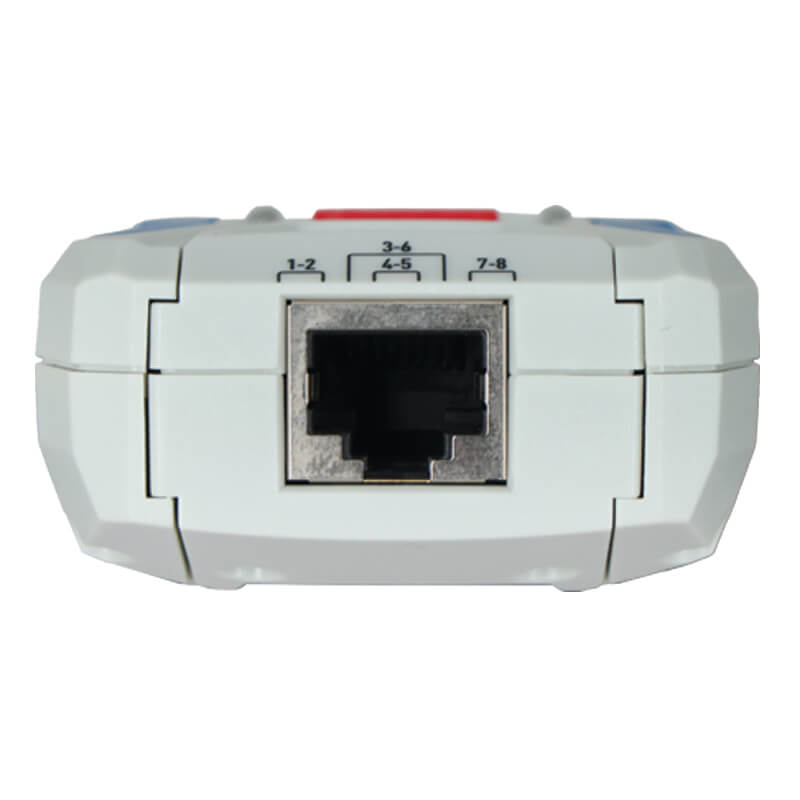

- Detachable Remote Terminator facilitates testing over longer distances.
- Tests various shielded and unshielded cables and has a shield status indicator.
- Tests cables up to 305 meters(1000 feet) with a maximum cable resistance of 100Ω.
- Low battery indication when battery replacement is necessary to maintain accuracy.

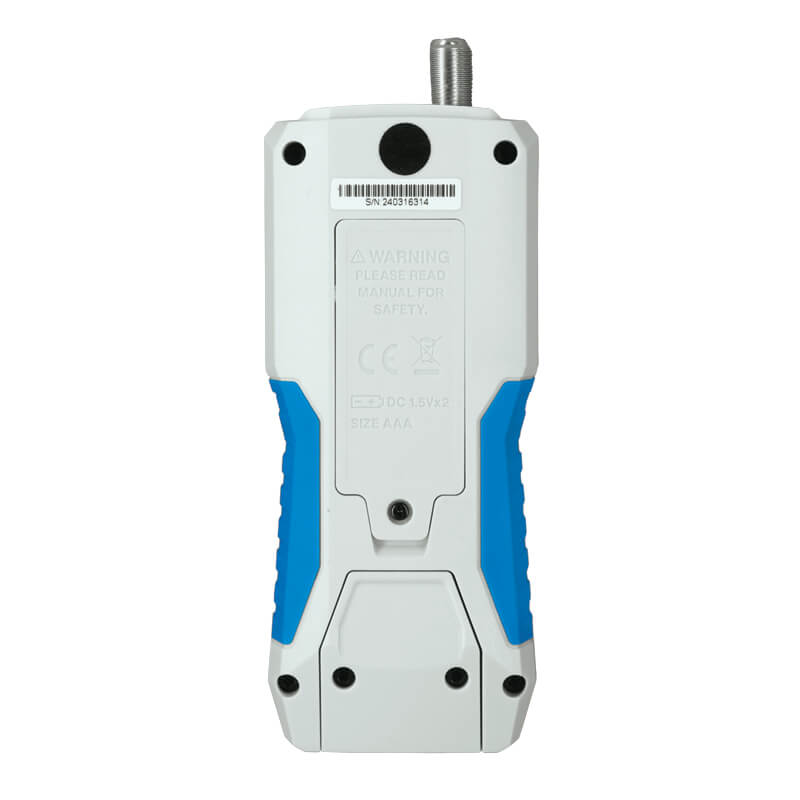

- Battery powered portable design for ease of use in various environments.
Specifications
| Function | Range |
| Cable Type | Shielded or unshielded: Cat 7, Cat 7a, Cat 6a, Cat 6, Cat 5e, Cat 5, Cat 3, Coax |
| Maximum Cable Length | 305m |
| Minimum Cable Length
for Split Pairs |
0.5m |
| Maximum Cable Resistance | 100 ohms maximum DC |
| Maximum Voltage between
any Two Pins without Damage |
60V DC or 55V AC |
| Dimensions | 141 x 55 x 28mm |
| Weight | 122g |
Accessories
- Batteries
- Instruction Manual
