SKU: MTD80

Compact True RMS Auto Ranging Multimeter


Price: $46.20

  • CAT III 300V and CAT II 500V
  • 4000 count with backlit LCD display
  • Smart Mode automatically identifies DCV, ACV, resistance and continuity
  • Measures AC and DC voltage up to 600V
  • Measures AC and DC current up to 10A

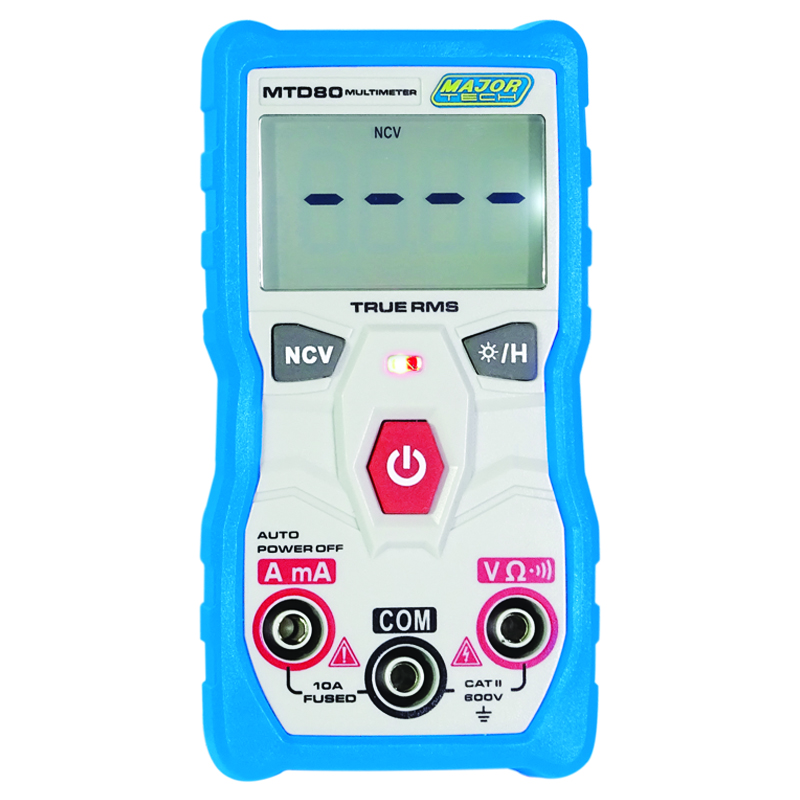

  • NCV – Non-Contact Voltage Detector
  • Continuity buzzer
  • Data Hold function
  • Auto Power Off

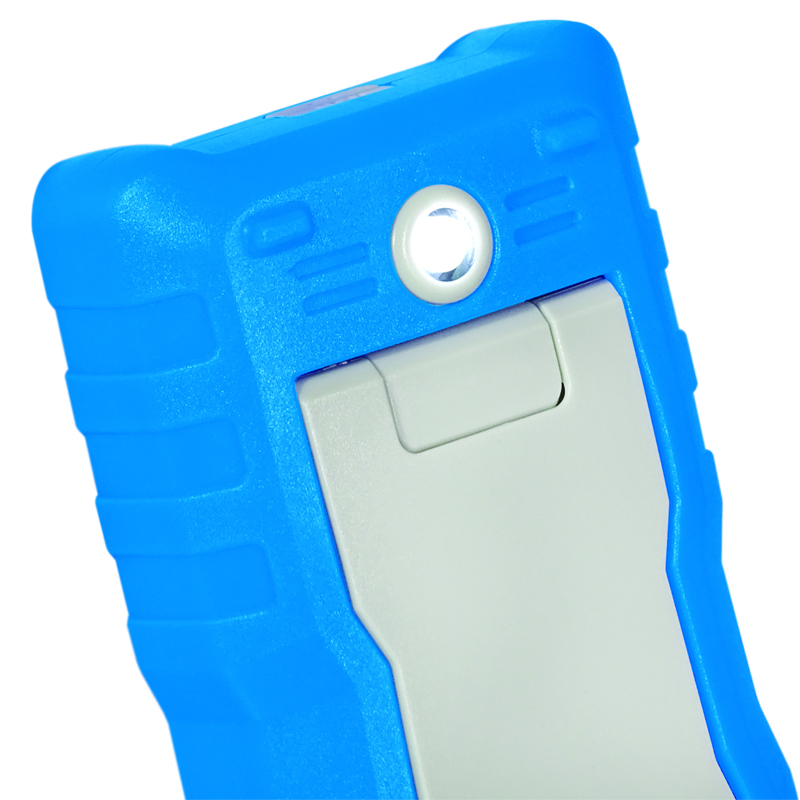

  • Built-In LED Flashlight

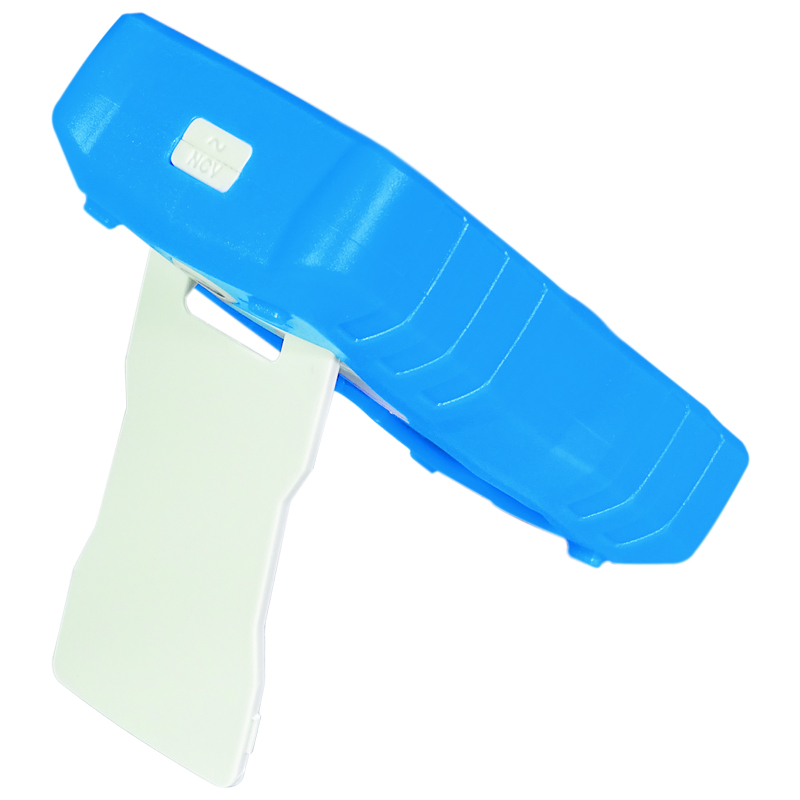

  • Tilt Stand

The MTD80 is a compact True RMS auto ranging multimeter with a 4000 count LCD backlit display. The meter always operates in the Smart mode “AUTO” function that automatically identifies DC voltage, AC voltage, Resistance and continuity buzzer and automatically displays the measurements. There is a built-in Non-Contact voltage detector, by pressing the NCV button continuously the LCD displays “EF” and will display “—-“ when voltage is detected and the buzzer sounds. This meter meets the International Standard IEC 61010-1 CAT II 600V/ CAT III 300V, and is ideally suited for users who want a simple meter to automatically read the measurement of the circuit or system under test. Ideal for everyday use by electricians, electronic technicians, alarm installers, students and DIY users The meter has a rubber holster with a built-in tilt stand for hands free convenience as well as low battery indication and auto power off.

SKU: MTD80 Category:

Specifications

Function Range
DC Voltage 4.000V – 600V
AC Voltage 4.000V – 600V
DC Current 999.9mA – 10A
AC Current 999.9mA – 10A
Resistance 4.000kΩ – 40.00MΩ
True RMS Measurements Yes
Continuity Yes
Built-in Buzzer Yes
AC Bandwidth 40Hz to 1kHz
Digital Display LCD 4000 count
Non-Contact Voltage (NCV) Yes
Overrange indication Yes
Data Hold Yes
Back Light Yes
Back Light Yes
Enclosure ABS
Batteries 2 x AAA
Weight 140g
Dimensions 120 x 62 x 30mm
Safety Specs CAT II 600V

Safety Ratings



Accessories

Test Leads
Carrying Case
2 x AAA Batteries
Instruction Manual
