SKU: ECCT300

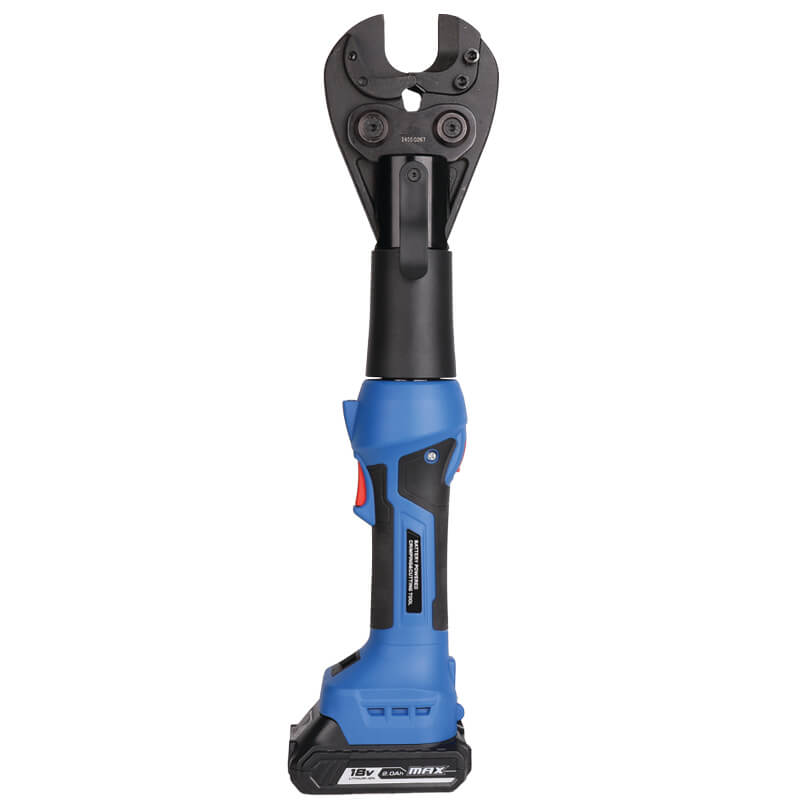

Battery Powered Crimper and Cable Cutter


Price:
$3,950.00 ex. GST
$4,345.00 inc. GST

  • Combined Crimping and Cutting multitool

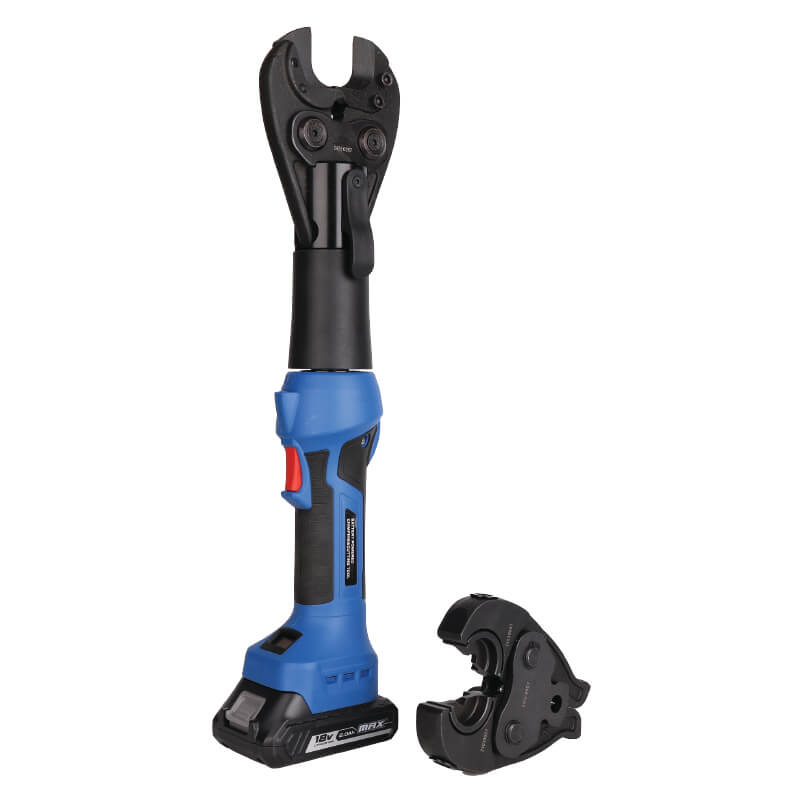

  • Interchangeable Crimping and Cutting Heads
  • OLED Display showing Crimping Time, Electricity Quantity.
  • Maintenance Reminding and Fault Code
  • Crimping Head rotates 350°
  • Two stage hydraulic system: hydraulic ram output provides more force for reliable connection
  • Ergonomic design with light weight and in-line grip
  • Easily work overhead and in tight spaces
  • Max crimping: Copper 300mm² / Aluminium 240mm²
  • NOTE: Not suitable for cutting fine or extra fine stranded cabels
  • **Please note: When selecting die sizes for copper and aluminium, you will use the same dies but reduce the size by one when switching from copper to aluminium. For example, if you are using a 240 mm² die for copper, you would use a 185 mm² die for aluminium.

Step into the future of precision and efficiency with our ECCT300 battery-powered crimper and cable cutter. Built for versatility, the crimping head offers a remarkable 350° rotation, allowing you to maneuver with ease even in the most confined spaces. This flexibility ensures you can position the tool exactly where you need it, making your work simpler and more efficient, regardless of the environment. The ECCT300 features an advanced OLED display, powered by a robust two-stage hydraulic system, the tool delivers exceptional force, guaranteeing strong, reliable connections with every use. Whether you’re working with copper up to 300mm² or aluminium up to 240mm², you can trust this tool to handle the job with precision and consistency.



SKU: ECCT300 Categories: ,

Specification

Function Range
Crimping  Dies 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm²
Rated Pressure 24kN
Stroke 30mm
Crimping Range Cu 16mm² – 300mm²

Al 16mm² – 240mm²

Cutting Range ø30mm Cu/Al Cable (Not suitable for cutting fine or extra fine stranded cables)
Battery 18V Li-ion 2.0Ah
Charger AC 100V – 240V 50/60Hz

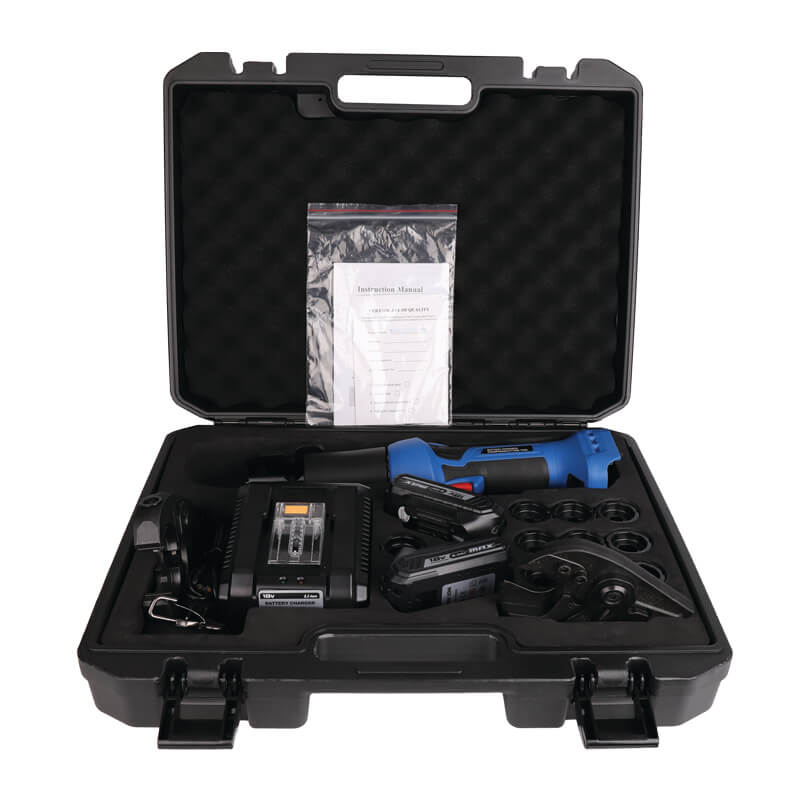

Accessories

  • Crimping & Cutting Tool
  • 1 x Cutting Head
  • 1 x Crimping Head
  • Crimping Dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm²
  • 2 x Batteries
  • 1 x Charger
  • Carrying Case
  • Strap
