SKU: MT250

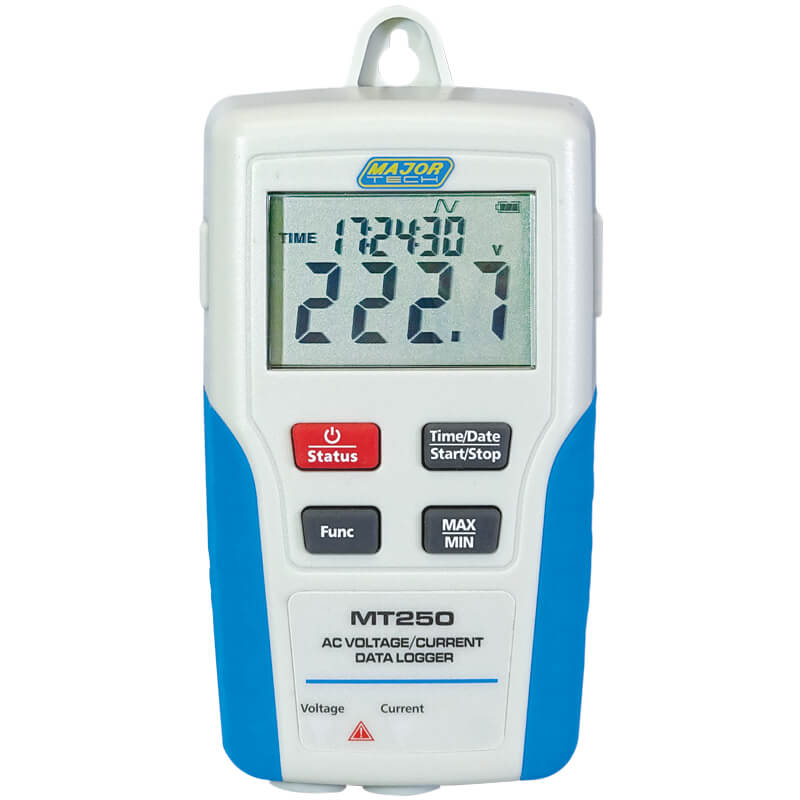

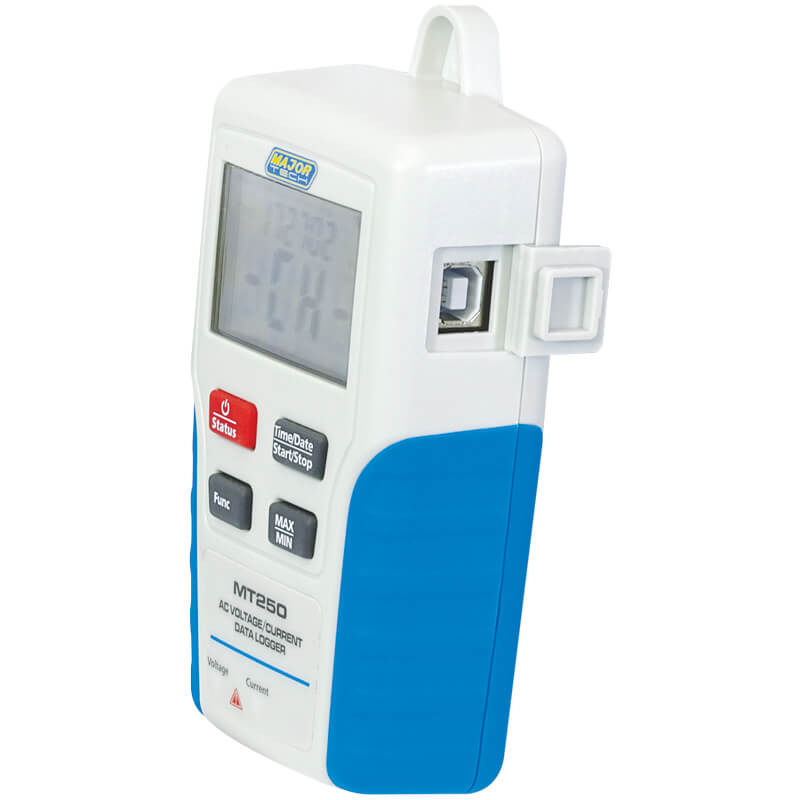

AC Voltage & Current Data Logger

Price:
$345.00 ex. GST
$379.50 inc. GST

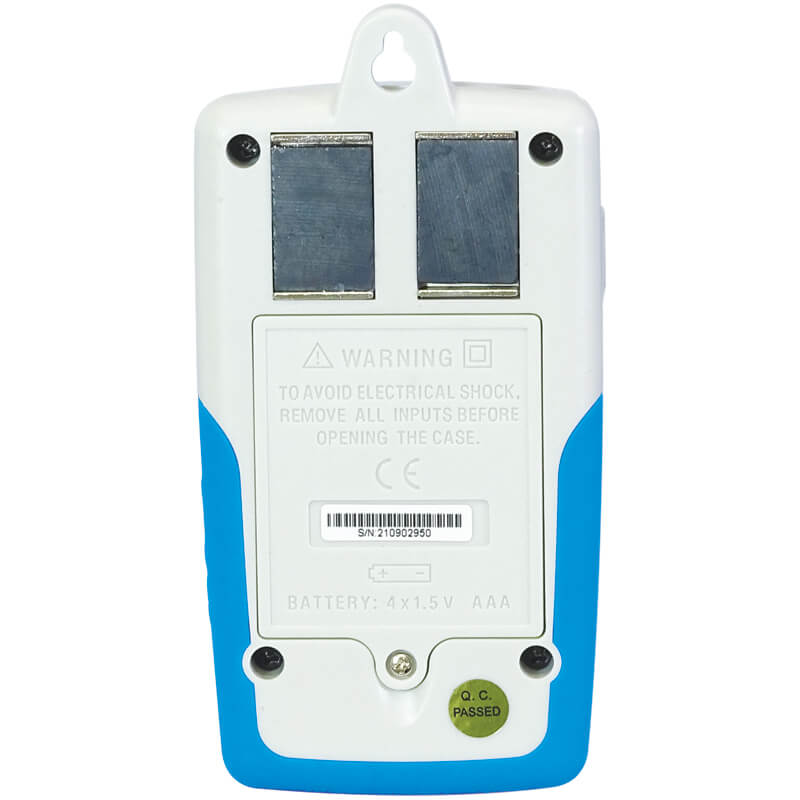

  • Magnetic back plate for easy of attachment to metal surfaces
  • Each channel can record up to 50022 data
  • Voltage RMS 600V
  • Current RMS 200A
  • Crest Factor 2.5 or less: RMS (sine) +2% +1%f.s. 95% or less of each range
  • Frequency 40 – 1KHz
  • Date and Time Stamp
  • Graphical and Printed Text information
  • Battery or AC power supply

The MT250 AC Voltage and Current Data Logger is user-friendly with USB programming, LCD display, and 1-second sampling. It offers precision with single-point calibration, factory-calibrated current and voltage, and storage for 50,022 data points per channel. The magnetic back plate ensures the meter can easily be attached to metal surfaces. Enjoy date and time stamps, graphical and printed text information, and choose between battery or AC power supply. Perfect for electronics, energy management, or industrial maintenance, where precision meets simplicity.

SKU: MT250 Categories: ,

Specifications

Function Range Resolution Accuracy
Voltage (RMS) 6 – 600.0V 0.1V ±(2% ±1V)
Current (RMS) 2 – 200A 0.1A 100mA ±(2.0% ± 0.9%) f.s. +accuracy of sensor
Trigger 100mA ±(3.5% ± 2.2%) f.s. + accuracy of sensor
Capture PQA 100mA ±(3.0% ± 1.7%) f.s. + accuracy of sensor
Crest Factor 2.5 or less: RMS (sine) +2% +1%f.s. 95% or less of each range
Allowable Input 50/60Hz, 10% or more of the range Ch1
Display Range 0-105% of each range
Frequency Range 40 – 1KHz
Wiring Connections 2 Channel
Measurements and Parameters Voltage, Current
Sampling Speed 1second to 24Hour
Internal Memory 100,044 points current or voltage, 50,022 points channel current and voltage
PC Communication USB
Display Range 0-105% of each range
Display Update Period Real time
Enclosure Over Moulded casing
Power Source AC External DC9V (special AC Adapter)
Power Source DC 4 x R6P
Weight 248g
Dimensions 114 x 63 x 34mm
Safety Specs IEC 61010-1 Cat III 300V

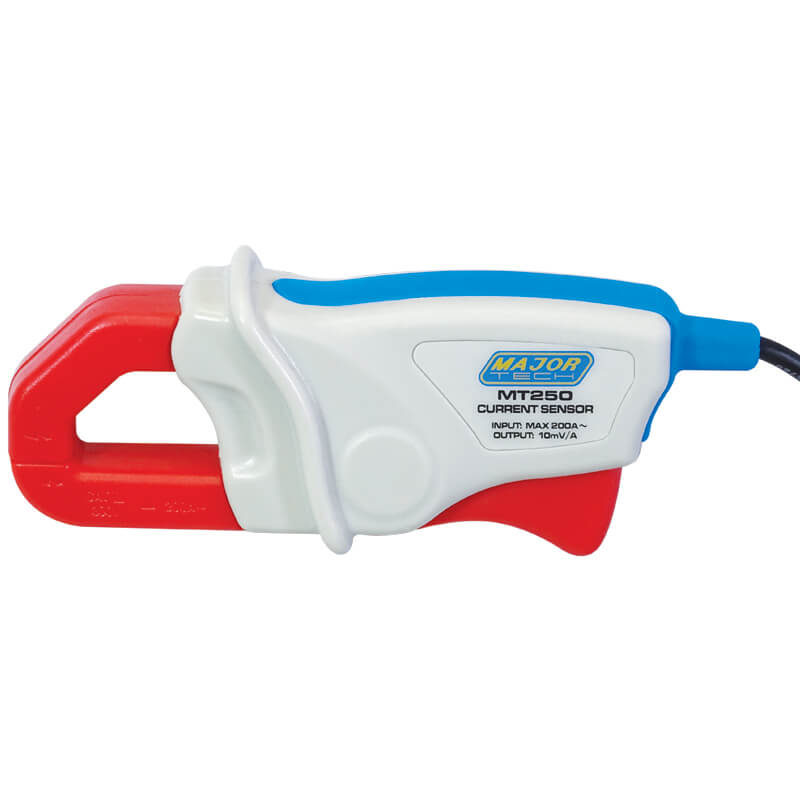

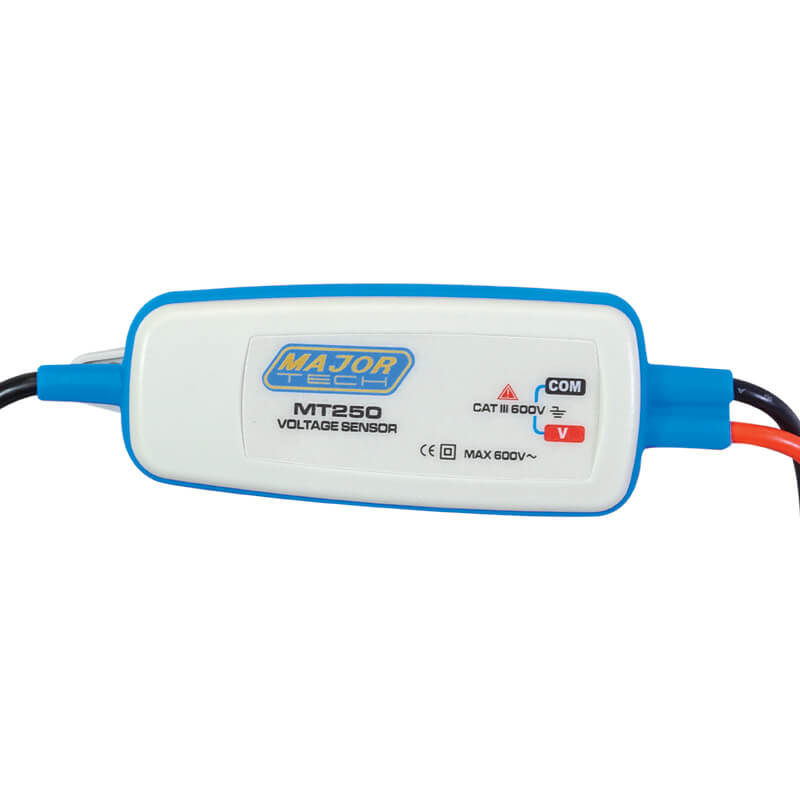

Included Accessories USB Cable, Voltage lead, Current Clamp, Manual, 4 x R6P Batteries

Accessories

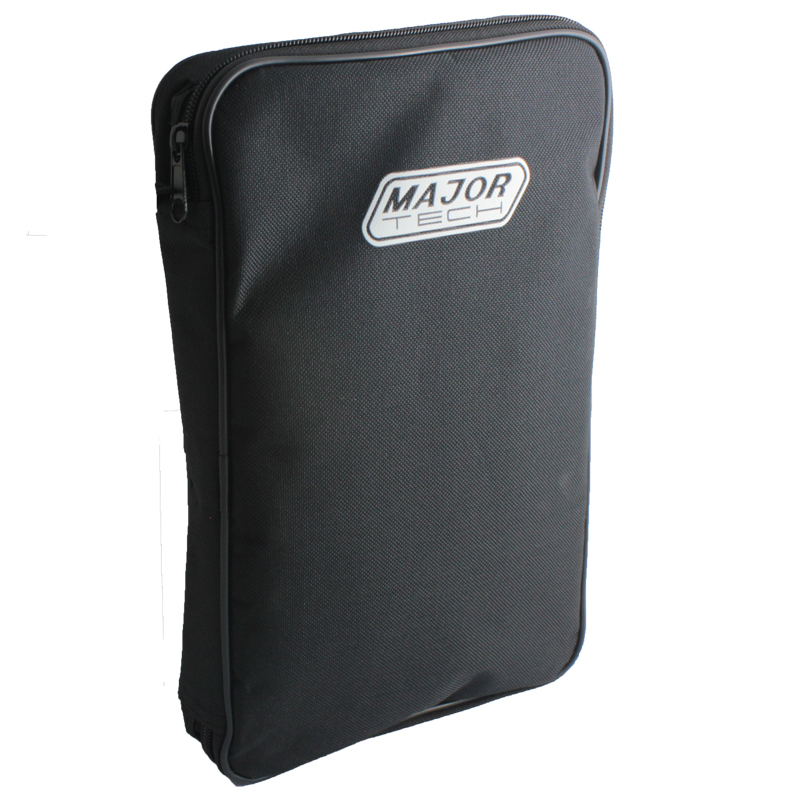

Carrying case

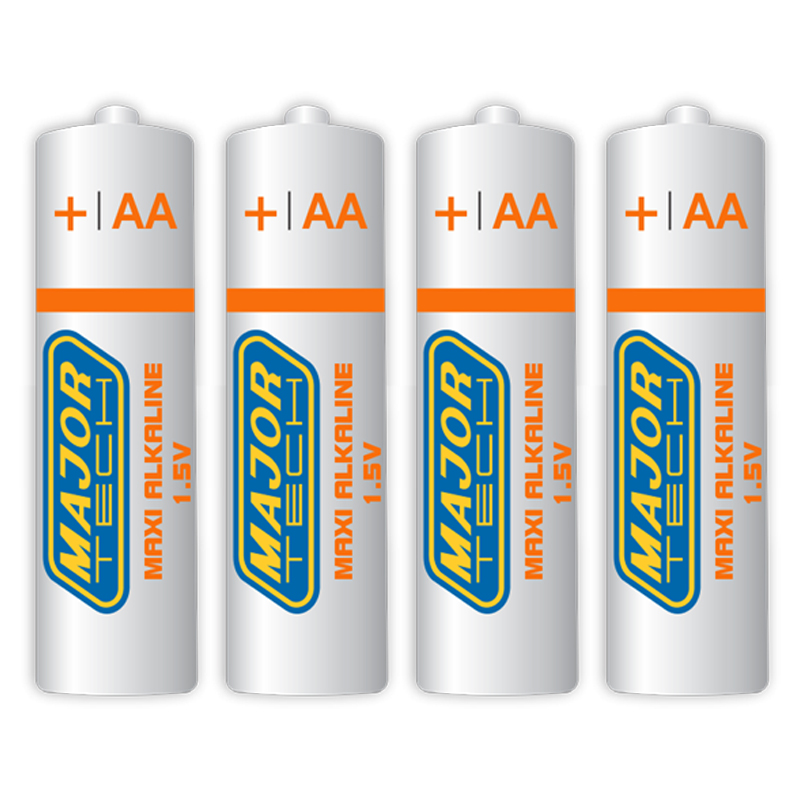

AAA Batteries
Test leads
Instruction manual
USB cable
