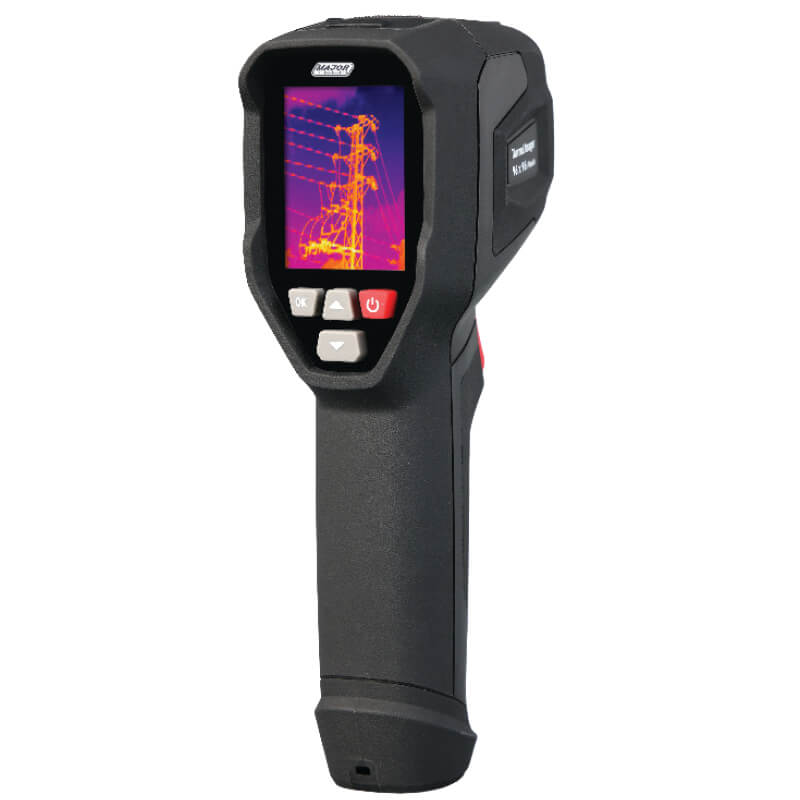

The MTi10 Thermal Imager is a compact, entry-level device ideal for electricians requiring fast and accurate thermal diagnostics. With a 96 x 96 pixel sensor at 25Hz, this focus-free camera makes hot spot detection effortless. The Type-C USB port allows for easy transfer of thermal data to a PC, where it can be analysed and emailed to reduce downtime. Live imaging is also supported when connected to a PC. Features include adjustable emissivity, a temperature range of -20°C to 550°C, centre spot temperature and hot/cold alarms.
Thermal Imaging Cameras
96 x 96 Pixels Thermal Imager
Price:
$595.00 ex. GST
$654.50 inc. GST
- 96 x 96 Pixel Thermal Detector
- 25Hz Image Frequency
- Center Spot Temperature
- 2.0” bright LCD display, 240 x 120 Pixel
- Colour Palettes include Iron, Rainbow, Grey, Grey Inverted, Brown, Blue-Red, Hot-Cold, Feather
- Data transfer between camera and PC and Live video between camera and PC via USB
- Rugged and industrial design casing
- Easy to use functions
Specifications
| Function: | Range: |
| Imaging and Optical Data: | |
| IR Resolution | 96 x 96 Pixel |
| Field Of View | 50° x 50° |
| Spatial Resolution | 8.89mrad |
| Thermal Sensitivity | <0.05°C at +30°C (86°F) / 50mK |
| Image Frequency | 25Hz |
| Focus | Focus Free |
| Image Presentation: | |
| Display | 2.0” LCD, 240 x 120 |
| Image Modes | IR Image |
| Colour Palette | Iron, Rainbow, Grey, Grey Inverted, Brown, Blue-Red, Hot-Cold, Feather |
| Measurements: | |
| Object Temperature Range | -20°C to 550°C (-4°F to 1022°F) |
| Object Temperature Accuracy | ±2°C (3.6°F) or ±2% of reading |
| Measurement Analysis: | |
| Spot | Centre Spot |
| Automatic Hot/Cold Detection | Auto Hot or Cold markers |
| Measurement Corrections | Emissivity, Reflected Temperature |
| Storage: | |
| Storage Media | 8GB Micro SD Card, 3.5GB Internal EMMC |
| Video Storage Format | Standard MPEG-4 encode, 240×320@30fps, on memory card, > 30 minutes |
| Video & Image Storage Mode | IR images |
| Image Storage Format | Standard JPEG or HIR files including measurement data, on memory card > 6000 pictures |
| Image Analysis | Internal Image analyses tools, Complete function |
| Data Communication Interfaces: | |
| Interfaces | USB-Type C |
| USB | Data transfer between camera and PC. Live video between camera and PC |
| Size | 234 x 75 x 100mm |
| Weight | 500g |
Downloads
