SKU: MT474

690V AC/DC Voltage Tester


Price:
$116.00 ex. GST
$127.60 inc. GST

  • CAT IV 600V and CAT III 1000V
  • IP64 waterproof housing
  • AC and DC Voltage 690V
  • Rotary Field 690V AC
  • RCD Test 30mA
  • Continuity test to 200kΩ
  • Phase Rotation
  • LED display
  • Single pole phase test set
  • Low Impedance test
  • Built-in Flashlight
  • Polarity Detection
  • Rotary Field indication

The MT474 is IP64 and is a useful tester designed to meet electrician’s requirements for a multitude of applications. The tester displays the voltage on red LED’s which increment as the voltage increases. There is an LED indication for polarity when DCV is measured. No switching of the meter on as the tester automatically turns on when voltage is applied to the two test probes. The MT474 incorporates a Low Impedance Test, which induces a basic load of approximately 6kΩ at 690 volts. The voltage tester can show the direction of the rotating field with three-phase systems, with the direction of field shown as L = anticlockwise and R = clockwise. The tester can be used as a Single Pole phase tester and measure continuity up to 200kΩ. The MT474 meets the CAT IV 600V and CAT III 1000V safety standards.

SKU: MT474 Categories: ,

Specifications

Function Range Accuracy
DC Voltage 12 – 690V ±(30%)
AC Voltage 12 – 690V ±(30%)
Rotary Field 100 – 690V AC
RCD Test 10mA/30mA
Continuity Yes
AC Bandwidth 50Hz – 60Hz
Digital Display LED Indication
Polarity Indication Yes
Overrange Indication Yes
Low Input Impedance <200kΩ
Flashlight Yes
Enclosure Double injection IP64
Batteries 2 x AAA
Weight 255g
Dimensions 240 x 78 x 40mm
Safety Specs IEC61010-1 CAT IV 600V

Safety Ratings



Accessories

Test probe covers for CAT IV 600V

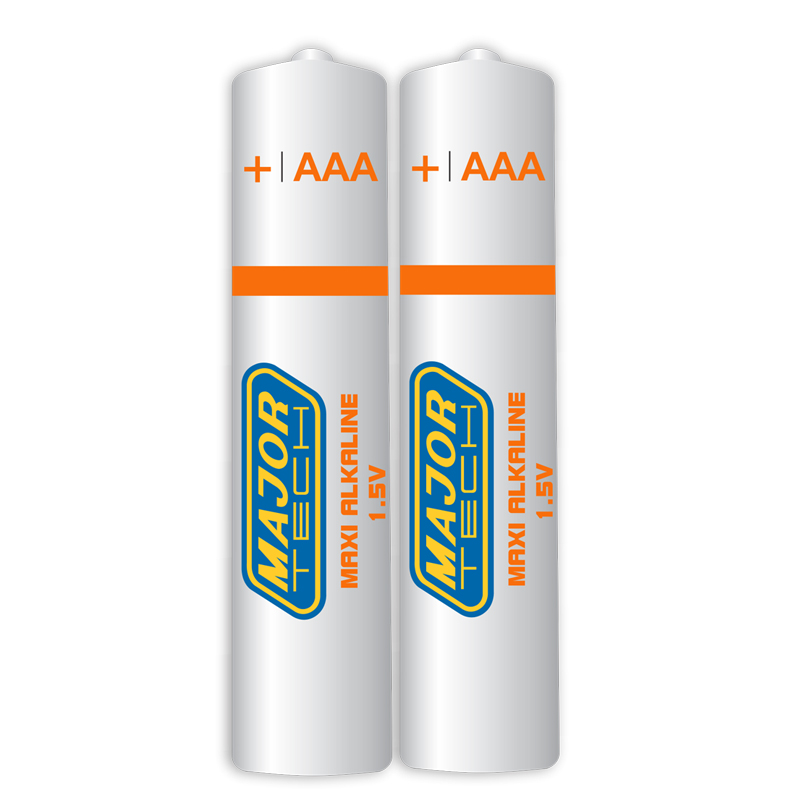

2 x AAA Batteries
Instruction Manual

Downloads
