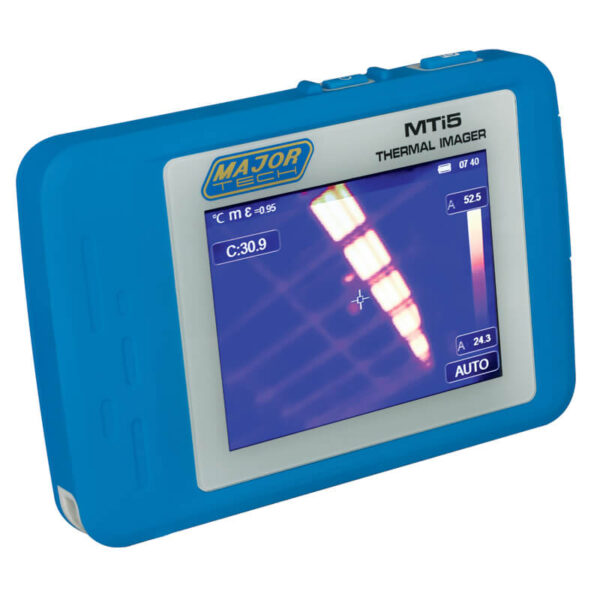

Experience the pinnacle of thermal imaging technology with the MTi5 Thermal Imager. Designed for predictive maintenance, equipment troubleshooting and verification, this handheld marvel redefines convenience and precision in thermal imaging. Witness the fusion of thermal and visual images on its vibrant LCD display, providing unparalleled clarity and context for your inspections. With its compact and ergonomic design, the MTi5 fits effortlessly into your workflow, ensuring comfort during prolonged use. Capture stunning images and video recordings, complete with audio and save them directly to the included Micro SD Memory card for later analysis. Transferring data to your PC is a breeze, thanks to the intuitive interface, included card reader and with built-in Wi-Fi connectivity for instant sharing, enhancing your efficiency and productivity on the job with real-time streaming of videos and images. Whether you’re identifying hotspots, assessing equipment performance or conducting building diagnostics, the MTi5 Thermal Imager empowers you with accuracy and efficiency like never before.
Instruments, Thermal Imaging Cameras
256 x 192 Pixel Pocket Thermal Imager
Price:
$1,250.00 ex. GST
$1,375.00 inc. GST
- Real-time streaming of videos and images via Wi-FI 802.11
- Free Thermal-X App download available on Android and iOS
- Field of View (FOV)/Minimum Focus Distance of 62°x 46.5°/0.5m
- Thermal Sensitivity of <0.04°C at 30°C (86°F)/40mK
- Object Temperature Range from -20 to 150°C (-4 to 302°F) or 0 to 550°C (32 to 1022°F)
- Measurement Correction options including Emissivity, Reflected temperature,
- Ambient temperature, Atmospheric humidity, Infrared compensation, and Distance compensation.
- Versatile Imaging Modes including IR Mode, Visual Mode, Picture in picture, and Auto fusion(IR and Visual)
- Storage Media options include 8GB Micro SD card and 3.4GB internal EMMC MPEG-4 encoded Video Storage, allowing up to 60 minutes of 640×480 video at 30fps
- Video/Image Storage modes include IR, Visual or simultaneous storage of both IR and Visual
- Measurement Accuracy of ±2°C (3.6°F) or ±2% of reading
- Drop tested up to 2m, Bump tested up to 25G and Vibration tested up to 2G
- Up to 4 hours of uninterrupted operation with the rechargeable Li-Ion battery
Specifications
Function | Range |
Imaging and Optical Data | |
Field of View (FOV)/Minimum Focus Distance | 62°x46.5°/0.5m |
Thermal Sensitivity/NETD | <0.04°C at 30°C (86°F)/40mK |
Image Frequency | 25Hz |
Focus Mode | Focus free |
Zoom | 1-32x continuous, digital zoom |
Focal Plane Array (FPA)/ Spectral Range | Uncooled microbolometer/8-14μm |
IR Resolution | 160×120 Pixels |
Image Presentation | |

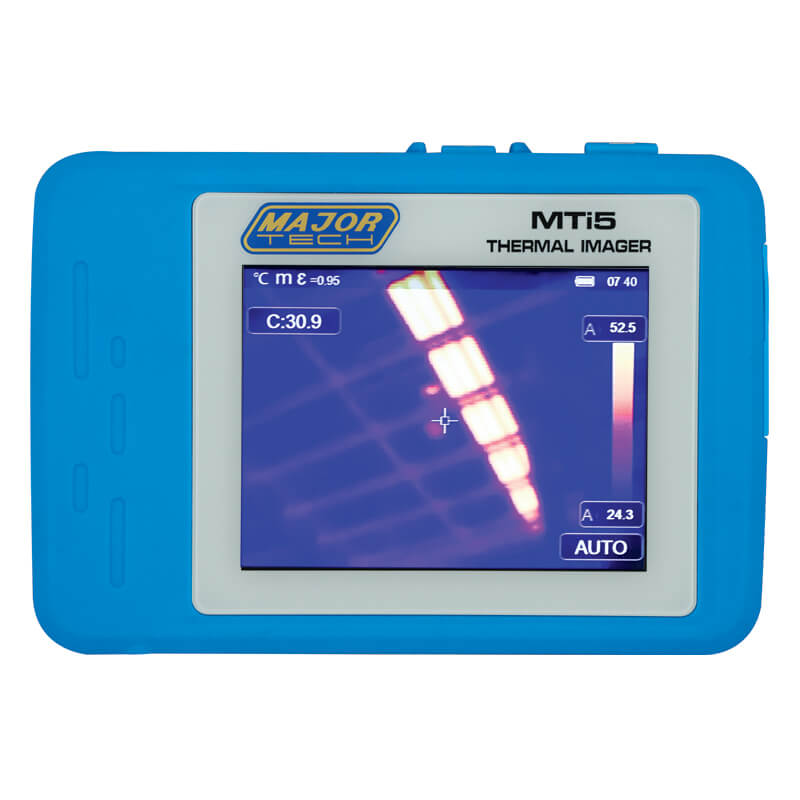

Display | 3.5 in. LCD, 640×480 Pixels, Touch screen |
Image Modes | IR image, Visual image, Picture in picture, Auto fusion |
Colour Palette | IRON, Rainbow, Grey, Grey Inverted, Brown, Blue-red, Hot-cold, Feather, Above alarm, Below alarm, Zone alarm, Vision zone |
Measurement | |
Object Temperature Range | -20°C to 150°C (-4°F to 302°F) 0°C to 550°C (32°F to 1022°F) |
Accuracy | ±2°C (3.6°F) or ±2% of reading (Environment temperature 10-35°C; Object temperature >0°C) |
Measurement Analyses | |
Spot | Center Spot, Three Manual Spots |
Automatic Hot /Cold Detection | Auto hot or cold markers |
Area | Three areas analyse |
Line | Two line analyse |
Measurement Corrections | Emissivity, Reflected temperature, Ambient temperature, Atmospheric humidity, Infrared compensation, Distance compensation. |
Storage of Videos | |
Storage Media | 8Gbytes Micro SD card and 3.4GB internal EMMC |
Video Storage Format | Standard MPEG-4 encode, 640×480 at 30fps, on memory card >60 minutes |
Video Storage Mode | IR/visual images; simultaneous storage of IR and visual images |
Storage of Images | |
Image Storage Format | Standard JPEG or HIR files including measurement data, on memory card >6000 pictures |
Image Storage Mode | IR/visual images; simultaneous storage of IR and visual images |
Image Analyse | Internal image analyse tools, Complete function. |
Set-Up | |
Set-Up Commands | Local adaptation of units, language, date & time and info of camera |
Languages | Multinational |
Digital Camera | |

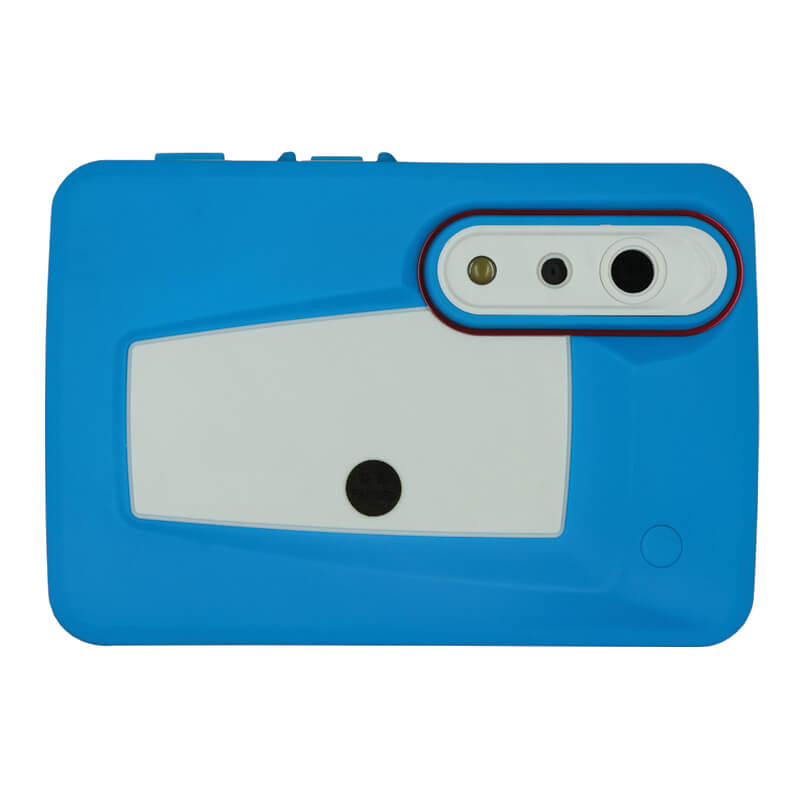

Built-in Digital Camera | 2 Megapixels |
Built-in Digital Lens Data | FOV 59° |
Data Communication Interfaces | |

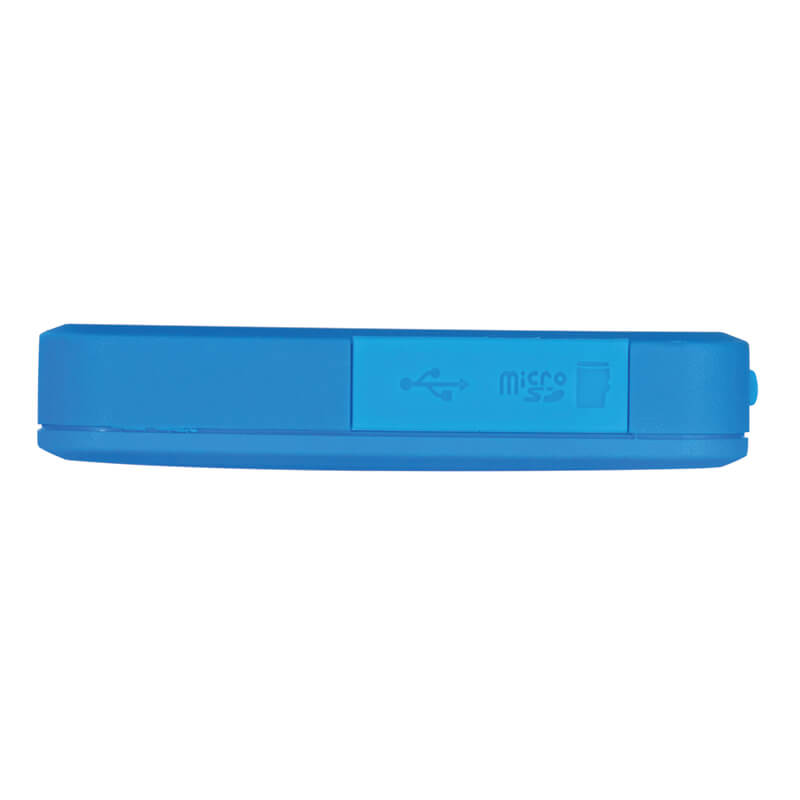

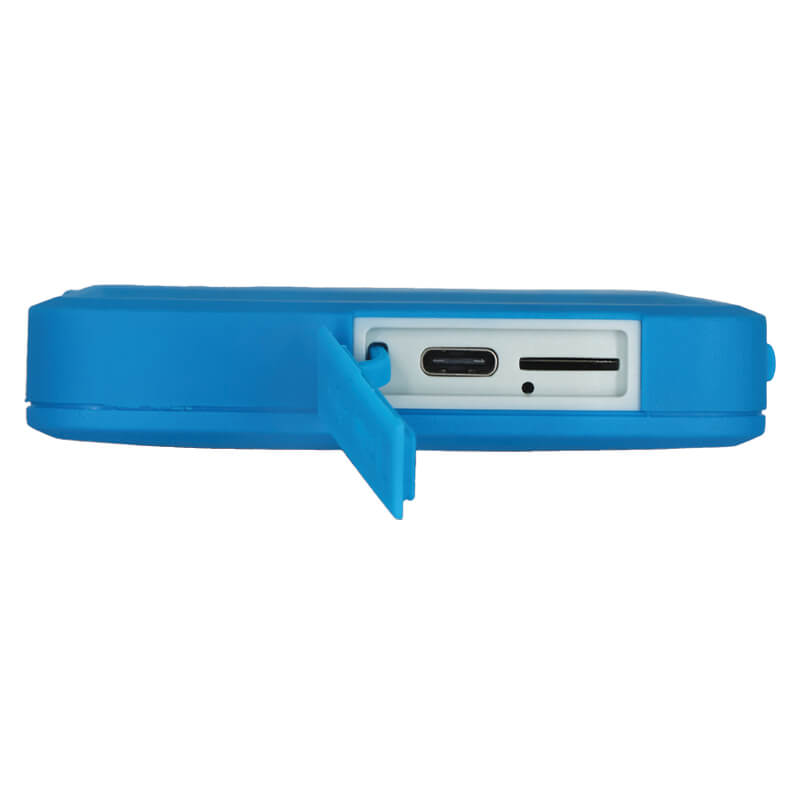

Interfaces | USB-C |
USB | Data transfer between Camera & PC |
WiFi | Live video between camera and PC 802.11, transfer images and realtime video stream |
Power System | |

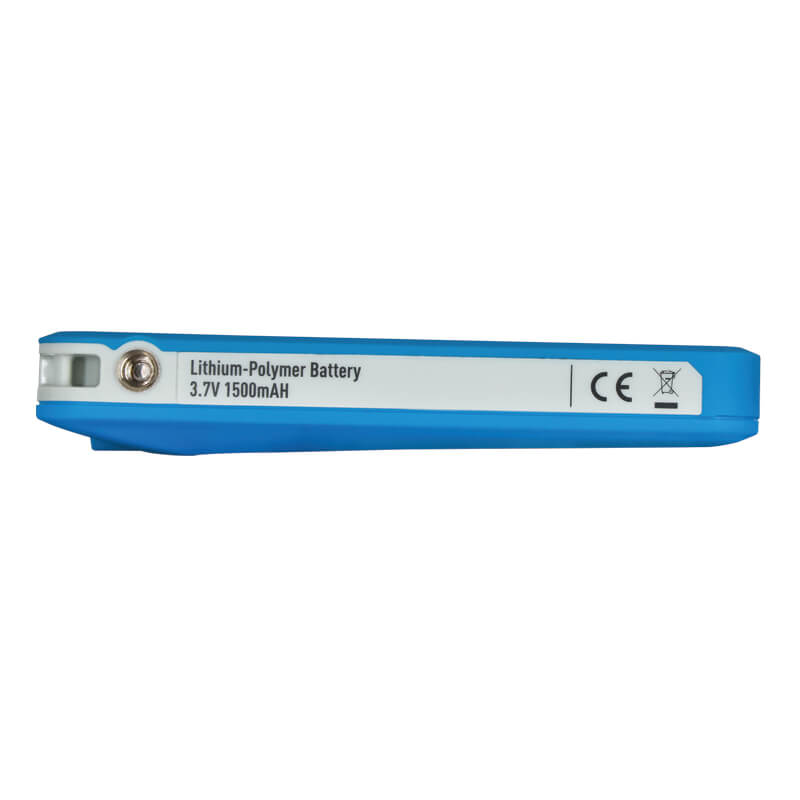

Battery | Li-ion, |
Operating Time | 4 Hours |
Input Voltage | DC 5V |
Charging System | In Camera |
Power Management | Automatic Shutdown |
Environmental Data | |
Operating Temperature | -15°C to 50°C (5°F to 122°F) |
Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
Humidity (Operating & Storage) | 10% to 90% |
Drop Test | 2m |
Bump | 25g (IEC60068-2-29) |
Vibration | 2g (IEC60068-2-6) |
Physical Data | |
Weight | <500g |
Dimensions (LxWxH) | 133x87x24mm |
Accessories
- Carrying Case
- 32GB SD Card
- USB Cable
