SKU: MT1010

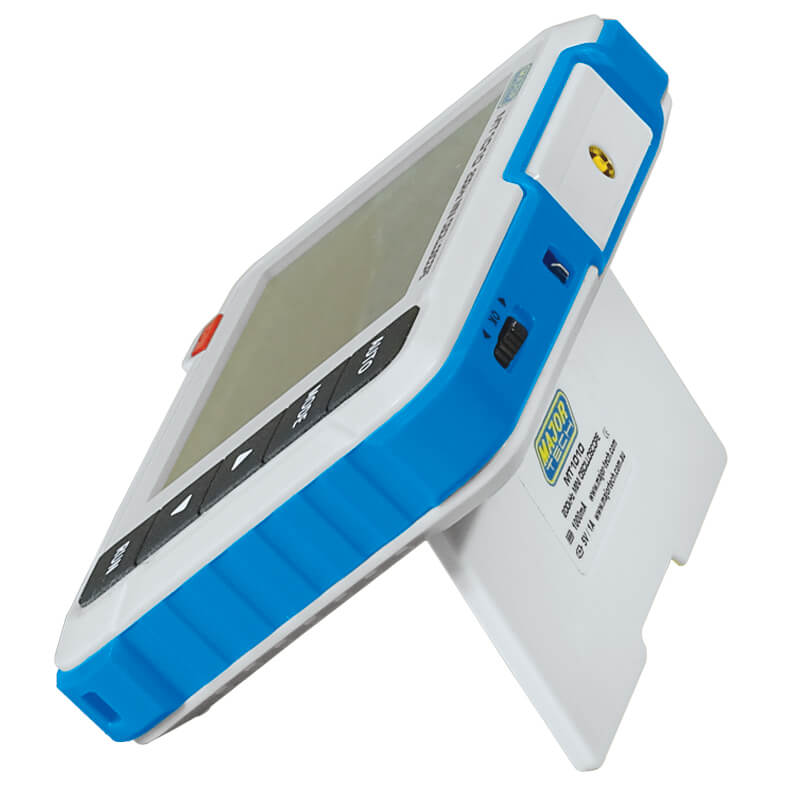

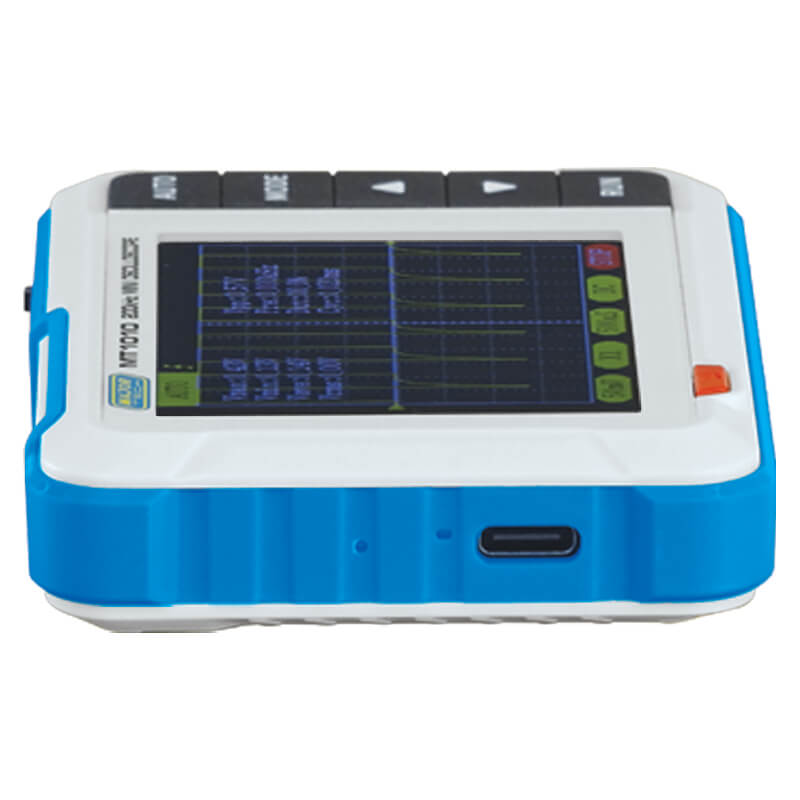

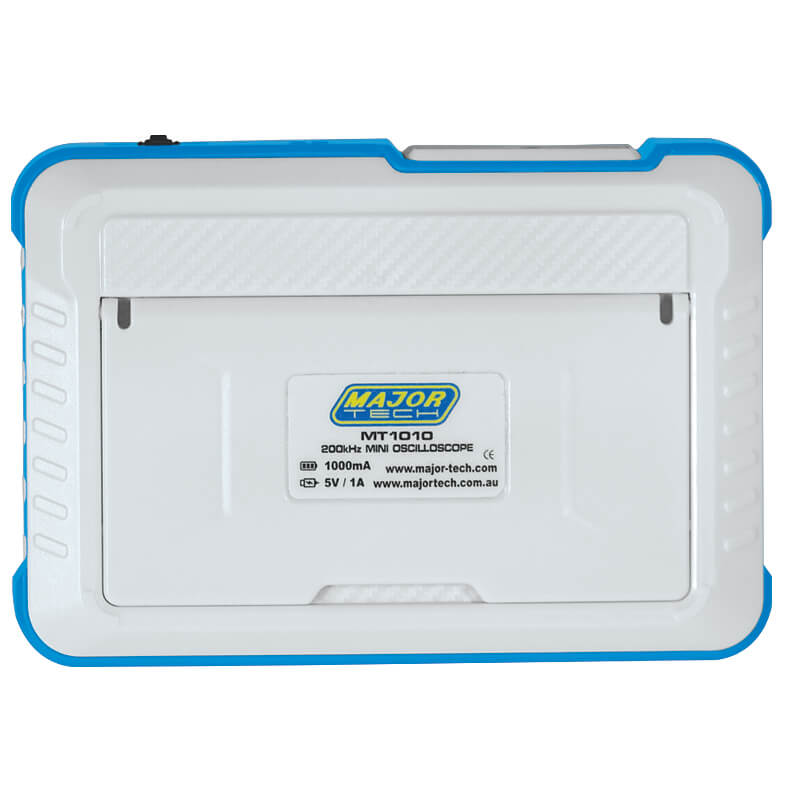

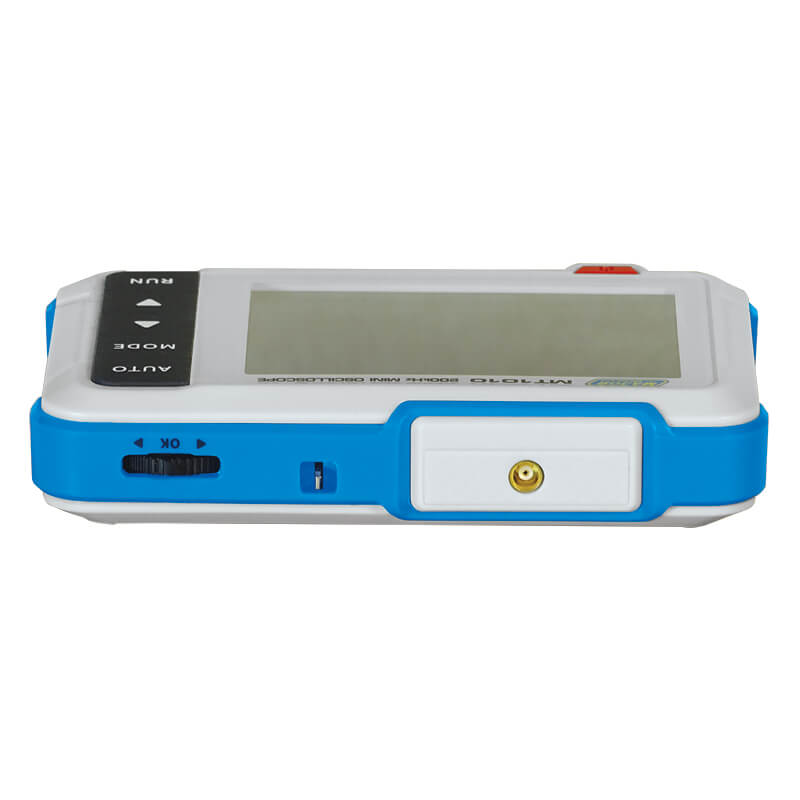

200kHz Mini Oscilloscope


Price:
$125.00 ex. GST
$137.50 inc. GST

  • Mini pocket handheld oscilloscope
  • 200kHz Bandwidth with 2.5ms/s sampling
  • Can measure signals up to 400V
  • ZOOM time base for easy analysis of digital protocol signals.
  • Three trigger modes: automatic, single, normal
  • The DDS signal generator has 14 kinds of function signal waveforms
  • Built-in 1000mAh high quality rechargeable lithium battery, battery life up to 4 hours

The MT1010 is a highly practical and budget-friendly handheld oscilloscope designed for the maintenance and research education industries. This versatile device features a real-time sampling rate of 2.5MS/s, a bandwidth of 200kHz, and comprehensive trigger functions (single, normal, and automatic). Ideal for both periodic analogue signals and non-periodic digital signals, it can measure voltages up to ±400V with the optional 100:1 oscilloscope probe. The oscilloscope is user-friendly with its one-key AUTO functionality, enabling the display of measured waveforms without intricate adjustments. The 2.8-inch high-definition LCD screen with a resolution of 320×240 ensures clear and precise waveform visualization. Powered by a built-in 1000mAh high-quality lithium battery, the MT1010 can operate continuously for approximately 4 hours on a full charge, providing reliable performance in various applications.

SKU: MT1010 Categories: ,

Specifications

Function Range
Sampling Rate 2.5mS/S
Bandwidth 200kHz
Vertical Sensitivity 10mV/ Div-20V
Time Base Range 10µs/Div-50s
Voltage Range X1: ±40V (VPP: 80V)

X10: ±400V (VPP: 800V) (Optional)

Trigger Methods Auto, Normal, Single
Coupling Method AC/DC
Lithium Battery Capacity 1000mAh (Rechargeable)
Sqaure wave Calibration 1K Frequency
Duty Cycle 50%
Dimensions 99 x 68.3 x 19.5mm
Weight 100g

Accessories

  • Scope Probes
  • Charging Cable
  • Instruction Manual
