SKU: MT700

200A AC Clamp Meter


Price:
$195.00 ex. GST
$214.50 inc. GST

  • CAT IV 600V and CAT III 1000V
  • 2000 count negative LCD display.
  • Open Jaw Sensor
  • AC and DC Current 1000V
  • AC Current 200A
  • Resistance 2000Ω
  • Ø16mm Cable Clamp size
  • Simultaneously displays voltage and current measurements.
  • Rotary Field Indication

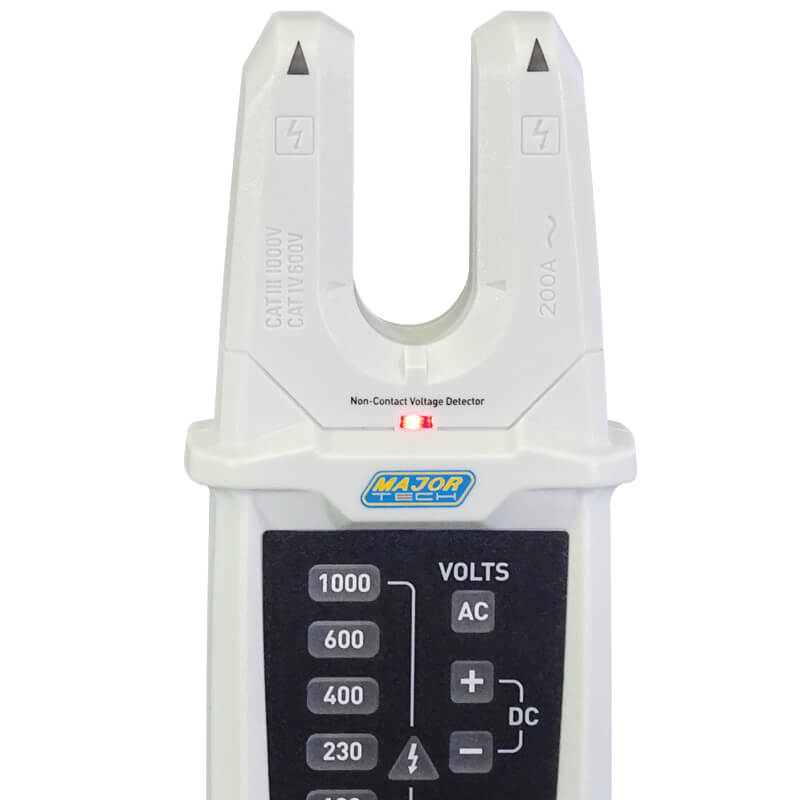

  • NCV – Non-Contact Voltage Detector

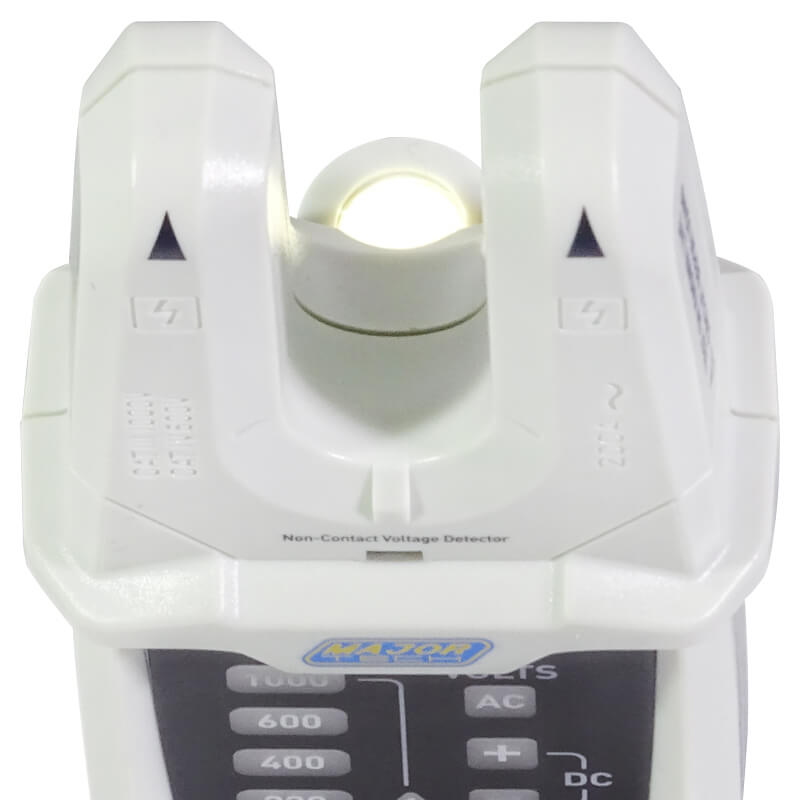

  • Built-In Flashlight
  • Continuity buzzer and Data Hold function
  • Auto Power Off

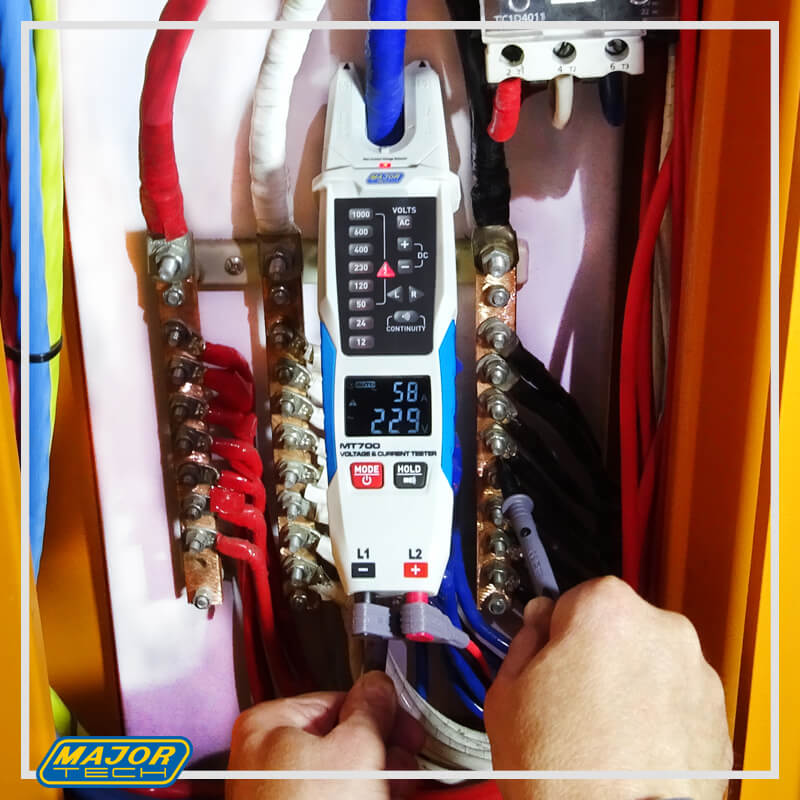

The MT700 is a CAT IV 600V, 2000 count True RMS 200A AC digital clamp meter with indication on a large backlit negative LCD display, with a clamp jaw opening of 16mm. A superb feature for electricians is the ability to simultaneously measure current and voltage and view both readings on the LCD display. The MT700 measures AC and DC voltage up to 1000V and displays the reading on both the LED and LCD display. This open jaw clamp meter is designed to assist in the ease of measuring current in crowded or tight cable areas, as the jaws need only be pushed over the wire to obtain accurate readings. Added features include resistance measurements, Rotary Field Indication, continuity buzzer, data hold, built-in flashlight plus Non-Contact Voltage detection. Housed in a modern double moulded rubber housing with a rugged design for heavy duty use.

SKU: MT700 Category:

Specifications

Function Range Resolution Accuracy
AC Current 0A – 200A 1A ±(3.5% + 5 Digits)
DC Voltage 6V-1000V 1V ±(3.0% + 5 Digits)
AC Voltage 6V-1000V 1V ±(3.0% + 5 Digits)
Resistance 0Ω – 1999Ω 1Ω ±(5% + 10 Digits)
AC Bandwidth 40Hz to 400Hz
Digital Display 2000
Non-Contact Voltage (NCV) Yes
Overrange Indication Yes
Continuity Yes
Diode Test Yes
Jaw Size 16mm Open Jaw
Input Impedance >10MΩ DCV & >10MΩ VAC
Data Hold Yes
Back Light Yes
Enclosure Double moulded case
Low Battery Indication Yes
Batteries 2 x AAA
Weight 259g
Dimensions 230 x 44 x 66mm
Safety Specs IEC61010-1 CAT IV 600V

Safety Ratings



Accessories

Test Leads

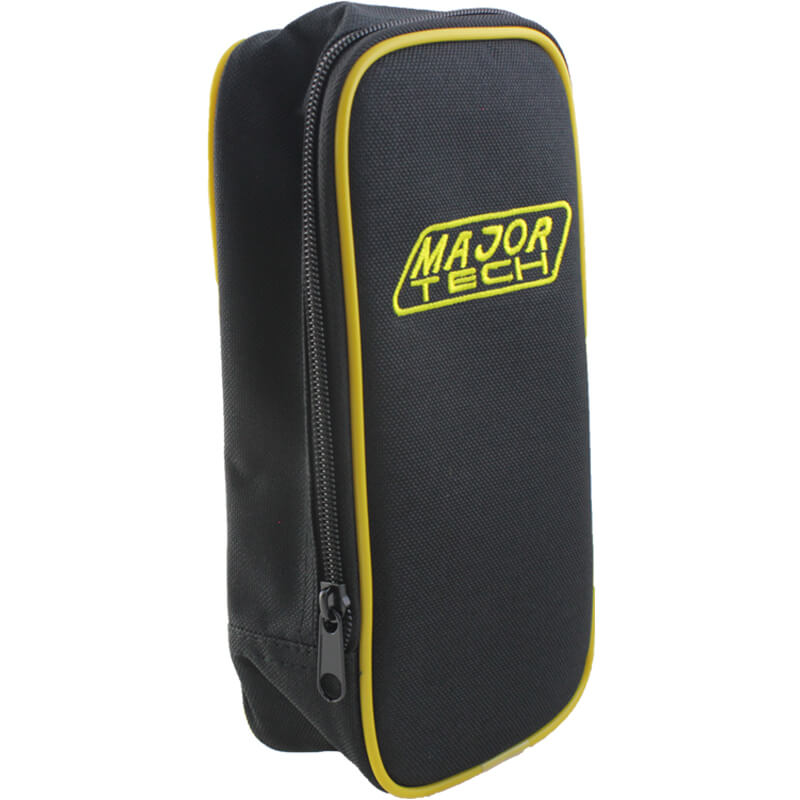

Carrying Case

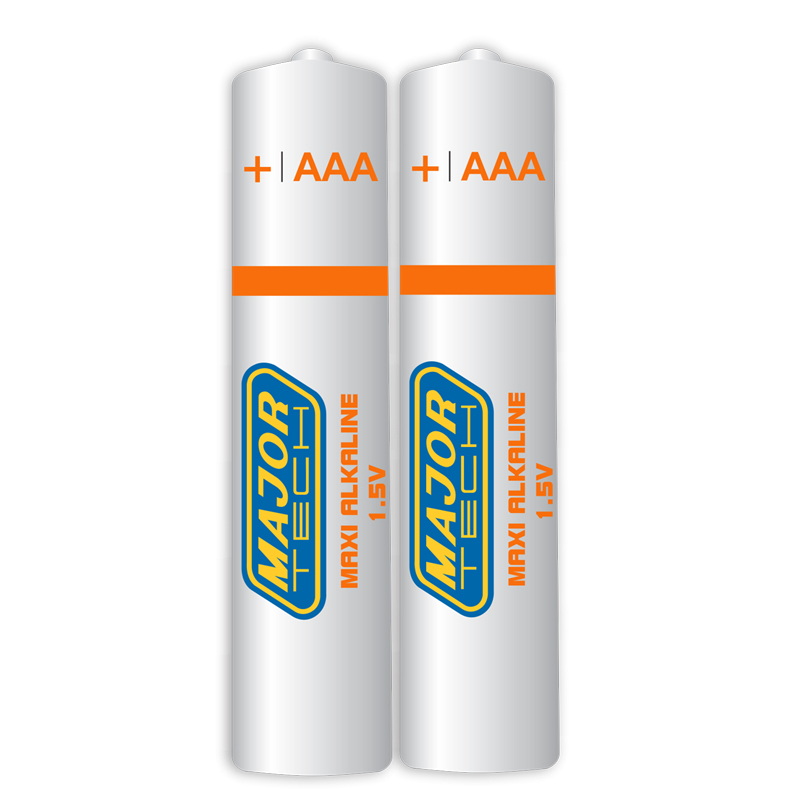

2 x AAA Batteries
Instruction Manual
