SKU: MTC50

2-In-1 LAN Tester and Multimeter


Price:
$149.00 ex. GST
$163.90 inc. GST

  • CAT III 300V and CAT II 600V
  • 2-in-1 LAN Tester and Digital Multimeter
  • AC and DC Voltage 600V
  • AC and DC Current 200mA
  • Resistance 20Mꭥ
  • LED displays the actual pin configuration and tests the correct pin configuration of 100Base-T, 10Base-T, 10Base-2 Thin Ethernet cable, RJ45/RJ11 modular cables 356A, TIA-568A/568B and Token Ring cable etc
  • With remote kit it can remotely test cables up to 300m away either on wall plate or patch panel
  • Can test the grounding
  • Provides easy to read continuity and fault status display
  • Locked Status wiring function
  • LAN Testing
  • Tests CAT 5 Installations

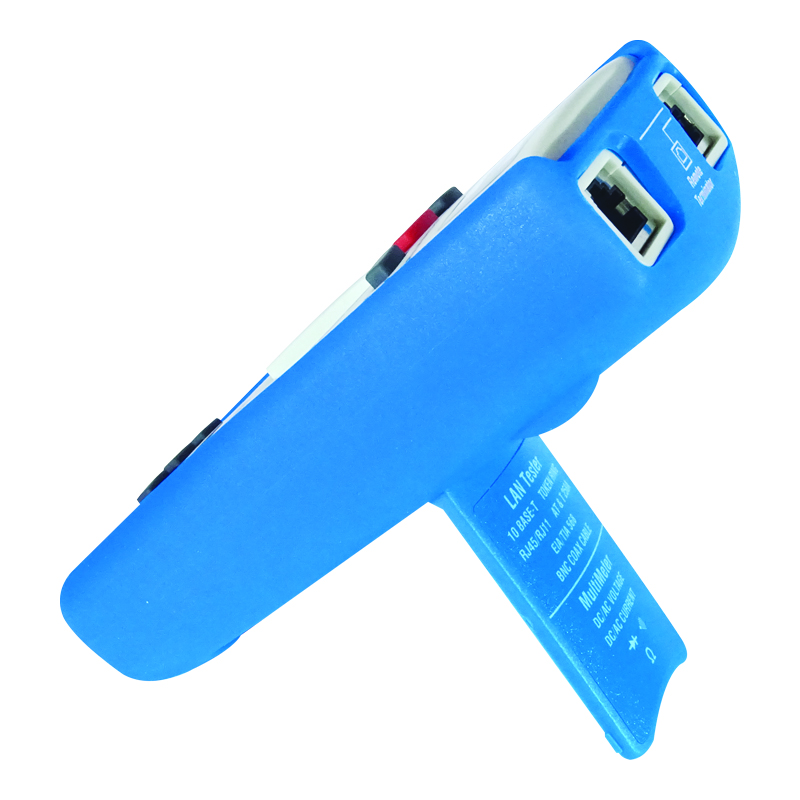

The MTC50 is a 2-in-1 LAN Tester and Multimeter. This meter is a newly designed and very practical tester that can easily read the correct pin configuration of 10/100 Base-T cable (Category 5), 10Base-2 cable (coax), RJ45/RJ11 modular cables, AT&T 258A, 356A, TIA-568A/568B and Token Ring cable by comparing one transmitting end to the corresponding receiving end. With the remote kit test cables can be installed over long distances either on wall plates or patch panels.

This LAN Tester and Multimeter makes it is easy to verify the cable continuity, open, short and cross-connect. The auto range digital multimeter allows the user to measure AC and DC voltage, AC and DC current, Resistance, Continuity and Diode test.

SKU: MTC50 Categories: ,

Specifications

Function Range Resolution Accuracy
DC Voltage 200mV – 600V 0.1mV ±(1.0% + 3 Digits)
AC Voltage 200mV – 600V 1mV ±(1.0% + 5 Digits)
DC Current 200.0μ A – 200.0mA 0.1μA ±(1.5% + 3 Digits)
AC Current 200.0μ A – 200.0mA 0.1μA ±(1.8% + 8 Digits)
Resistance 200.0Ω – 20MΩ 0.1Ω ±(1.2% + 3 Digits)
Overrange Indication Yes >7.5MΩ VDC & >7.5MΩ VAC
AC Bandwidth 50Hz-60Hz
Continuity Yes
Diode Test Yes
Digital Display 2000

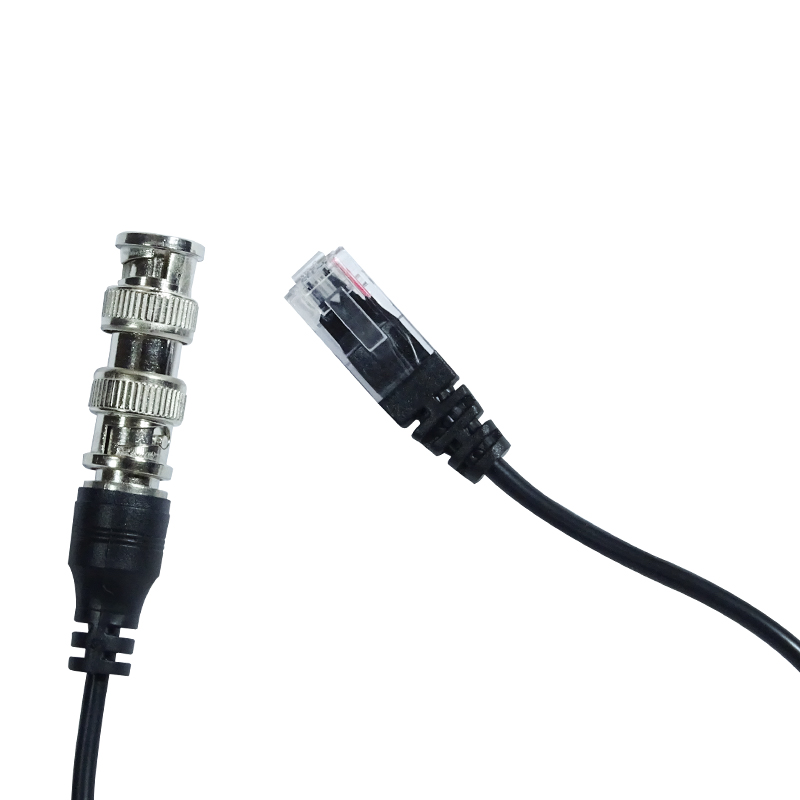

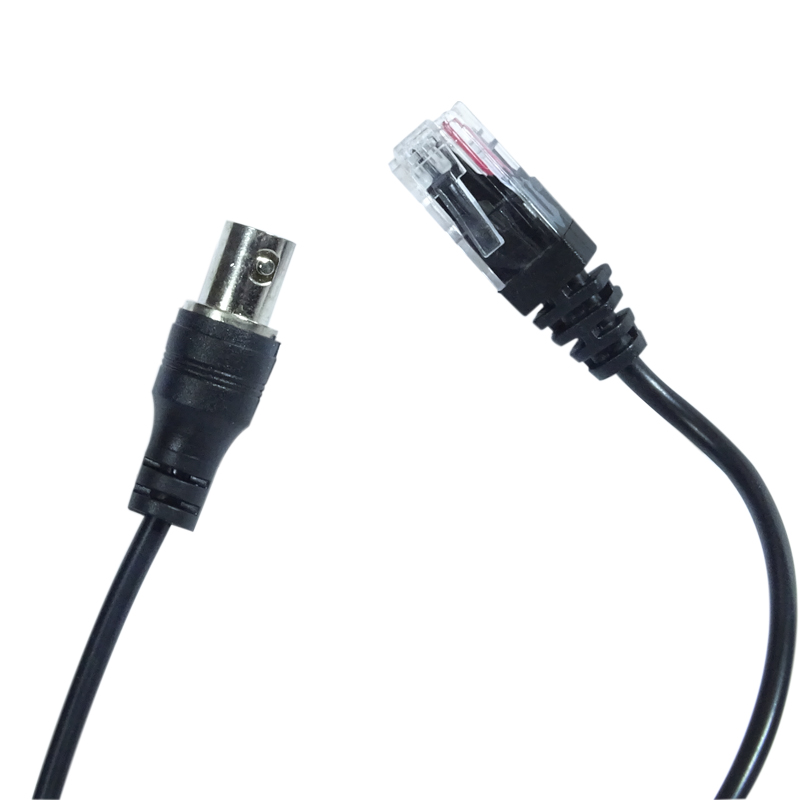

Lan Tester RJ45 and RJ11 + BNC
Min Max Yes
Back Light Yes
Enclosure Rubber Holster
Batteries 2 x AAA and 9V
Weight 308g
Dimensions 162 x 74 x 43mm
Safety Specs IEC61010-1 CAT III 600V

Safety Ratings



Accessories

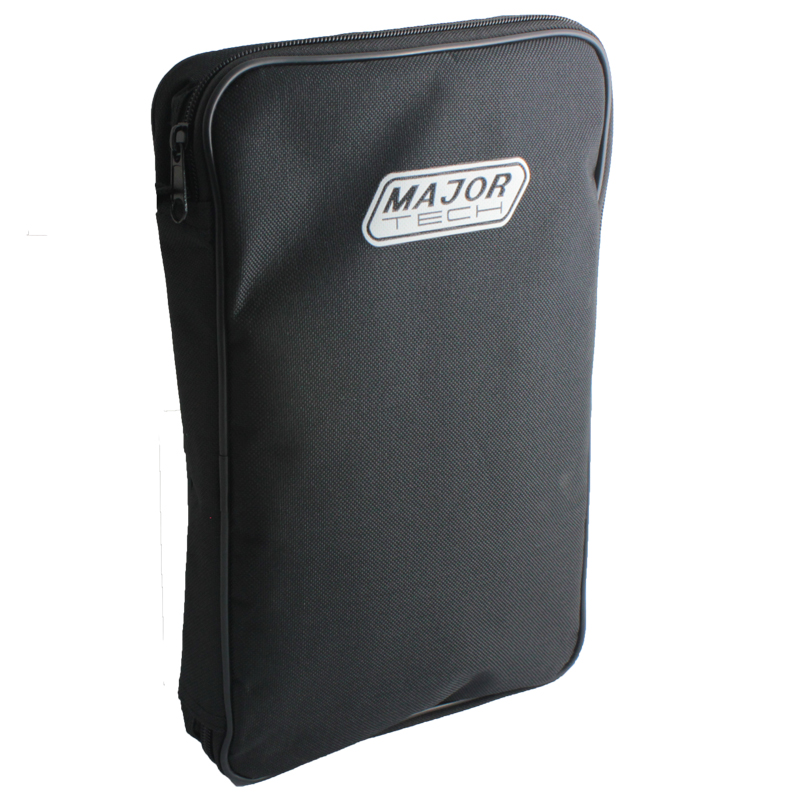

Carrying Case

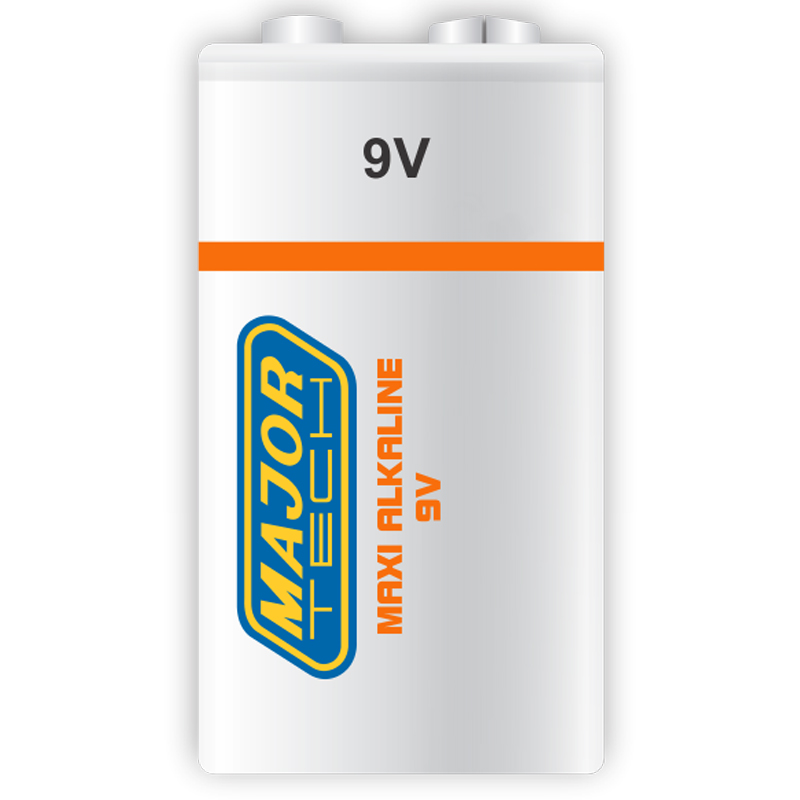

9V Battery
Test Leads
Instruction Manual
