SKU: MT957

11 000 Count LCR Meter


Price:
$189.00 ex. GST
$207.90 inc. GST

  • Provides direct and accurate measurements of inductors, capacitors and resistors with different frequencies and is selectable for auto/manual ranging
  • 11 000 Count LCD display
  • Min / Max
  • Relative Mode
  • Measures inductance to 20H
  • Resistance 40MΩ
  • Capacitance 110mF
  • Data hold

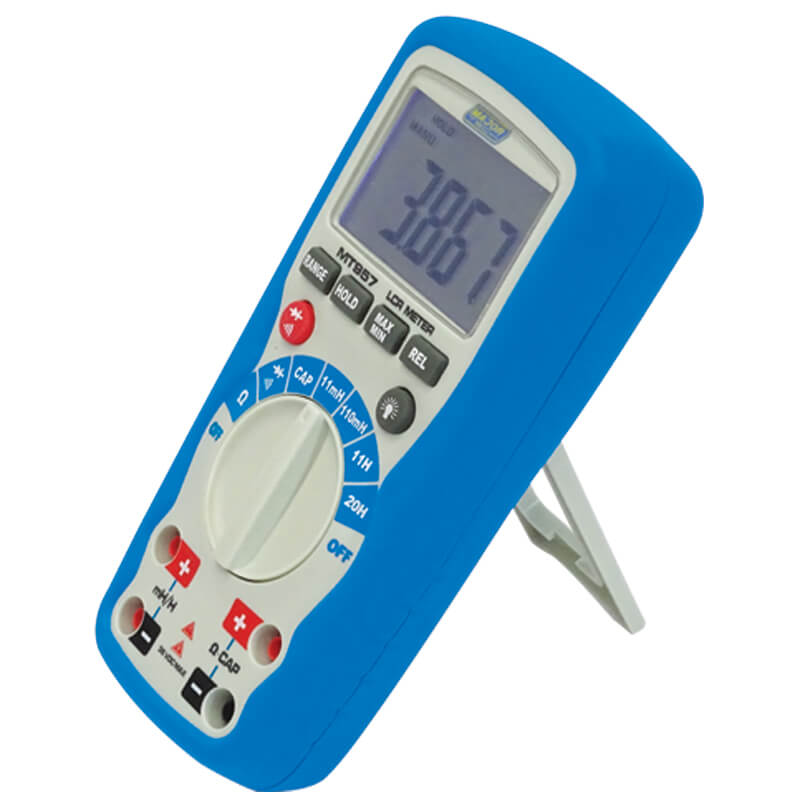

The MT957 LCR meter is battery operated and provides direct and accurate measurements of inductors, capacitors and resistors with different frequencies and is selectable for auto ranging of manual ranging. Convenient front panel push buttons and controls include functions such as data hold, maximum and minimum record mode and relative mode. The 11,000 count LCD display is backlit for easy reading in dark locations.

SKU: MT957 Category:

Specifications

Function Range Resolution Accuracy
Resistance 100.0 – 40MΩ 0.01Ω ±(1.2% ± 0.5)
Capacitance 11.000nF – 110.00mF 1pf ±(5.0% ± 0.7pF)
Inductance 11.000mH – 20.00H 1μH ±(2.0% + 0.05mH)
Over Range Indication Yes
Digital Display 11000 count LCD
Back Light Yes
Diode Test Yes
“O” Adj. Yes
Min/Max Yes
Relative Mode Yes
Data Hold Yes
Enclosure Double moulded case
Low Battery Indication Yes

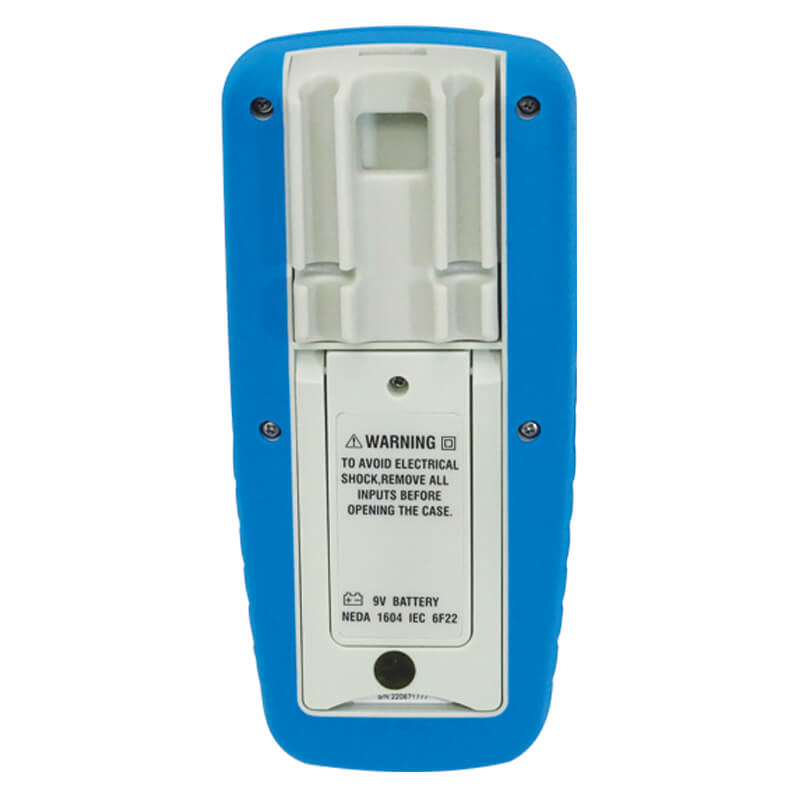

Battery 9V
Weight 255g
Dimensions 150 x 70 x 48mm
Safety specs IEC61010-1 CAT III 600V

Accessories

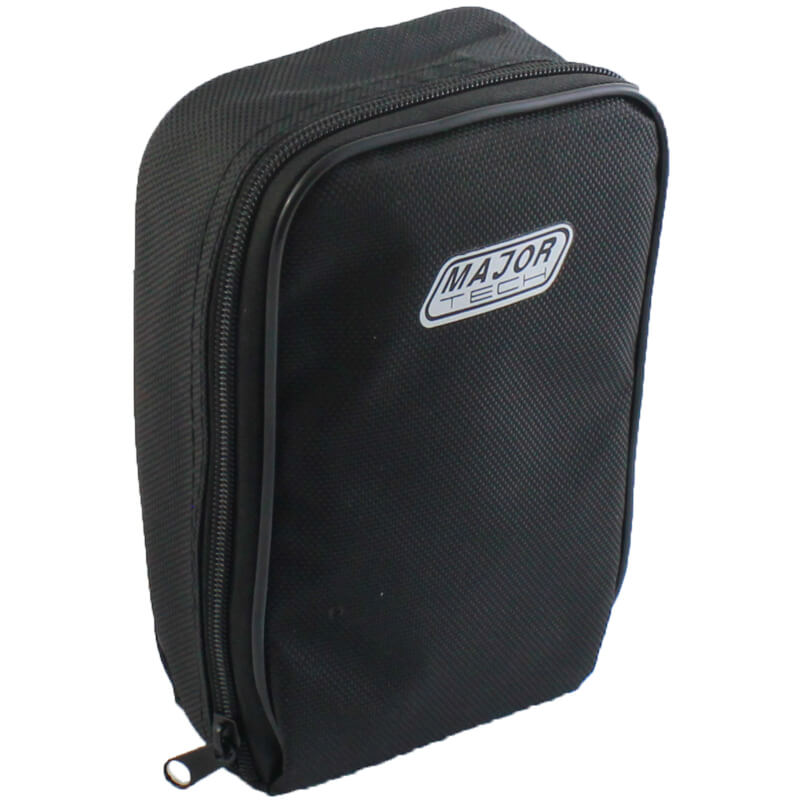

Carrying case

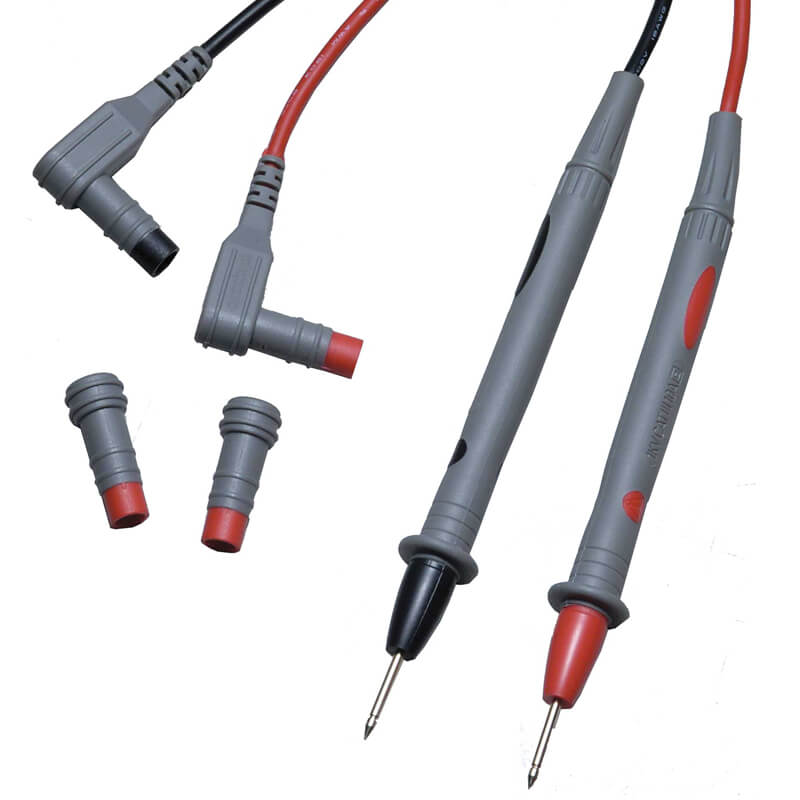

Test Leads
Instruction manual
