SKU: MT760

100A AC/DC Clamp Meter


Price: $269.50

  • CAT III 300V and CAT II 600V
  • Current measurement from 1mA
  • Measures AC and DC current to 100 Amps
  • Ø17mm Cable Clamp size
  • 2000 count backlit LCD display
  • Measurement of DC voltage and AC voltage up to 600V
  • Capacitance to 20mF
  • VFC – Variable Frequency Drive voltage value
  • Microprocessor Zero adjustment
  • NCV – Non-Contact Voltage Detector
  • Continuity buzzer and Diode Test
  • Data Hold function
  • Auto Power Off

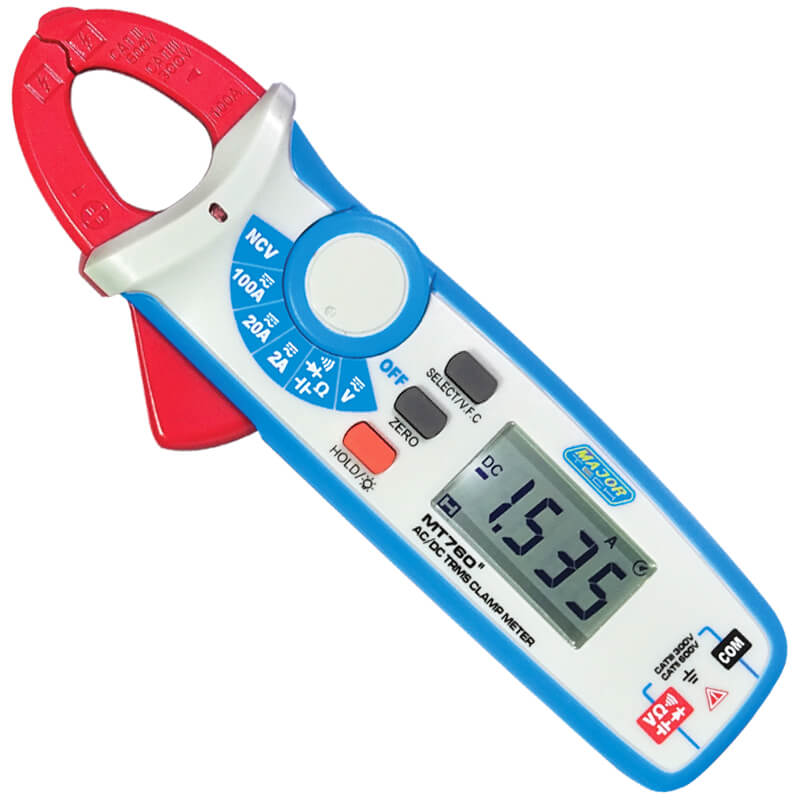

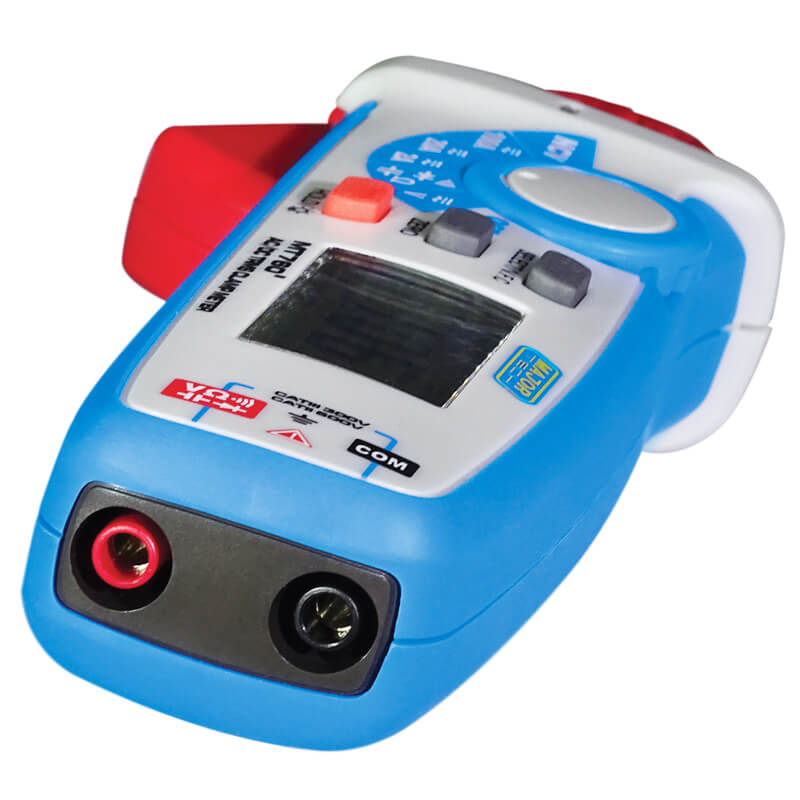

The MT760 is a CAT III 300V, 2000 count True RMS 100A AC/DC digital clamp meter with a resolution of 1mA. The MT760 has a compact design, high reliability and safety, and provides fast sampling time with high accuracy and all readings are indicated on a large backlit LCD display. The meter measures 600V AC/DC, capacitance, resistance measurements, plus a continuity buzzer and diode test function. The VFC function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives. Added features include Zero/Relative mode for Capacitance Zero, resistance, DCV, ACV, DCA and ACA offset adjustment and Non- Contact voltage detection. Housed in a modern double moulded rubber housing.

SKU: MT760 Categories: ,

Specifications

Function Range Resolution Accuracy
DC Current 2.000A – 100.0A 1mA ±(2% + 8 Digits)
AC Current 2.000A – 100.0A 1mA ±(3% + 10 Digits)
DC Voltage 200.0mV – 600V 0.1mV ±(0.7% + 5 Digits)
AC Voltage 2.000V – 600V 1mV ±(1% + 3 Digits)
AC Voltage VFD 200.0V – 600V 100mV ±(4% + 3 Digits)
Resistance 200.0Ω – 20.00MΩ 0.1Ω ±(1% + 2 Digits)
Capacitance 2nF – 20.00mF 1pF ±(4% + 5 Digits)
True RMS Measurements ACA, ACV
AC Bandwidth 50Hz to 400Hz
Digital Display 2000
Non-Contact Voltage (NCV) Yes
Overrange Indication Yes
Continuity Yes
Diode Test Yes
Jaw Size 17mm
Input Impedance >1MΩ DCV & >1MΩ VAC
Min Max Yes
Data Hold Yes
Back Light Yes
Enclosure Over moulded case
Low Battery Indication Yes
Batteries 2 x AAA
Weight 170g
Dimensions 175 x 60 x 33.5mm
Safety Specs IEC61010-1 CAT II 600V

Safety Ratings



Accessories

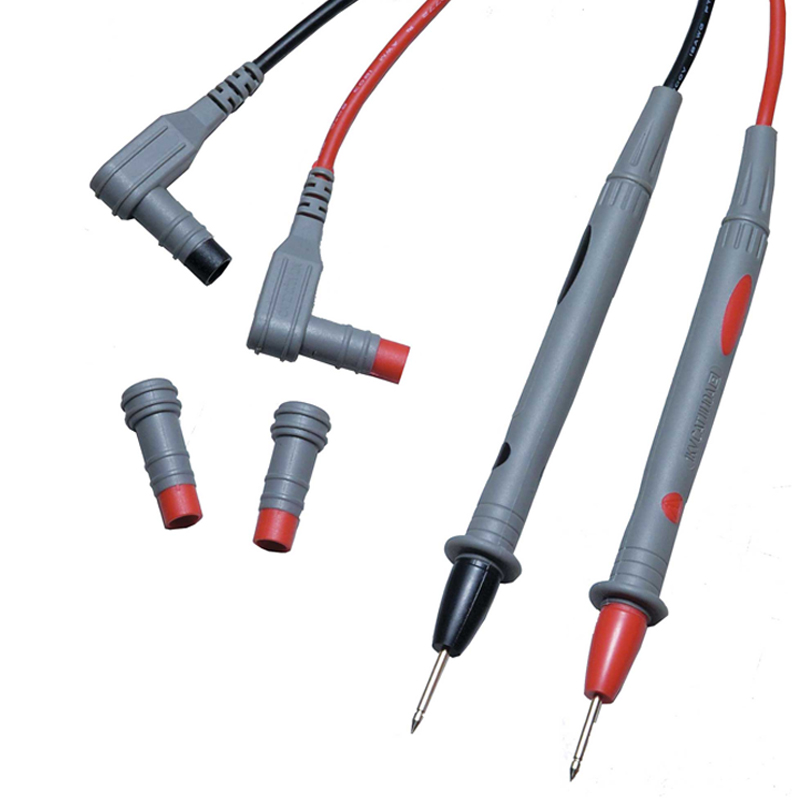

Test Leads
Carrying Case

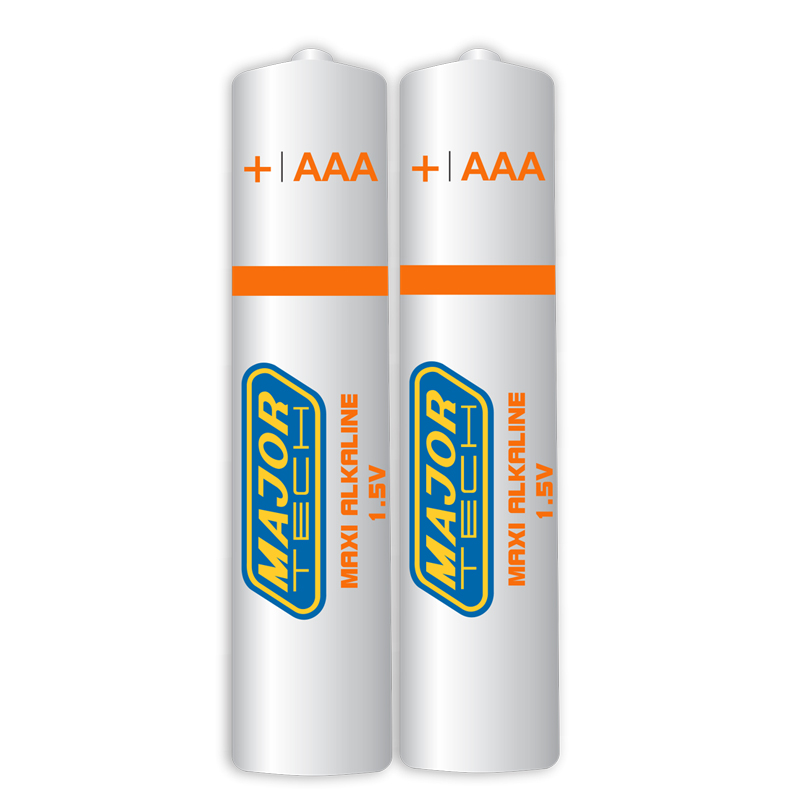

2 x AAA Batteries
Instruction Manual
