SKU: MT1881

1000V AC/DC IP67 True RMS Multimeter


Price:
$220.00 ex. GST
$242.00 inc. GST

  • CAT IV 600V and CAT III 1000V
  • IP67 Dust & waterproof with O-ring sealed casing.
  • NCV detection above 110V AC, LCD turns red to indicate presence of voltage.
  • AC and DC Voltage 1000V
  • AC and DC Current 10A
  • AC VFD Voltage 600V
  • Resistance 60Mꭥ
  • Frequency 10MHz
  • Capacitance 60mF
  • Duty Cycle 99.9%
  • Auto range with manual override
  • MIN/MAX recording mode
  • 6000 Count LCD display and equipped with a 61-segment analogue bargraph
  • Full ranges protection & Auto power off
  • Overmould rubber housing & Integrated test lead holder

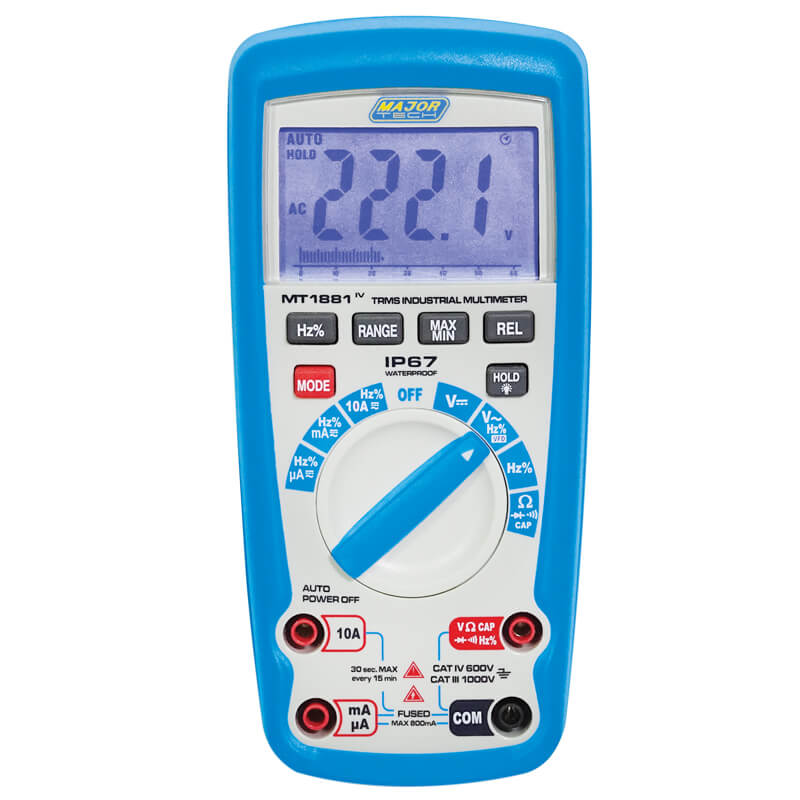

  • Blue backlight for dimly lit areas

The MT1881 1000V AC/DC IP67 True RMS Multimeter is a professional multimeter having a large 6000 count backlit LCD with a 61 segment analogue bar graph, especially designed for everyday use by electricians. Capable of measuring 1000V AC and DC, with added measuring ranges of Resistance, AC/DC Current, Capacitance and Frequency. The meter has been designed that should a user turn the rotary switch in any direction whilst an input of less than 1000V AC/DC is applied to the meter, the meter will not get damaged. NCV function, automatic Non-Contact voltage detection, the LCD backlight will glow red when AC voltage above 110V is sensed.

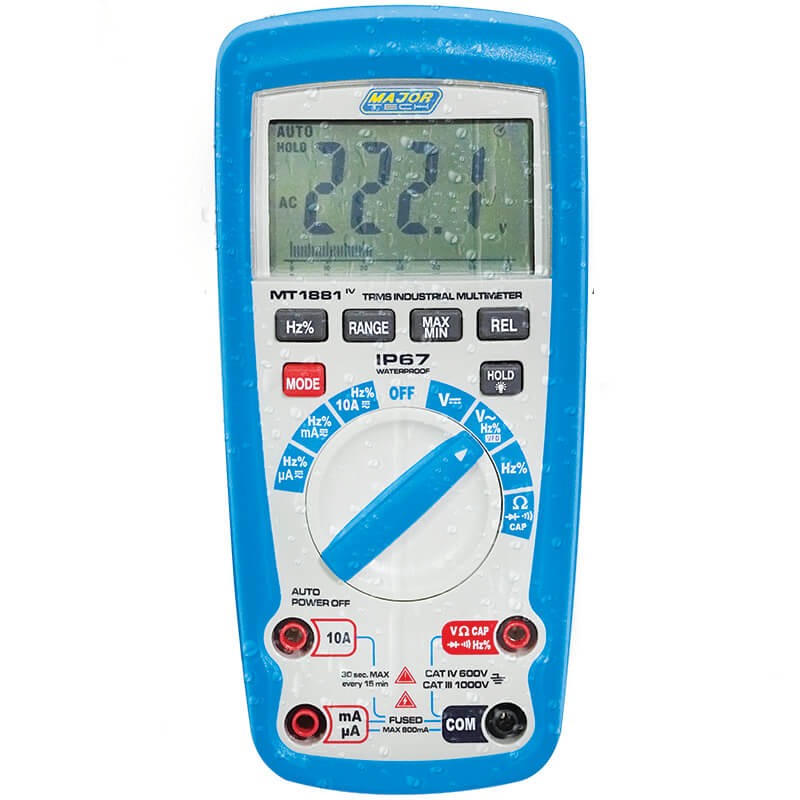

This True RMS multimeter has a double moulded rubber case with IP67 waterproof and dustproof rating, rugged design for heavy duty use.

SKU: MT1881 Category:

Specifications

Function Range Resolution Accuracy
DC voltage 600.0mV – 1000V 0.1mV ± (0.5% + 5 Digits)
AC voltage 6.000V – 1000V 1mV ± (0.8% + 4 Digits)
DC Current 600.0μA – 10A 0.1μA ± (1.0% + 3 Digits)
AC Current 600.0μA – 10A 0.1μA ± (1.5% + 3 Digits)
AC voltage (VFD) 50.0V – 600.0V 0.1V ± (4% + 9 Digits)
Duty Cycle 0.1 to 99.90% 0,1% ± (1.2% + 2 Digits)
Resistance 600.0Ω – 60.00MΩ 0.1Ω ± (0.8% + 2 Digits)
Frequency 9.999Hz – 9.999MHz 0.001Hz ± (1.0% + 4 Digits)
Capacitance 60.00nF – 60.00mF 0.01nF ± (4.0% + 5 Digits)
True RMS Measurements Yes
AC Bandwidth 50Hz to 400Hz
Digital Display 6000
Bargraph Yes
Continuity Yes
Diode test Yes
Non Contact Voltage (NCV) Yes
Overrange indication Yes
Input impedance >10MΩ VDC & >10MΩ VAC
Min Max Yes
Data Hold Yes
Enclosure Double moulded waterproof IP67
Low battery indication Yes
Power source 6LF22
Weight 342g
Dimensions 187 x 81 x 50mm
Safety Specs IEC61010-1 CatIV 600V

Safety Ratings



Accessories

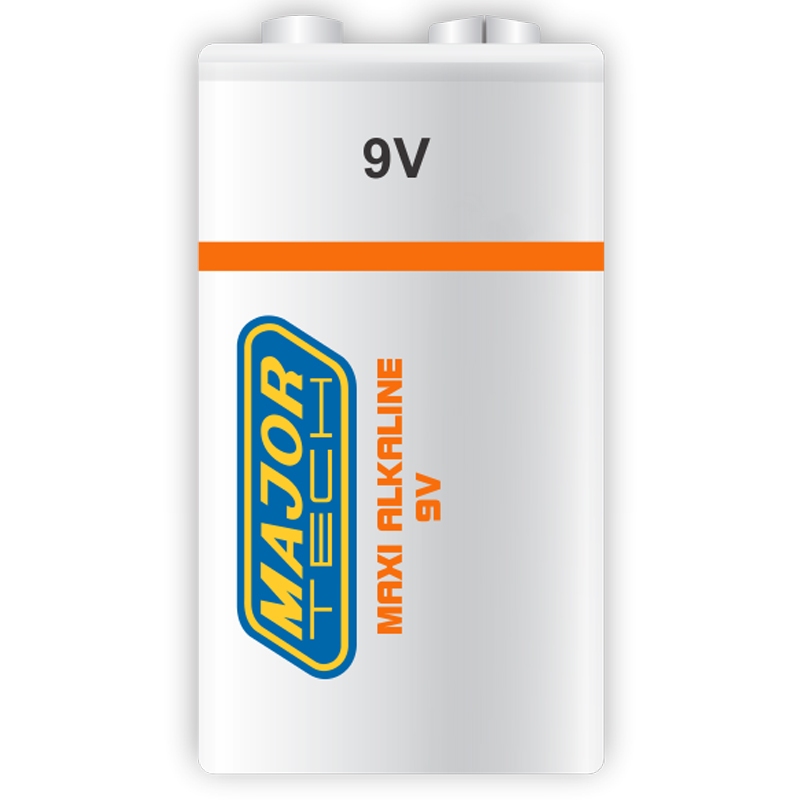

9V Battery

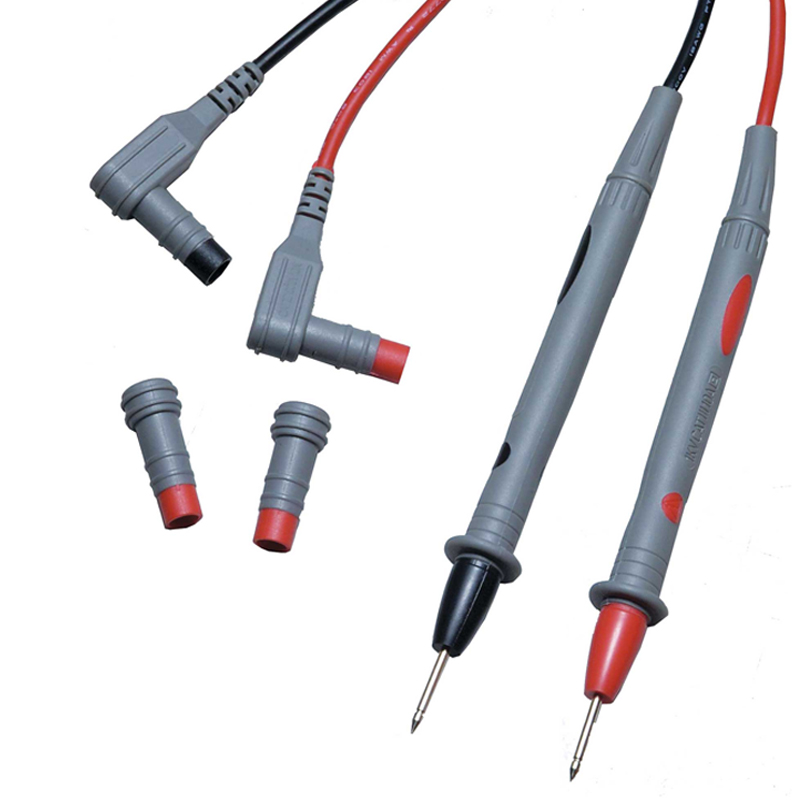

Test Leads
Instruction Manual

Downloads
