SKU: MT777

1000A AC/DC TRMS Bluetooth Clamp Meter

Price:
$385.00 ex. GST
$423.50 inc. GST

  • 6000 count TFT colour LCD display
  • Ø33mm Cable Clamp size
  • Measurement of AC, AC+DC TRMS and DC voltage up to 1000V
  • Capacitance to 100mF
  • Trend Capture Function
  • 100 Graph Data Review
  • INRUSH Current Measurements
  • VFD – Variable Frequency Drive voltage value
  • LoZ – Low impedance mode prevents false readings due to “Ghost” voltage
  • NCV – Non-Contact Voltage Detector
  • Built-In Flashlight
  • Continuity buzzer and Diode Test
  • Peak Mode, Min/Max and Data Hold function
  • Auto Power Off
  • Optional MT740 Flexible Coil Clamp for measurement 3000A AC

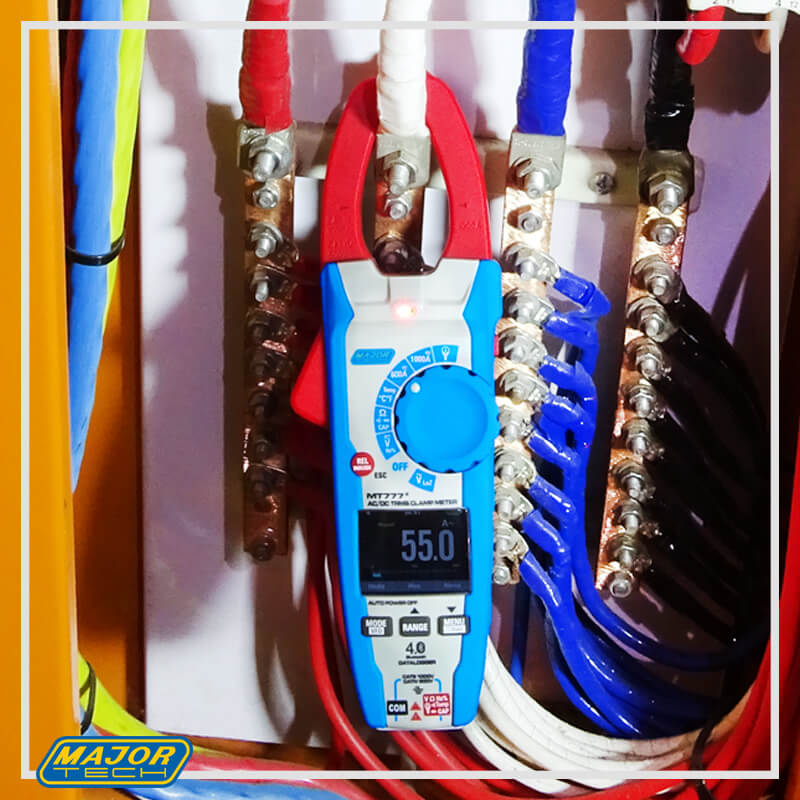

The MT777 is a CAT IV 600V, 6000 count True RMS 1000A AC/DC digital clamp meter with an analogue bargraph indication on a TFT colour display, providing fast sampling time with high accuracy. The meter has a built in Data logger with 100 Graph Data review, using Bluetooth the meter wirelessly transmits data to the Android or iOS mobile App allowing the user to view, save, organise and share recordings. The VFD function allows the user to measure stable voltage in high frequency applications, while the Low Z range function has a low pass filter to eliminate errors caused by “Ghost” voltages. The meter measures 1000V AC/DC, temperature, frequency, capacitance and resistance measurements, 100ms Inrush current and Peak Hold. Using the optional MT740 True RMS Flexible Clamp Adaptor, the measuring range can be extended to measure 3000A AC. Added features are Non-Contact voltage detection, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing.

SKU: MT777 Categories: ,

Specifications

Function Range Resolution Accuracy
DC Current 0.1A – 1000A 0.1A ±(2.5% + 5 Digits)
AC Current 0.1A – 1000A 0.1A ±(2.5% + 5 Digits)
DC Voltage 0.1mV – 1000V 0.1mV ±(1.5% + 5 Digits)
AC Voltage 1mV – 1000V 1mV ±(1.5% + 5 Digits)
Resistance 0.1Ω – 60MΩ 0.1Ω ±(1.5% +5 Digits)
Frequency 0.01Hz – 99.99kHz 0.01Hz ±(1.2% +5 Digit)
Capacitance 0.01nF – 100mF 0.01nF ±(3.0% + 8 Digits)
Temperature -40°C to 1000°C 0.1°C ±(1.5% + 5°C Digits)
Duty Cycle 10.0% to 90.0% 0.001 ±(1.2% + 8 Digits)
True RMS Measurements ACV, ACA
AC Bandwidth 50 – 400Hz
Digital Display TFT Colour LCD Display
Bargraph Yes
Records Events And Trends Yes
Data Logging Yes
Bluetooth Bluetooth 4.0
Non-Contact Voltage (NCV) Yes
Overrange Indication Yes
Continuity Yes
Diode Test Yes
Jaw Size 33mm
Input Impedance >10MΩ DCV & >10MΩ VAC
Low Frequency Input Yes
Min Max Yes
Peak Hold Yes
Data Hold Yes
Back Light Yes
Enclosure Double injection moulding
Low Battery Indication Yes
Batteries 3 x AAA
Weight 350g
Dimensions 250 x 78 x 40mm
Safety Specs IEC61010-1 CAT IV 600V

Safety Ratings



Accessories

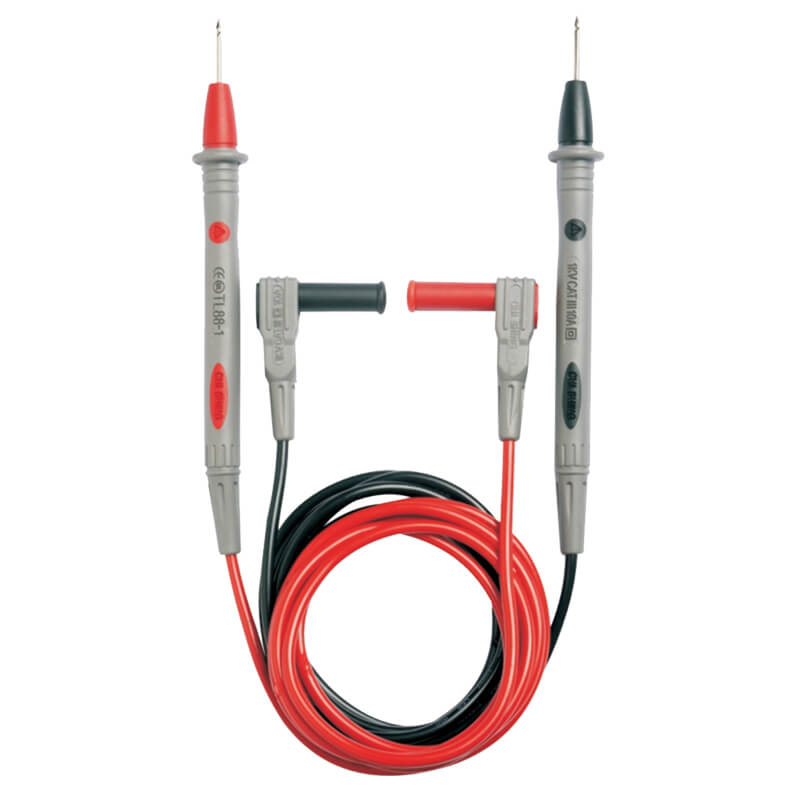

Test Leads

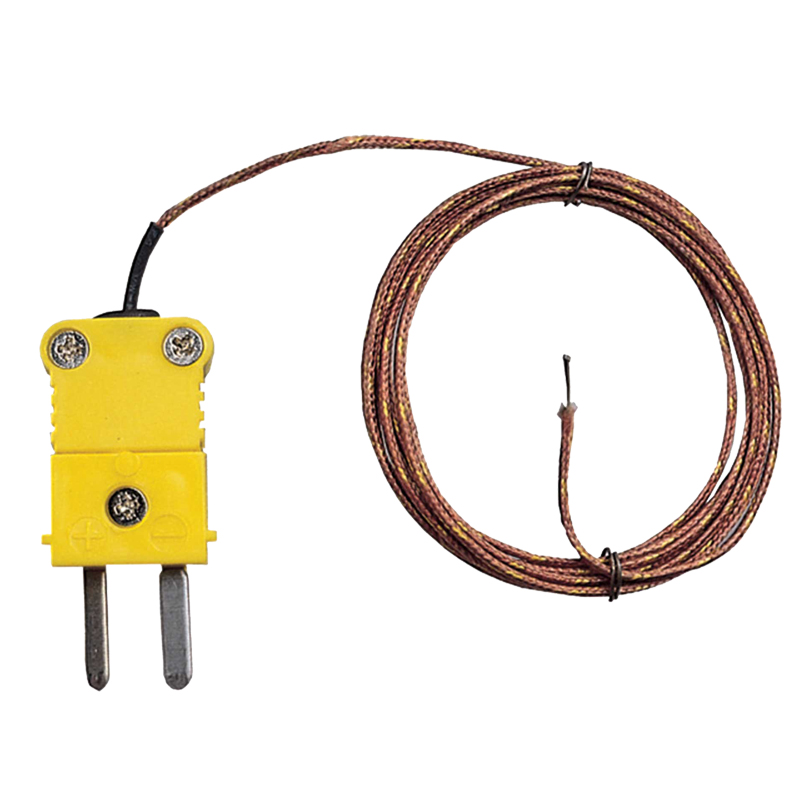

Type-K Wire Probe

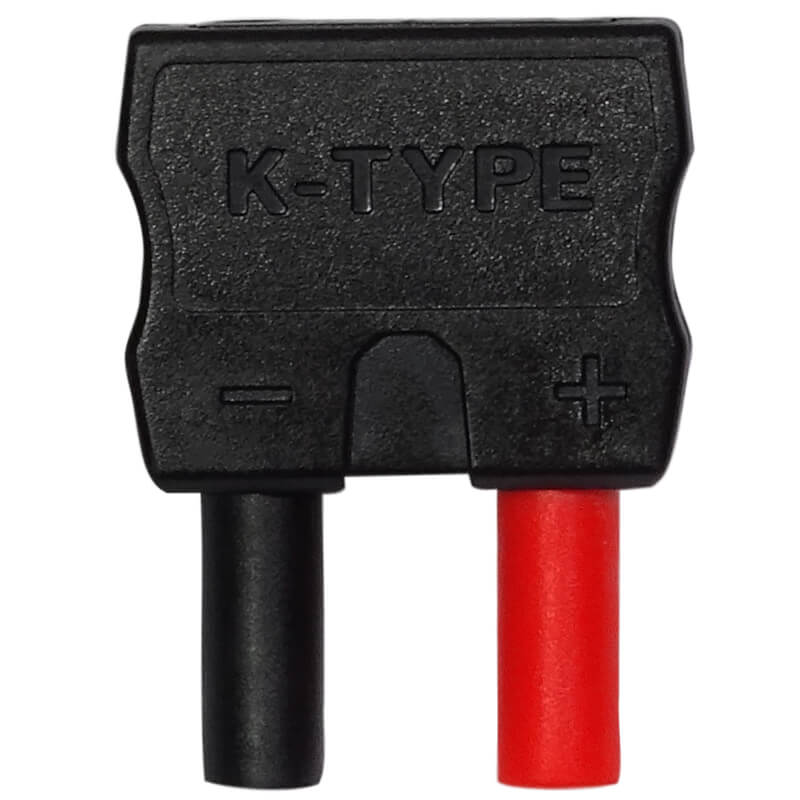

Type-K Adaptor

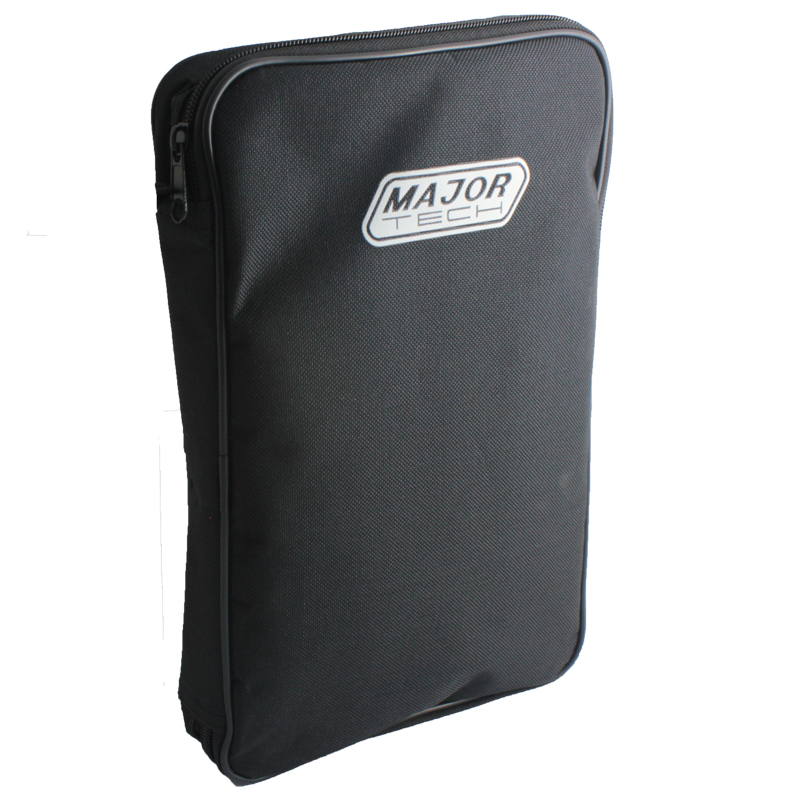

Carrying Case

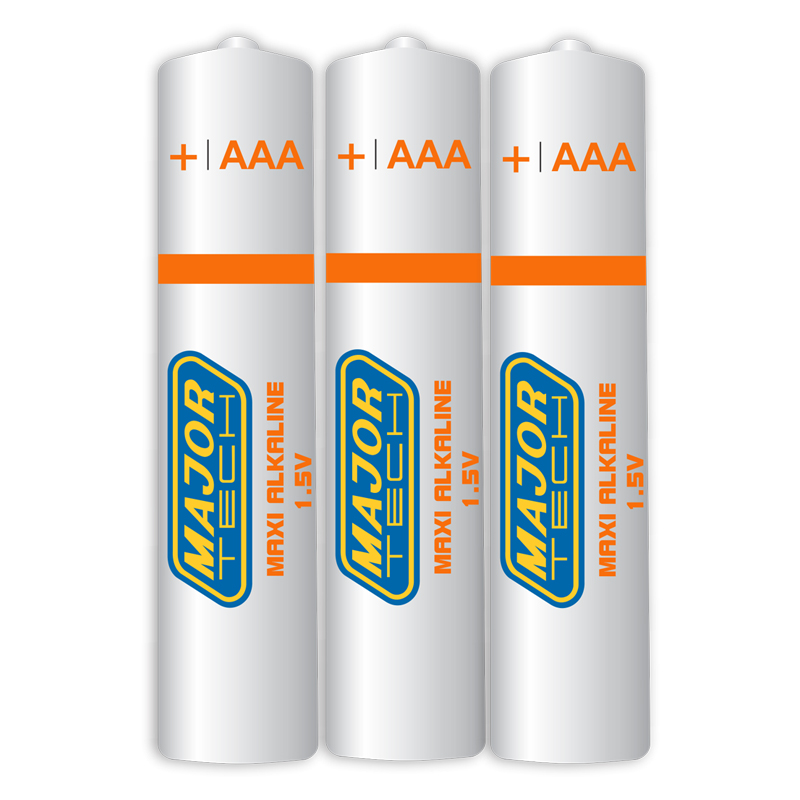

3 x AAA Batteries
Instruction Manual
